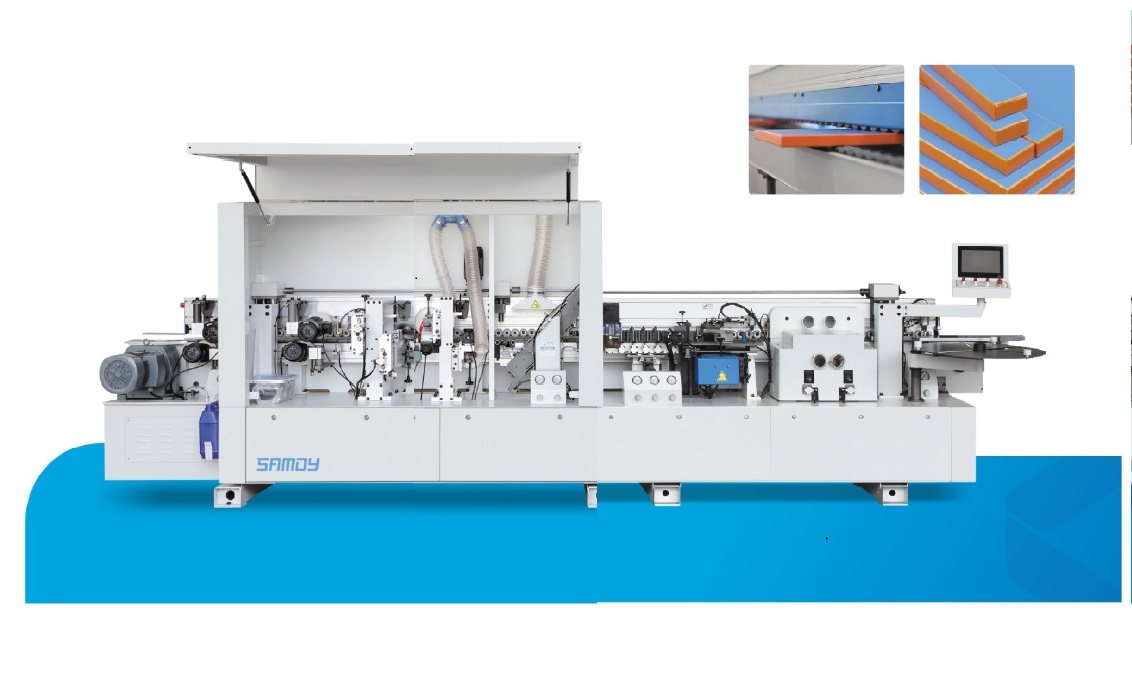

China automatic edge banding machine 365J

Cost-Effective China Automatic Edge Banding Machine SV-365J with Pre-Milling

SV-365J

The SV-365J China automatic edge banding machine is a compact and cost-effective solution for straight edge banding of MDF, particleboard, plywood and other compatible wood-based panels.

Designed for small and medium-sized furniture manufacturers, the SV-365J integrates electric-lifting pre-milling, gluing, pressing, end cutting, fine trimming, scraping, spray cleaning and dual buffing into one automatic edge banding process.

The machine has a compact footprint of 4500 × 1000 × 1600 mm, making it suitable for furniture workshops that need automatic edge banding while keeping workshop space requirements under control.

The SV-365J supports workpieces with a thickness of 10–60 mm and edge banding materials from 0.3–3 mm. Compatible edge materials include PVC, ABS, melamine and wood veneer, subject to the selected adhesive and machine configuration.

The standard machine uses an EVA hot melt gluing system. PUR gluing and pneumatic adjustable cutter tooling are available as optional configurations.

Technical Specifications

Item	Technical Parameter
Model	SV-365J Automatic Edge Banding Machine
Min Workpiece Size	Length ≥200mm, Width ≥60mm
Workpiece Thickness	10–60mm
Edge Tape Thickness	0.3–3mm (PVC/ABS/Melamine/Veneer)
Working Air Pressure	0.7Mpa
Total Power	12.5KW
Machine Dimension	4500×1000×1600mm
Net Weight	1000KG
Standard Functions	Premilling(Electric Lifting) → Gluing → End Cutting → Fine Trimming → Flat Scraping → Spray Cleaning → Dual Buffing
Standard Configuration	Taiwan Shilin PLC/Touch Screen/Inverter, Schneider Contactor, Dual 2.2KW Premilling Motor, Dual 0.75KW Trimming Motor, Dual 0.37KW Buffing Motor, 3 Metal+1 Rubber Press Rollers
Optional Upgrade	PUR Gluing System, Pneumatic Adjustable Cutter

function

1. Electric-Lifting Pre-Milling

The pre-milling unit prepares the panel edge before gluing. The electric-lifting structure allows the pre-milling system to be adjusted according to the processing requirement.

2. EVA Hot Melt Gluing

The standard configuration uses an EVA hot melt adhesive system to bond compatible edge banding materials to the panel edge.

3. Pressing

The pressing section uses multiple rollers to apply pressure after gluing and help maintain contact between the edge banding material and panel edge.

4. End Cutting

The end-cutting unit cuts the edge banding material at the front and rear ends of the workpiece.

5. Fine Trimming

The fine-trimming unit removes excess edge material and produces the required upper and lower edge profile.

6. Flat Scraping

The scraping unit removes remaining glue lines and trimming marks from the finished edge.

7. Spray Cleaning

The cleaning section is used after the scraping process to help clean the processed edge.

8. Dual Buffing

Two buffing motors provide the final polishing and finishing process for compatible edge banding materials.

Description

The SV-365J is a compact automatic straight edge banding machine with pre-milling, designed mainly for cabinet, wardrobe, office furniture and other panel furniture production.

Its standard process includes:

Pre-Milling → Gluing → Pressing → End Cutting → Fine Trimming → Scraping → Spray Cleaning → Dual Buffing

Unlike higher-configuration edge banding machines such as the SV-668J, the SV-365J does not include a corner-rounding tracking module. Its focus is straight edge banding with a compact machine structure and practical configuration.

Edge Banding Materials

The SV-365J is designed to process compatible edge banding materials including:

PVC edge banding
ABS edge banding
Melamine edge banding
Wood veneer edge banding

The actual adhesive and material compatibility should be confirmed according to the selected machine configuration.

Panel Materials

The machine is suitable for compatible wood-based panels such as:

MDF
Particleboard
Plywood
Other compatible furniture panels

Use Scenarios

Cabinet Furniture

The SV-365J can be used for straight edge banding of cabinet side panels, doors, shelves and other compatible components.

Wardrobe Manufacturing

Suitable for wardrobe panels, shelves, side panels and other straight-edge furniture components.

Kitchen Furniture

The machine can be used for straight edge processing of compatible kitchen cabinet panels and components.

Office Furniture

Suitable for office desks, cabinets, storage units, partition panels and other panel-based furniture.

Customized Furniture Workshops

The compact machine structure makes the SV-365J suitable for customized furniture manufacturers handling different panel specifications and production batches.

Small and Medium Furniture Factories

The SV-365J is particularly suitable for manufacturers looking for an automatic edge bander with pre-milling without moving directly to a larger multi-function edge banding system.

Key Features

Compact Machine Footprint

The SV-365J measures approximately 4500 × 1000 × 1600 mm, providing a compact automatic edge banding solution for workshops where available floor space is an important consideration.

Standard Pre-Milling

Electric-lifting pre-milling is included in the standard configuration. It prepares the panel edge before gluing.

Straight Edge Banding Configuration

The SV-365J is designed for straight edge banding rather than 45-degree bevel edge banding or corner-tracking edge banding.

10–60 mm Panel Thickness

The machine supports compatible workpieces from 10 to 60 mm thick.

0.3–3 mm Edge Banding Material

The standard specification supports edge banding material with a thickness range of 0.3–3 mm.

Practical Configuration for Small and Medium Furniture Factories

The machine combines the main edge banding processes in a relatively compact body, making it suitable for small and medium furniture production.

Optional PUR Gluing

A PUR gluing system can be selected as an optional configuration when required by the production process.

Optional Pneumatic Adjustable Cutter

Pneumatic adjustable cutter tooling is available as an optional upgrade for customers who need easier cutter adjustment for different edge banding thicknesses.

FAQ

What is the SV-365J used for?

The SV-365J is used for automatic straight edge banding of MDF, particleboard, plywood and other compatible furniture panels.

What is the main advantage of the SV-365J?

The machine combines pre-milling, gluing, pressing, end cutting, fine trimming, scraping, cleaning and buffing in a compact automatic edge banding system.

Does the SV-365J have pre-milling?

Yes. Electric-lifting pre-milling is included in the standard configuration.

What edge banding materials can it process?

The machine can process compatible PVC, ABS, melamine and wood veneer edge banding materials.

Does SV-365J have corner rounding?

No. The SV-365J is designed for straight edge banding and does not include the corner-rounding tracking module used on the SV-668J.

What is the difference between SV-365J and SV-X368J?

SV-365J is designed for straight edge banding. SV-X368J is designed for 45-degree bevel and miter edge banding.

Can the machine be customized?

Optional configurations such as PUR gluing and pneumatic adjustable cutter tooling can be discussed according to the customer’s production requirements.

what's delivery time and warranty of SV-365J?

Delivery time is 30 days after receiving deposit.
Warranty is 12 months after shipment.

Touch screen

Shilin Brand from Taiwan China

Shilin Brand From Taiwan China

PLC and Inverter

Taiwan China Shilin Brand

Good quality ensure machine working stable and provide good after sale service.

Famous Brand Contactor

French Schneider brand

Reliability & Durability & Safety.

Gluing

2- layer structure

Double-layer heat dissipation structure reduces glue carbonization by 70%, continuous 12h stable gluing, suitable for daily mass production;

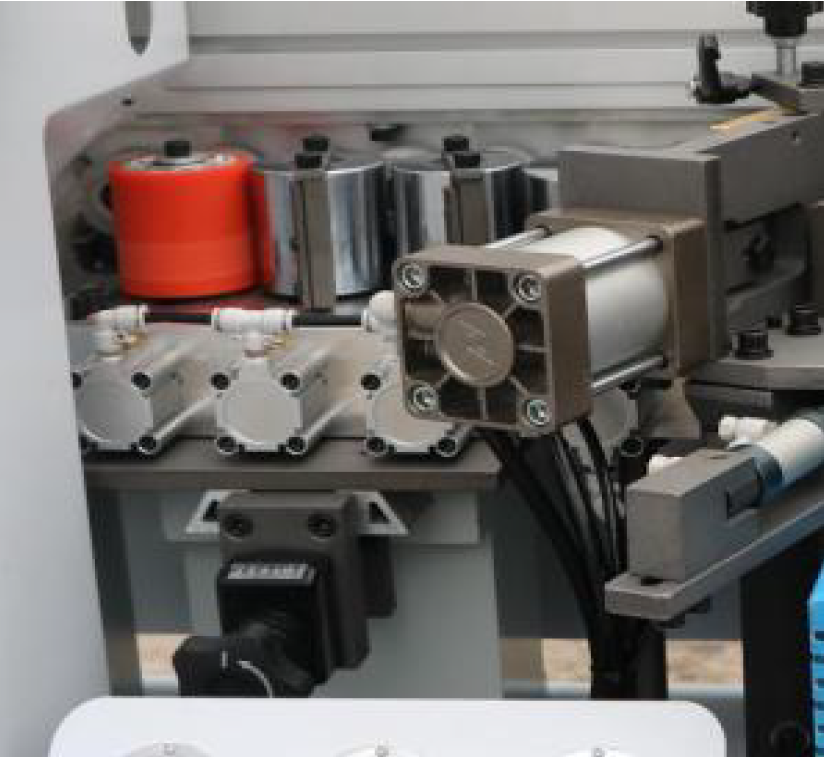

Press Rollers With Scraper

2 metal pressing rollers + 1 rubber roller

Even pressure for thin 0.3mm PVC to thick 3mm melamine tape, no edge warping, no glue gap;

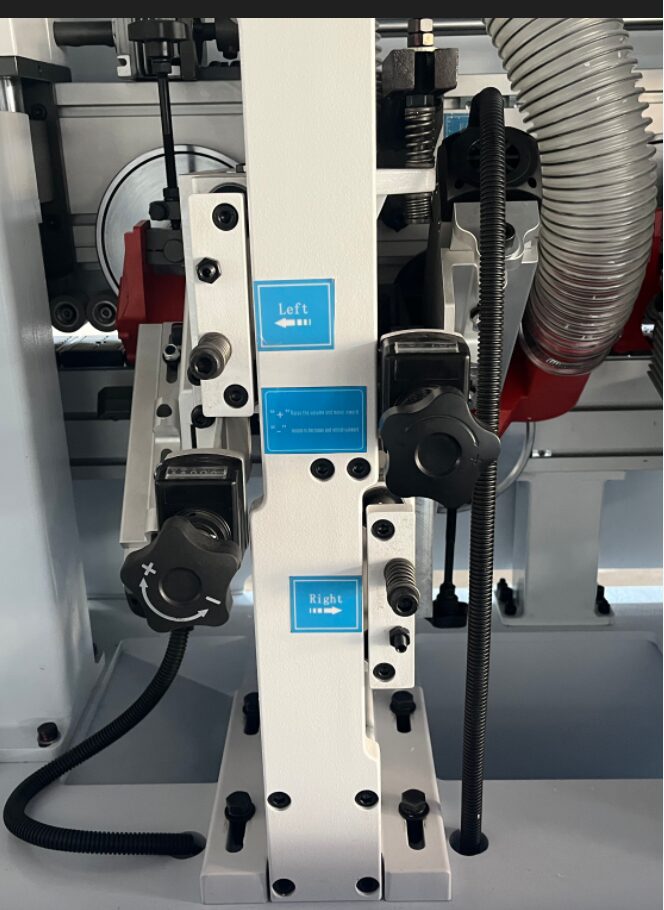

Fine Trimming

"R" cutter fine trimming

The fine trimming function uses an R trimming knife to trim the edge of the board. Fine trimming will also leave a margin for the subsequent scraping function. The two sets of fine trimming are convenient for free switching according to different thicknesses of workpieces.

Using 0.75KW*2 motor.

Buffing

Dual motor buffing

0.37kw*2 motor for buffing gives you a good and clear panels.Whitening edge band will give your furniture good look.

Dual Motors Pre-milling

2.2kw x2 pcs

Dual 2.2KW diamond pre-milling motors: remove 0.3-0.8mm rough edge in one pass, rework rate down from 18% to below 3%

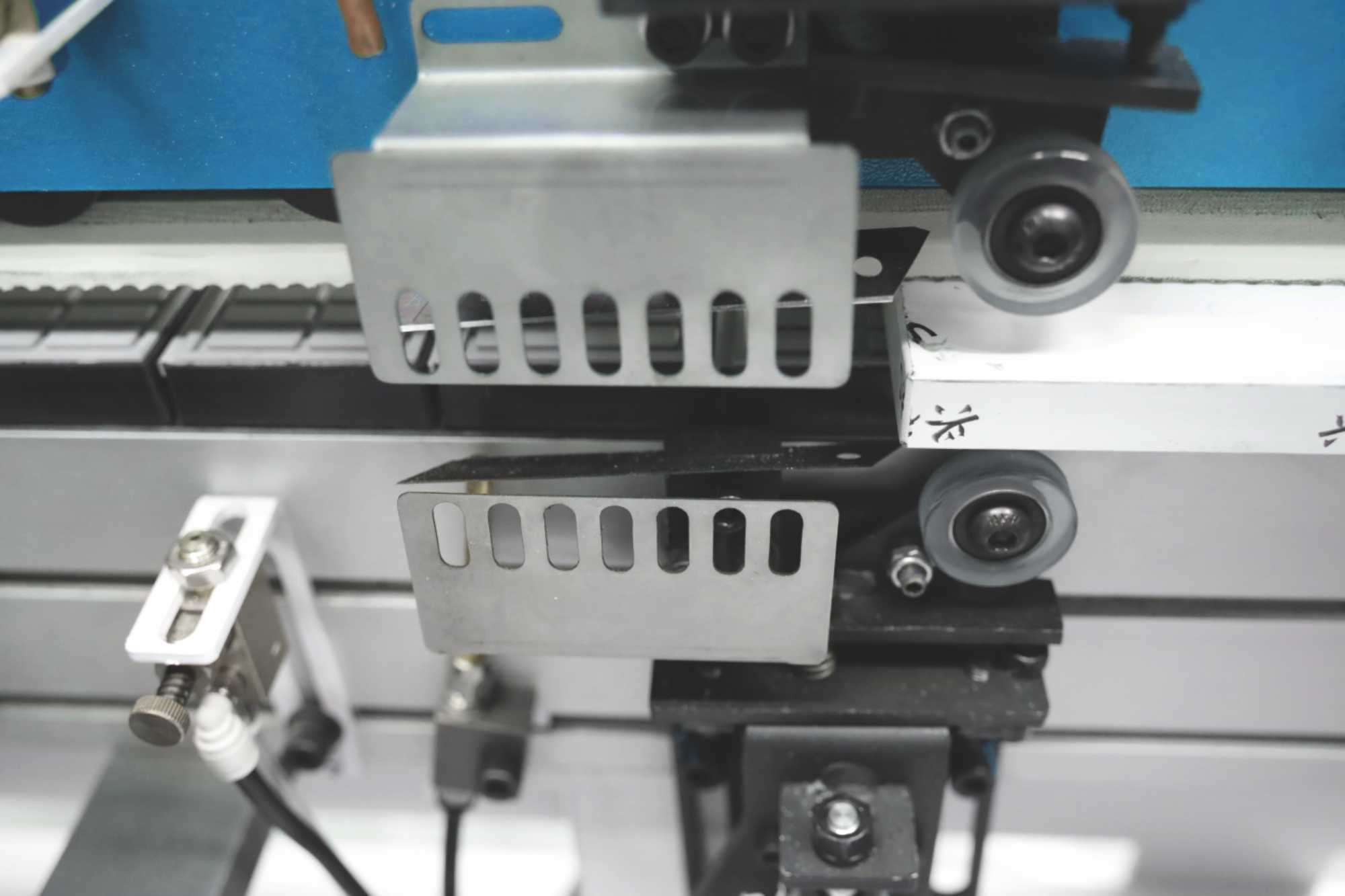

Flat Scraper

Flexible scraper

Remove excess glue lines.

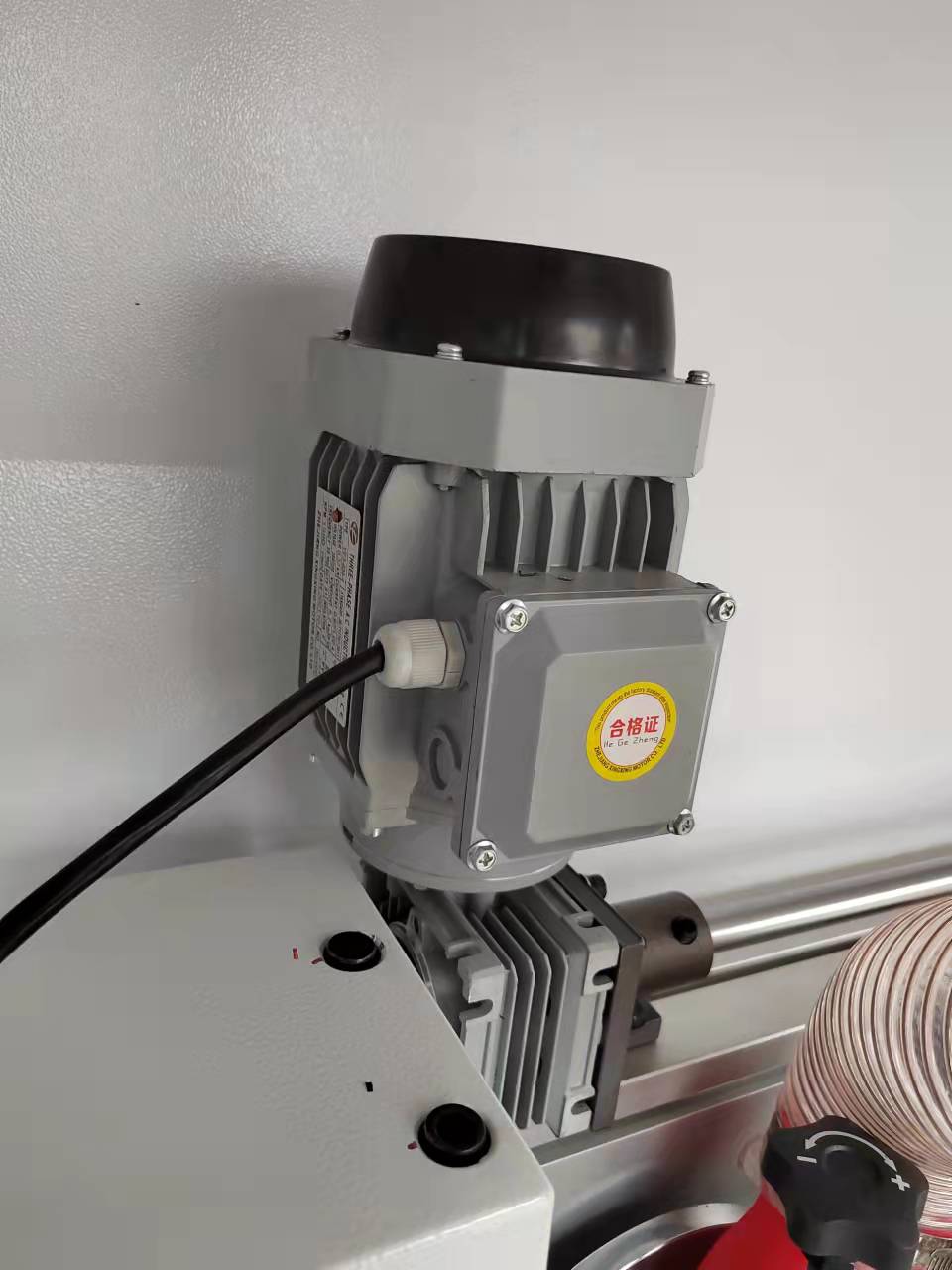

Electric Lifting

Electric lifting pressing beam

Simple operation, save time for you.
