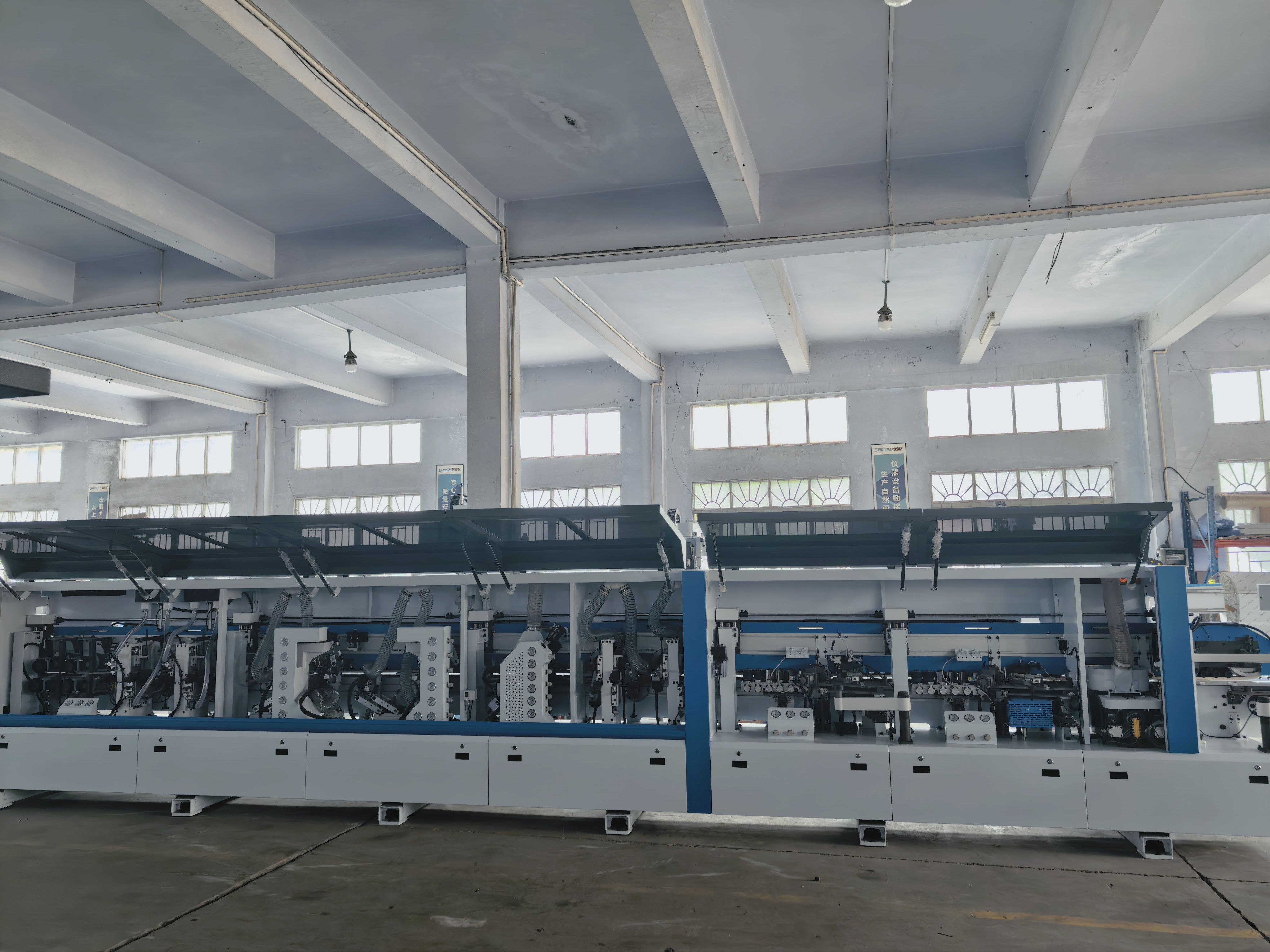

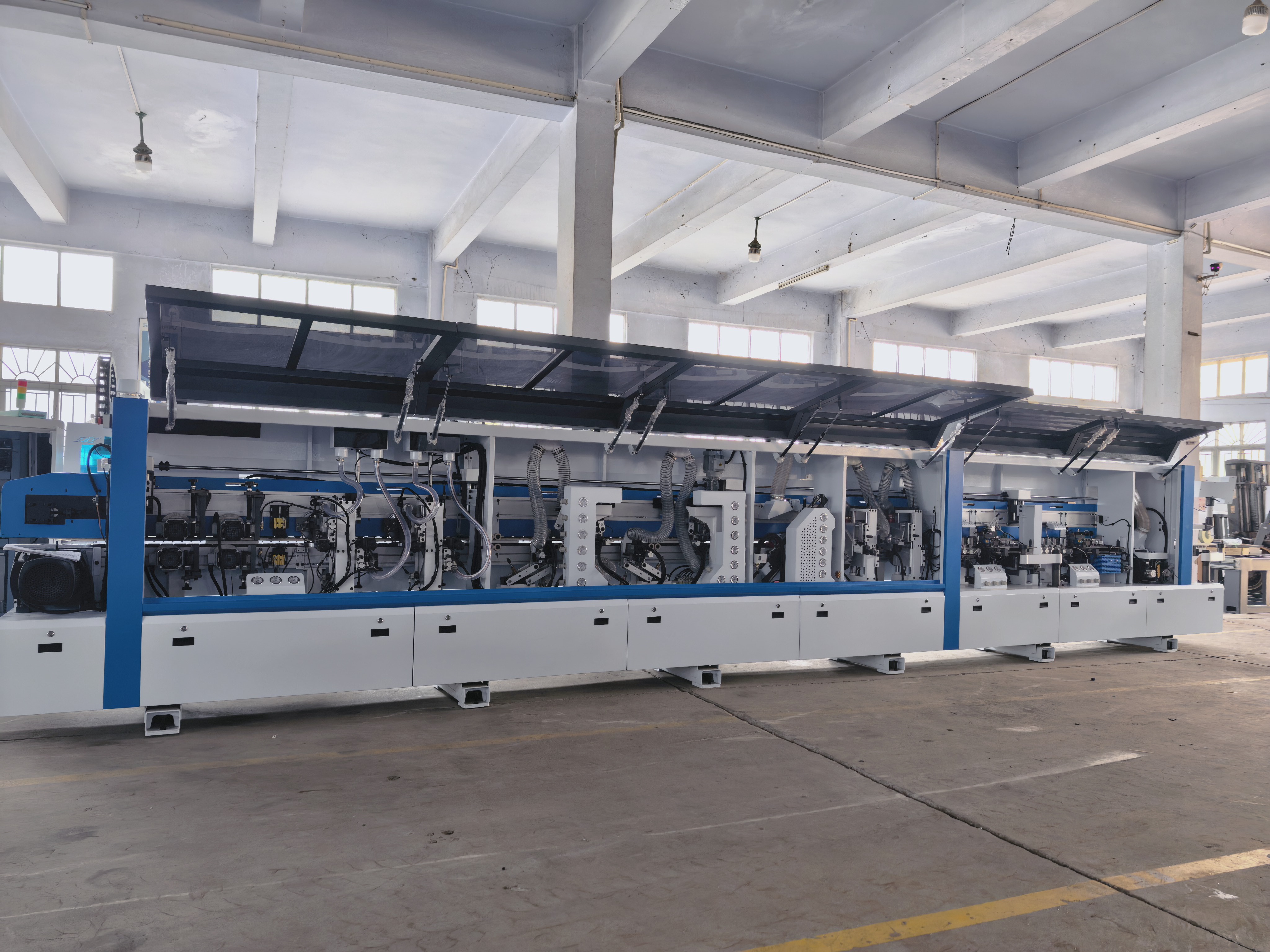

PUR Glue Edge Banding Machine SV-568L With Belt Track Conveyor And 4 Motors Corner Rounding For Aluminum Honeycomb Panel
SV-568L
PUR Glue Edge Banding Machine utilizing a belt conveying system combined with PUR and EVA gluing, the SV-568L performs an integrated process for wood panels and aluminum honeycomb panels — pre-milling, gluing, double trimming, four-motor corner rounding and polishing — firmly bonding edge bands with crack and water resistance.
Technical Specifications
| Specification | SV-568L |
|---|---|
| Model | SV-568L |
| Working Length | ≥200 mm |
| Working Width | ≥60 mm |
| Working Thickness | 10–60 mm |
| Working Tape Thickness | 0.4–3 mm |
| Compatible Edge Bands | PET, Acrylic, Veneer, PVC |
| Glue Type | EVA Glue and PUR Glue |
| Working Pressure | 0.7 MPa |
| Working Speed | 14 / 18 / 23 m/min |
| Power Supply | 380 V / 50 Hz / 3 Phase |
| Optional Voltage | 415 V / 220 V / 480 V |
| Total Power | 26 kW |
| Dust Collector Quantity | 8 pcs |
| Machine Dimensions | 10500 × 1000 × 1600 mm |
| Machine Weight | 3000 kg |
function

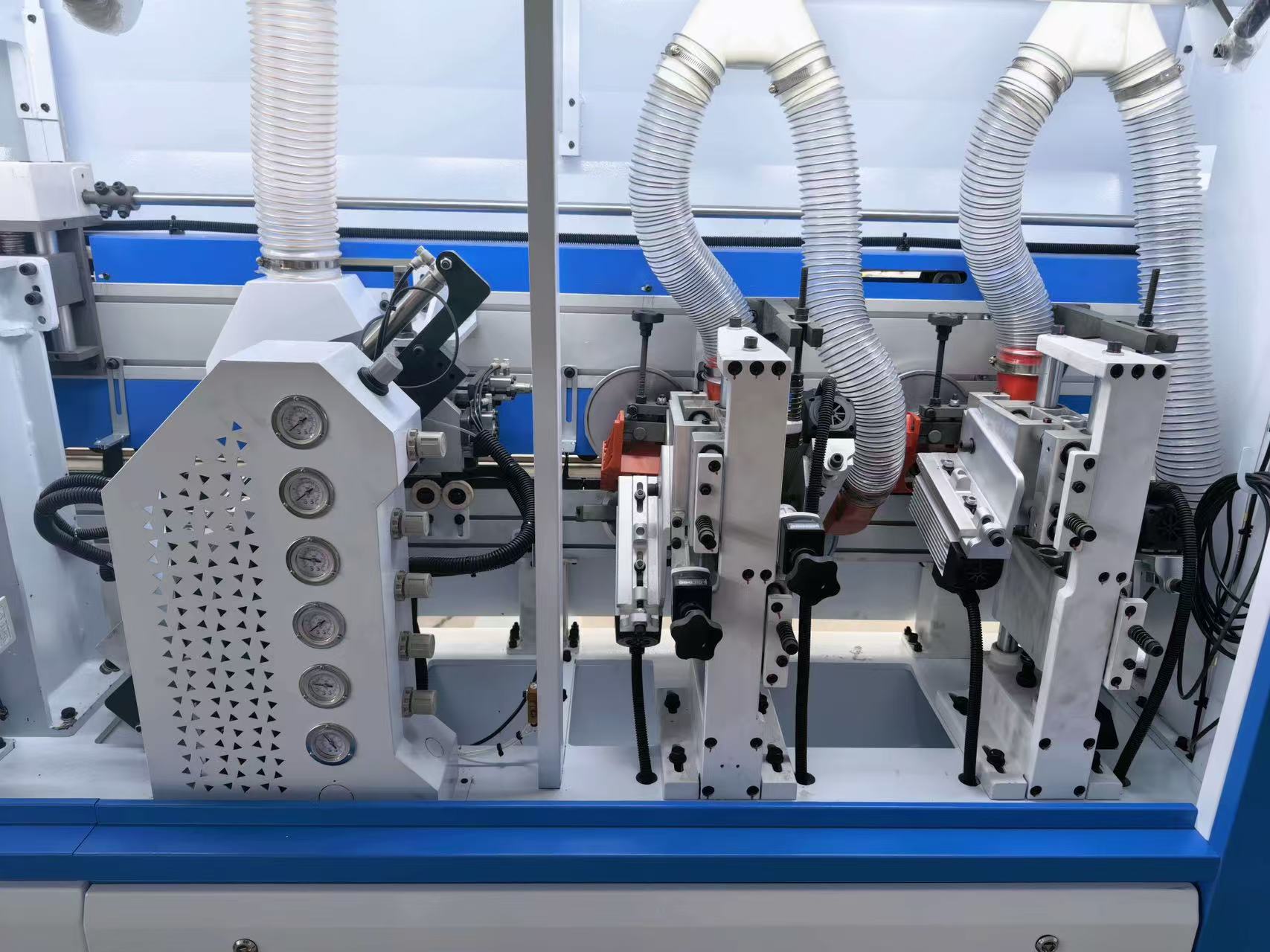

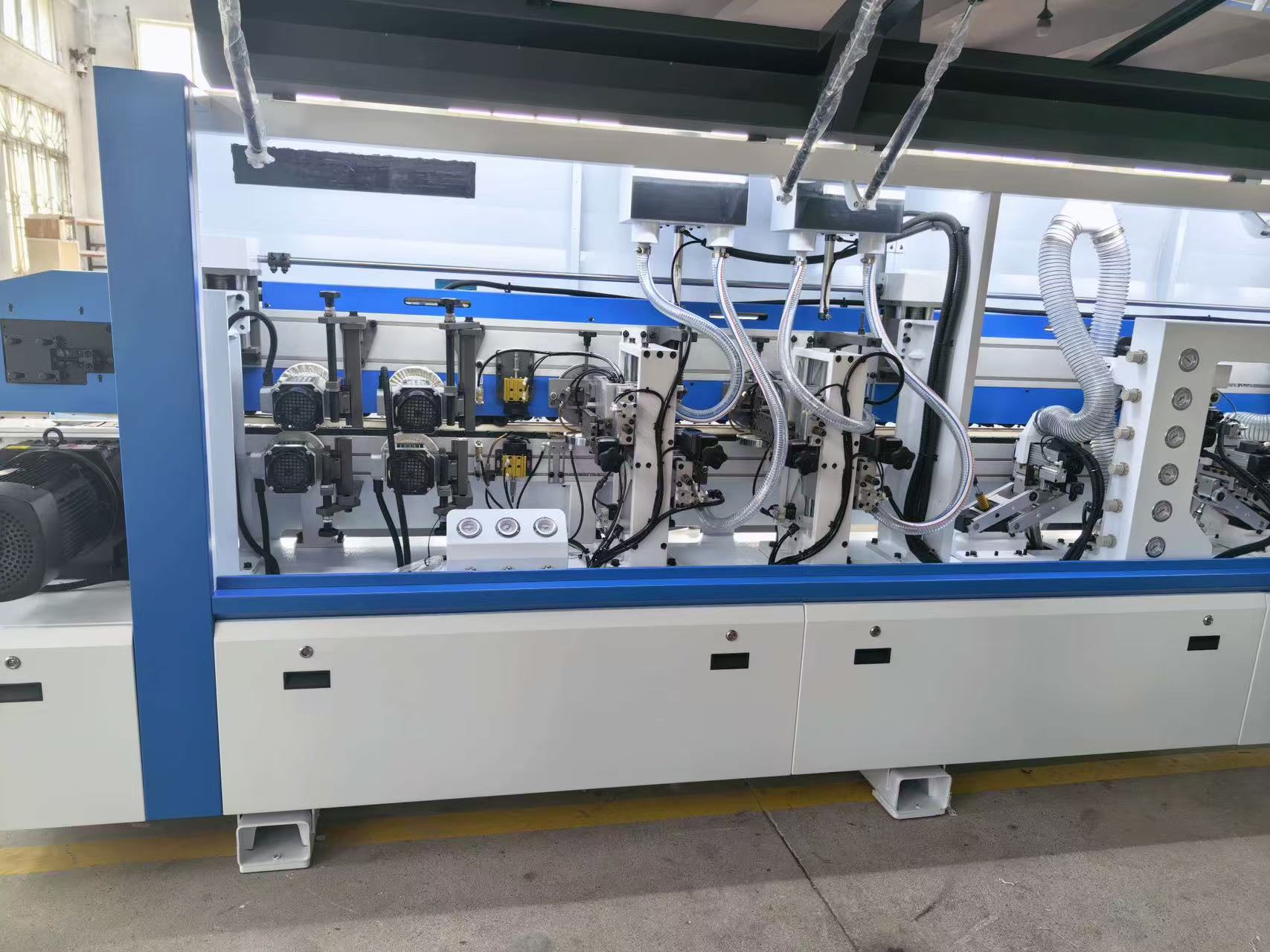

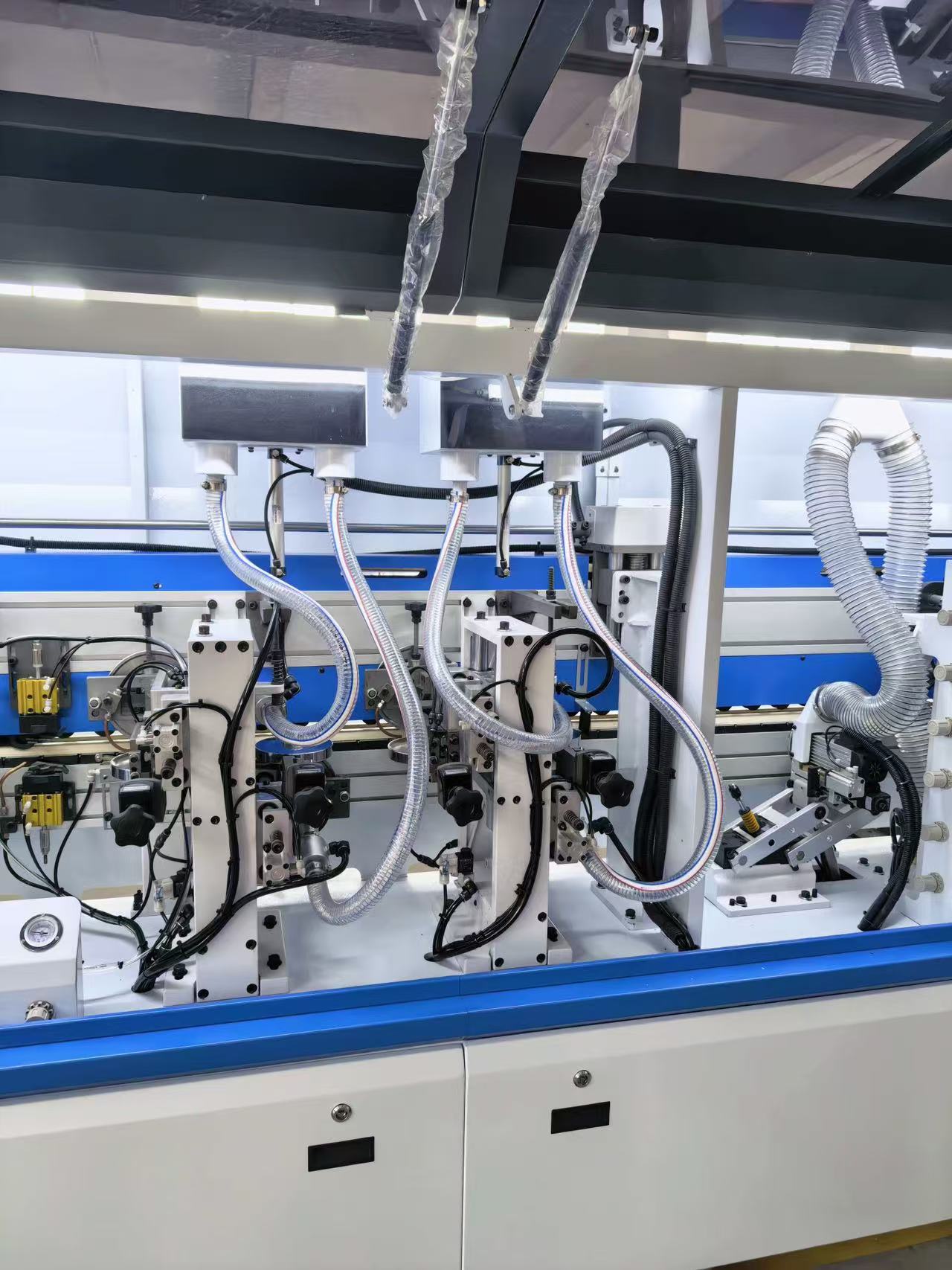

Spray cleaning- premilling- pre-heating -PUR gluing with PUR melt machine -6 pressing rollers-EVA gluing (bottom normal gluing pot)-6 pressing rollers-rough trimming- fine trimming -end cutting-4 heads corner rounding- scraping 1-scraping 2 -flat scraping-Spray cleaning-buffing 1-buffing 2
Process Efficiency Data: One machine completes 12 edge working procedures, 1 machine can be used for 2 type glue, machine cost cut by 50%.
share:
Description
PUR glue edge banding machines are suitable for high-end customization and high-gloss door panels. If you want fast speed, beautiful finished products, and less after-sales service, choose it.
PUR Glue Line Thickness 0.03–0.05mm 0.12–0.2mm Near invisible seam, higher product selling price.
Bonding Strength 2–3× EVA strength Standard bonding No delamination for long-term use.
Temperature Resistance -30℃ ~ 120℃ 0℃ ~ 60℃ Suitable for global hot/cold climate export.
Waterproof Performance Pass 72h soaking test Peel after 12h soaking Safe for kitchen & bathroom products.
Use Scenarios
Whole-House Custom Furniture:
It is suitable for cabinets, wardrobes, bathroom vanities, and balcony storage units, especially furniture exposed to moisture or frequent water contact.
PUR edge banding helps improve moisture resistance and bonding performance, potentially reducing edge-banding failures and after-sales repair costs. Based on verified customer data, the after-sales repair rate decreased by 68% after adopting PUR edge banding based on customer production data.
High-End Door Panels:
High-gloss PET/acrylic door panels, solid wood door panels, and paint-free decorative door panels.
Office & Commercial Furniture:
Office desks, filing cabinets, display cases, as well as furniture for hotels and healthcare facilities,service life extended 3 times.
Interior Decoration Projects:
High-end interior fit-out projects involving fixed furniture, wood paneling, interior doors, cabinet finishing, and trim work.
In Summary:
PUR Track-Type Edge Banding combines high strength, water resistance, aesthetic appeal, stability, and eco-friendliness, making it the leading standard process for mid-to-high-end custom furniture manufacturing.
Key Features
Extremely Strong Bonding:
PUR adhesive cures via moisture reaction and forms an irreversible bond; its bonding strength is approximately 2–3 times that of EVA adhesive. It withstands extreme temperatures (-30°C to 120°C) and ensures long-term adhesion without delamination.
Waterproof & Moisture-Resistant:
The adhesive layer is dense and impermeable, making it the preferred choice for high-humidity environments such as kitchens, bathrooms, and balconies.
Seamless Aesthetics:
The glue line is a mere 0.03–0.05 mm thick—nearly invisible—resulting in a clean finish with no glue squeeze-out or unsightly dark lines.
Eco-Friendly & Low-Formaldehyde:
Formaldehyde-free PUR adhesive, suitable for E0-grade panel furniture production.
Durable & Weather-Resistant:
Resists thermal cycling and aging, offering a long service life and a low rework rate.
Wide Material Compatibility:
Compatible with a broad range of materials, including MDF, multi-layer plywood, particleboard, solid wood panels, aluminum honeycomb panels, PET, acrylic, and more.
FAQ
What is the SV-568L?
The SV-568L is an automatic edge banding machine with EVA and PUR dual gluing, belt track conveying and four-motor corner rounding. It is designed for wood-based furniture panels and compatible aluminum honeycomb panel applications.
What is the maximum speed of SV-568L?
The specified working speeds are 14, 18 and 23 m/min.
Can SV-568L process aluminum honeycomb panels?
Yes. The machine is specifically configured for compatible aluminum honeycomb panel edge banding applications and uses a belt track conveyor, PUR gluing and four-motor corner rounding.
Can SV-568L use both EVA and PUR glue?
Yes. The machine uses separate EVA and PUR gluing systems according to the selected configuration.
Why use PUR glue for aluminum honeycomb panels?
PUR hot-melt adhesive provides strong bonding and good resistance to moisture and temperature changes when the adhesive is properly matched to the panel and edge material.
What is the purpose of the belt track conveyor?
The belt track conveyor provides continuous downward pressure and stable conveying while the panel passes through the edge banding machine.
Is SV-568L suitable for high-volume production?
The automatic multi-stage configuration and maximum working speed of 23 m/min make it suitable for continuous panel production, subject to the material, edge banding process and production requirements.
Can I customize the machine configuration? What optional parts are available?
Customization is supported. Optional upgrades: automatic return line conveyor system, add more function unit, customized voltage for different countries (380V/415V/220V).

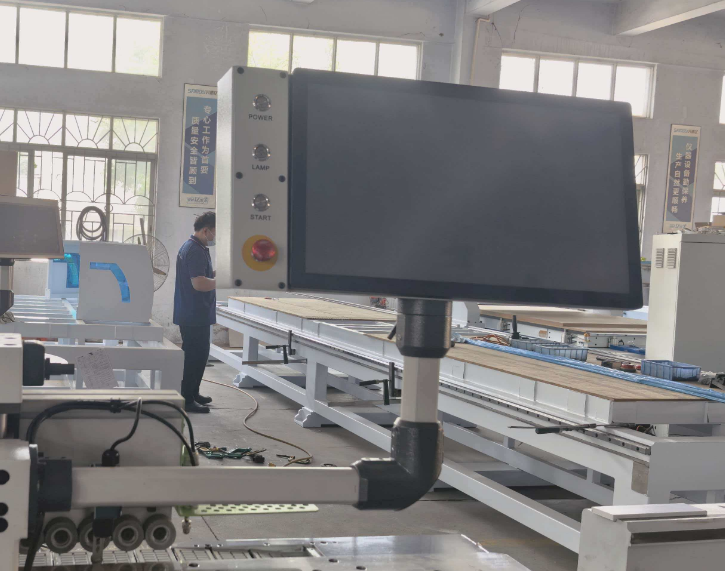

Touch screen
Large size
Normally standard touch screen size is 7 inch, 15 inch size screen ensure operating easier.
Belt track conveyor
Properly pressing panels
The track mechanism provides consistent downward pressure on the workpiece, enabling high-speed operation (up to 23 m/min) without deviation, ensuring uniform pressing and stable processing for both large panels and thin boards,suitable for aluminum honeycomb panels.

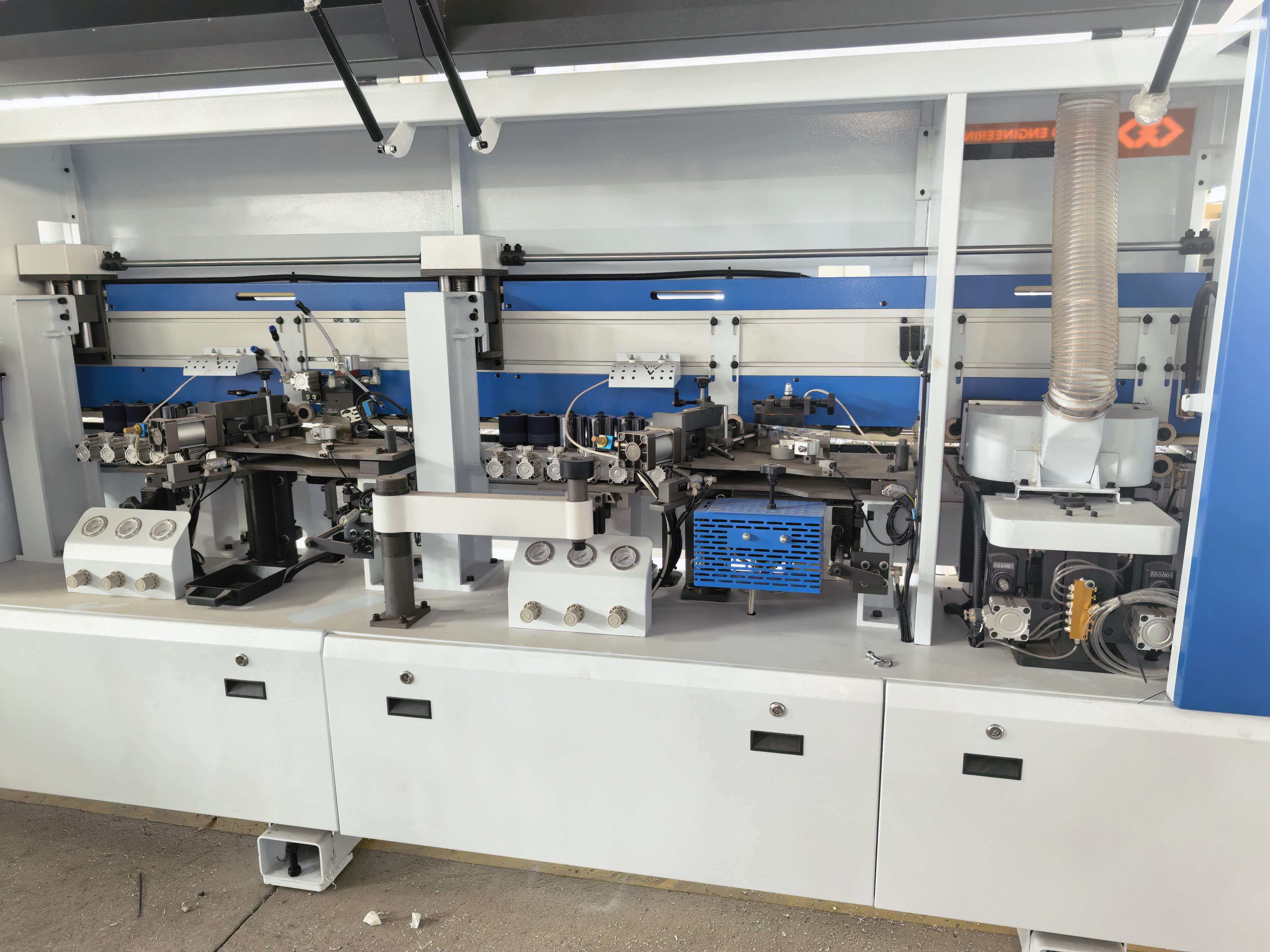

Double gluing tank
EVA gluing +PUR gluing ( Two-in-One)
EVA glue → conventional wood furniture panels
PUR glue → applications requiring stronger moisture resistance / aluminum honeycomb panels
Separate glue systems → reduces the need to repeatedly change adhesive type
Supports different production requirements on one machine
4 motors corner rounding
Properly for aluminum honeycomb panels and wood panels
1. Independent tracking in all directions for perfect edge trimming:
Four motors independently control the top, bottom, left, and right tracking directions.
Irregularly shaped boards, curved boards, and the four corners of the boards achieve smoother, rounded edges without chipping or scraping.
2. Balanced tracking force, preventing board clamping or edge chipping:
Four motors provide synchronized four-point pressure tracking, ensuring uniform pressure and a tight, seamless fit for both thin and thick edge banding strips without any gaps or detachment.
3. Smoother board passage, less prone to deviation.finished corner consistency rate reach 99.8%.
Perfect corner rounding
Good trimming effects
Perfect wood panels corner rounding effects.
Perfect edge banding effect on aluminum panels
Good trimming effects
Perfect aluminum honeycomb panels corner rounding effects.
