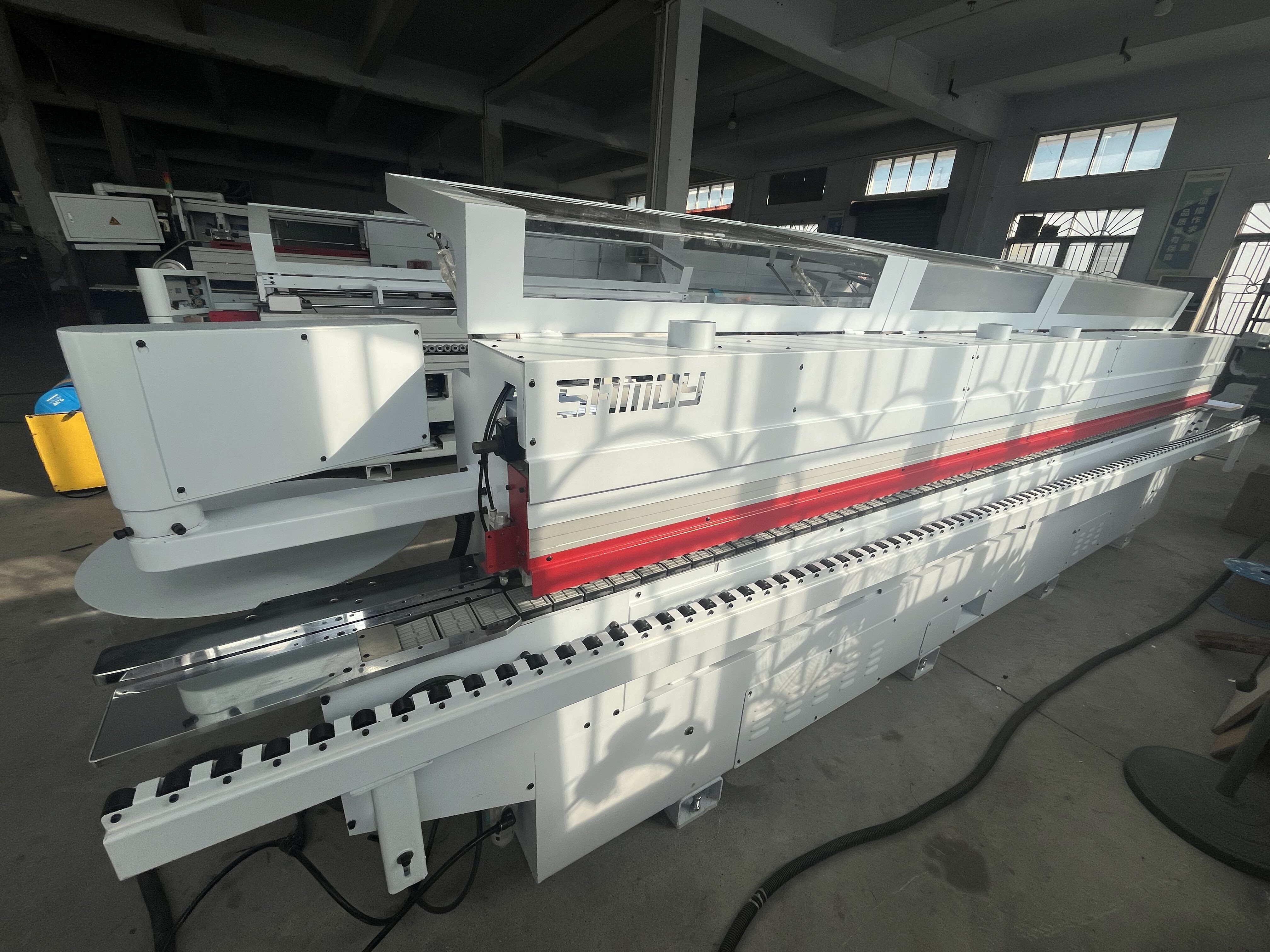

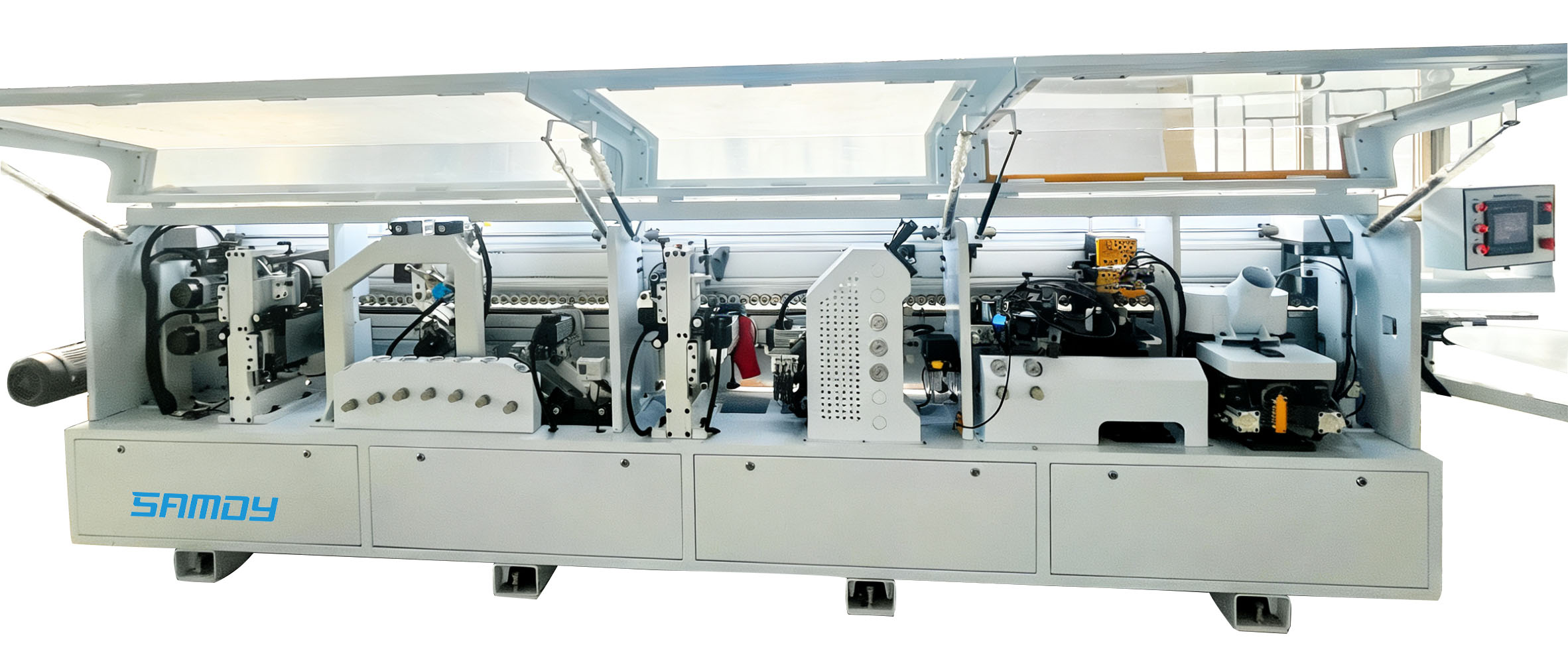

SV-268J Economical Edge Banding Machine with Pre-Milling and Corner Rounding

SV-268J

The SV-268J is an economical and compact edge banding machine designed for small and medium-sized furniture factories, woodworking workshops and customized furniture production. It combines pre-milling, gluing, end trimming, fine trimming, corner rounding, scraping, cleaning and buffing in one machine.

With a compact machine body and a working speed of 10 m/min, the SV-268J provides a practical solution for manufacturers who need professional edge finishing while controlling equipment cost, workshop space and shipping expenses. It is suitable for MDF, particleboard, plywood and solid wood panels, and can process PVC, ABS and solid wood edge banding materials.

Technical Specifications

Specification	Details
Workpiece Length	≥200 mm
Workpiece Width	≥60 mm
Workpiece Thickness	10–60 mm
Edge Banding Thickness	0.3–3 mm
Working Speed	10 m/min
Working Air Pressure	0.7 MPa
Total Power	14 kW
Machine Weight	850 kg
Machine Dimensions	5100 × 1000 × 1200 mm

function

1. Pre-Milling

The pre-milling unit removes minor saw marks and unevenness from the panel edge before gluing, creating a smoother surface for stronger edge band adhesion.

2. Gluing

The EVA hot-melt gluing unit applies adhesive evenly to the panel edge before the edge band is pressed into position.

3. End Trimming

The end trimming unit automatically removes excess edge band material from the front and rear of the panel.

4. Fine Trimming

The fine trimming unit removes excess material from the top and bottom edges to achieve a cleaner finished surface.

5. Corner Rounding

The two-head corner rounding system follows the panel edge to process rounded corners and create a smoother edge profile.

6. Scraping

The scraping unit removes fine trimming marks and improves the appearance of the finished edge.

7. Cleaning and Buffing

The cleaning and buffing units remove residual material and improve the final appearance of the edge.

Description

The SV-268J is a more compact and economical version of the SV-465J. It retains the essential edge banding functions required for professional panel furniture production while using a shorter machine body to reduce workshop space and shipping requirements.

This makes the SV-268J a practical option for small and medium-sized furniture factories, woodworking workshops and manufacturers with limited production space or a controlled equipment budget.

• Edge banding tape: PVC, ABS, solid wood veneer, acrylic, thickness 0.4–1.5mm.

Main function: To seal the edges of boards (such as MDF and particleboard), making them moisture-proof, aesthetically pleasing, and environmentally friendly.

• Core advantages:

• Compact size: Small footprint, especially suitable for factories or on-site construction with limited space.

• High cost-effectiveness: Much cheaper than large equipment, yet achieves rapid preheating and precise edge trimming, ensuring bonding strength.

• Flexible operation: Usually requires only one person to operate; some models can also perform curved edge sealing.

Use Scenarios

Cabinet Manufacturing

Suitable for edge banding cabinet panels, doors, shelves and side panels made from MDF, particleboard and plywood.

Wardrobe Production

The pre-milling and corner rounding functions are suitable for wardrobe panels and customized storage furniture.

Customized Furniture

Suitable for small-batch and multi-size production where flexibility and equipment cost are important considerations.

Office Furniture

Can be used for desks, cabinets, shelves, partitions and other panel-based office furniture.

Small and Medium Furniture Factories

The compact footprint makes the SV-268J suitable for factories and workshops with limited production space.

Key Features

1. Compact Structure, Space Saving

· save space and freight cost for you.Machine size is 5100*500*1200mm,one container can load 8 machines.

2. High Degree of Automation

· Equipped with a PLC control system, operation is simple, and manual intervention is reduced.

3. High Cost-Effectiveness

· Compared to large fully automatic edge banding machines, the price is more affordable, making it suitable for small and medium-sized furniture factories.Taiwan Shilin PLC,Taiwan Shilin Inverter ,Taiwan Shilin touch screen and Schneider contactor to ensure machine working stable.

4. High Flexibility

· Can quickly switch between edge banding strips of different thicknesses and materials, adapting to multi-variety, small-batch production.

5. Stable Edge Banding Quality

· Equipped with pre-milling and trimming units to ensure smooth, glue-free, and burr-free edge banding.It has corner rounding functions also.

6.Economical price.

.Price is lower much than the normal machine,if you have a limited budget, this is your best option.

FAQ

What is the SV-268J edge banding machine designed for?

The SV-268J is designed for small and medium-sized furniture factories, woodworking workshops and customized panel furniture production.

What is the working speed of the SV-268J?

The standard working speed is 10 m/min.

What edge banding materials can it process?

The SV-268J can process PVC, ABS and solid wood veneer edge banding materials.

What is the machine size?

The machine size is 5000 × 1000 × 1200 mm, subject to final configuration.

What panel thickness can the SV-268J process?

The machine can process panels from 10 to 60 mm thick.

Touch screen

Delta touch screen

Delta and Shilin brands are optional.

PLC and Inverter

Taiwan China Shilin Brand

Good quality ensure machine working stable and provide good after sale service.
Delta brand are optional.

Famous Brand Contactor

French Schneider brand

Reliability & Durability & Safety.

Gluing unit

2- layer structure

It is easy to heat dissipation, good stability, durable.Good structure for EVA hot melt glue.

Premilling unit

With big dust collector cover

The diamond pre-milling unit removes small defects and unevenness left by panel cutting before edge banding. This creates a cleaner and more uniform panel edge, helping improve adhesive contact and the final edge banding quality. The pre-milling unit uses manual lifting adjustment.

Other function

Same as normal machine

End cutting,fine trimming,scraping ,buffing are same as normal machine.

Machine body is shorter,save space and shipping cost for you.

corner rounding

2 heads corner rounding

Two-head tracking corner rounding system for processing rounded panel corners. The dual-motor design follows the panel profile to provide a smoother transition around curved corners, making the machine suitable for cabinets, wardrobes and other customized panel furniture.
