SV-868-PUR-2 Compact PUR Automatic Banding Machine for Aluminum Honeycomb Panels
SV-868-PUR-2

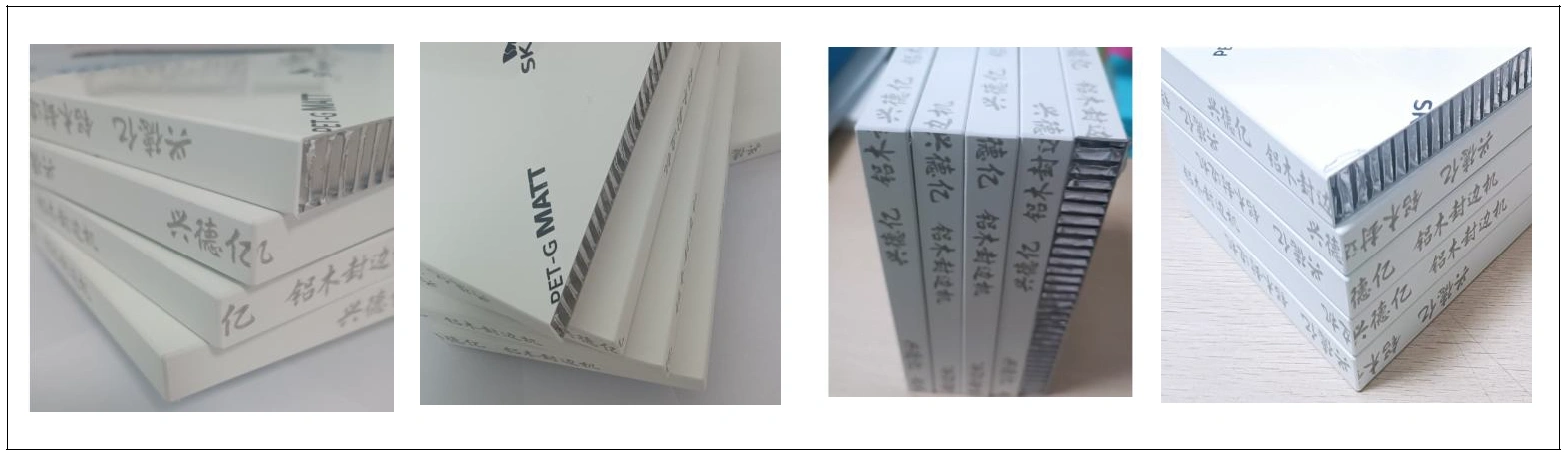

PUR Automatic Edge Banding Machine SV-868-PUR-2 is a compact automatic PUR edge banding machine designed for aluminum honeycomb panels, aluminum furniture panels and lightweight composite panels.
Compared with larger heavy-duty aluminum honeycomb edge banding lines, the SV-868-PUR-2 is with a total power of 23.5 kW and machine dimensions of 11,000 × 1,000 × 1,750 mm, the SV-868-PUR-2 provides a practical solution for manufacturers that need automated aluminum panel edge banding while considering workshop space, equipment investment and overall production requirements.
Technical Specifications
| Specification | SV-868-PUR-2 |
|---|---|
| Machine Type | Compact Automatic PUR Edge Banding Machine |
| Main Application | Aluminum Honeycomb Panels and Aluminum Furniture Panels |
| Minimum Workpiece Length | ≥200 mm |
| Minimum Workpiece Width | ≥80 mm |
| Panel Thickness | 10–60 mm |
| Edge Band Thickness | 0.3–3 mm |
| Working Air Pressure | 0.7 MPa |
| Total Power | 23.5 kW |
| Machine Dimensions | 11,000 × 1,000 × 1,750 mm |
| Pressing Rollers | 6 Rollers |
| Corner Rounding | 4 Heads |
| PUR Glue System | Single-Bucket or Double-Bucket Optional |
function
Spray cleaning- premilling- PUR gluing-6 pressing rollers-Belt pressing-Rough trimming-Fine trimming-scraping 1 -end cutting-4 heads corner rounding-scraping 2-flat scraping-Spray cleaning-Buffing 1-buffing 2
share:
Description
The SV-868-PUR-2 PUR automatic edge banding machine is dedicated pressing structure and flexible pressing belt to provide controlled pressure during processing. This configuration is designed to help reduce excessive pressure on lightweight aluminum honeycomb panels while maintaining stable contact between the edge band and PUR adhesive. It is particularly suitable for:
Aluminum furniture manufacturers
Aluminum cabinet manufacturers
Aluminum honeycomb panel processors
Customized furniture manufacturers
Kitchen and bathroom cabinet manufacturers
Aluminum door and panel manufacturers
Furniture factories with limited workshop space
Manufacturers looking for a compact automatic PUR edge banding solution
It is a practical choice for customers who need complete aluminum honeycomb panel edge processing but do not require the larger configuration of a heavy-duty edge banding line.
Use Scenarios
The SV-868-PUR-2 is suitable for manufacturers of all-aluminum furniture, aluminum cabinets, kitchen cabinets, bathroom cabinets, aluminum doors and other aluminum honeycomb panel products.
All-Aluminum Furniture
The machine can process aluminum honeycomb panels used in all-aluminum furniture production, providing automated edge bonding, trimming, corner rounding and polishing.
Aluminum Cabinet Production
It is suitable for aluminum kitchen cabinets, bathroom cabinets, storage cabinets and other panel-based furniture products.
Customized Aluminum Furniture
For customized furniture manufacturers handling different panel sizes and production orders, the SV-868-PUR-2 provides an integrated edge banding and finishing process.
Aluminum Honeycomb Panel Processing
Panel processors can use the machine to apply edge bands to aluminum honeycomb panels before further assembly or furniture production.
Aluminum Doors and Decorative Panels
The machine can be used for compatible aluminum honeycomb doors, decorative panels and interior products requiring finished panel edges.
Space-Conscious Furniture Workshops
The compact machine structure makes the SV-868-PUR-2 suitable for manufacturers that need an automated edge banding system while making efficient use of available workshop space.
Small-Batch and Flexible Production
The integrated processing system is suitable for manufacturers that need consistent edge finishing across different orders without selecting a larger heavy-duty production line.
Key Features
1. Compact Machine Structure
The SV-868-PUR-2 has a machine length of 11,000 mm, providing a more compact production solution compared with larger aluminum honeycomb panel edge banding lines.
Its compact structure can be useful for manufacturers that need automated edge processing while making efficient use of available workshop space.
2. Lower Total Power Configuration
With a total installed power of 23.5 kW, the SV-868-PUR-2 provides a lower-power configuration than the larger SV-968-PUR-2.
This makes the SV-868-PUR-2 a practical option for manufacturers whose production requirements do not require the larger machine configuration.
3. Complete Edge Banding Process
The machine integrates pre-milling, PUR gluing, pressing, rough trimming, fine trimming, end cutting, corner rounding, scraping and buffing into one automated production process.
4. Flexible Pressing for Aluminum Honeycomb Panels
The dedicated pressing belt is designed to distribute pressure more gently across the panel surface. This is particularly important when processing lightweight aluminum honeycomb panels.
5. Four-Head Corner Rounding
The four-head corner rounding system automatically processes panel corners after edge banding. Its controlled movement is designed to reduce excessive impact on the panel during corner finishing.
6. Reliable Electrical Components
The machine uses Taiwan Shilin PLC and inverter components, a PC control screen and Schneider contactors to support stable machine operation.
7. Professional Edge Finishing
Rough trimming, fine trimming, scraping and buffing work together to produce a cleaner and more consistent finished edge.
8. A Practical Alternative to Larger Edge Banding Lines
The SV-868-PUR-2 is designed for manufacturers that need the core functions of an automatic PUR aluminum honeycomb panel edge bander without selecting a larger and more power-intensive machine configuration.
FAQ
What is the SV-868-PUR-2 used for?
The SV-868-PUR-2 is an automatic PUR edge banding machine designed for aluminum honeycomb panels, aluminum furniture panels and compatible lightweight composite panels.
What makes the SV-868-PUR-2 different from a conventional edge banding machine?
The SV-868-PUR-2 is specifically configured for aluminum honeycomb panel processing. It combines PUR gluing, flexible belt pressing, pre-milling, trimming, corner rounding, scraping and buffing in one automated process.
Why choose the SV-868-PUR-2 instead of the SV-968-PUR-2?
The SV-868-PUR-2 has a more compact 11,000 mm machine structure and a total power of 23.5 kW. It is suitable for manufacturers that need the main functions of an automatic PUR aluminum panel edge bander without selecting the larger 12,600 mm and 27 kW SV-968-PUR-2 configuration.
Is the SV-868-PUR-2 suitable for limited workshop space?
Its 11,000 × 1,000 × 1,750 mm machine dimensions provide a more compact configuration than the larger SV-968-PUR-2, making it a practical option when workshop layout is an important consideration.
What edge band thickness can it process?
The standard edge band thickness range is 0.3–3 mm.
Aluminum Honeycomb Edge Banding Machine PC Screen
PC screen
The 21-inch PC screen provides a clear interface for machine operation.
PLC and Inverter
Taiwan China Shilin Brand
Reliable electrical components help support stable machine operation and ease of maintenance.
Famous Brand Contactor
French Schneider brand
Reliability & Durability & Safety.
Dual Motors Pre-milling
2.2kw x2 pcs
Pre-milling helps create a smoother bonding surface before adhesive application.
Press Rollers With Scraper
6 pressing rollers
The six pressing rollers help distribute pressure evenly across the workpiece.
Pressing belt
Special pressing construct for aluminum honeycomb panels.
Pressing lightly to avoid aluminum honeycomb panels deforming, it helps maintain consistent contact between the edge band and panel during pressing.
PUR Gluing Unit
Equipped with a PUR hot-melt adhesive unit
Single-bucket and double-bucket PUR gluing systems are available as options. The PUR adhesive system is designed for bonding edge banding to compatible aluminum honeycomb panels. PUR glue’s advantage： high bonding strength, fast curing, environmental protection and safety, good weather resistance.
Rubber Belt
Use rubber belt to replace of conventional rubber rollers
To avoid the aluminum honeycomb panels deforming when it is pressed in machine.
Trimming units
Rough trimming and fine trimming
The mold and high-frequency high-speed motor structure are used to trim the excess edge banding material on the upper and lower edges of the processed board to ensure the smoothness of the upper and lower parts of the trimmed board.
The fine trimming function uses the R trimming knife to trim the curvature of the board edge banding. The fine trimming will also leave a margin for the subsequent scraping function. The two sets of fine trimming are convenient for free switching according to the different thicknesses of the workpieces.
Dual End Cutting
0.37KW*4 pcs
Use ABBA guide rails.
Can adapt to large and small plates, and the speed of aligning ends is faster.
Heavy duty FRL
air filter (F), Air pressure (R), and lubricator (L).
Stabilizing the air supply pressure to maintain a constant air level reduces damage to valves and actuators caused by sudden changes in air pressure. A filter cleans the air supply, removing moisture from the compressed air and preventing it from entering the device. An oil mist lubricator lubricates moving parts and components where lubrication is inconvenient, significantly extending the machine’s lifespan.
Scraping and buffing
Scraping,polishing,buffing
After trimming, scrape off the residue on the board and edge band again to ensure that the board and edge band are smooth and clean, making the edge band effect smoother. The polishing and waxing device effectively solves the problem of whitening of the edge band, making the edge band effect more perfect.
