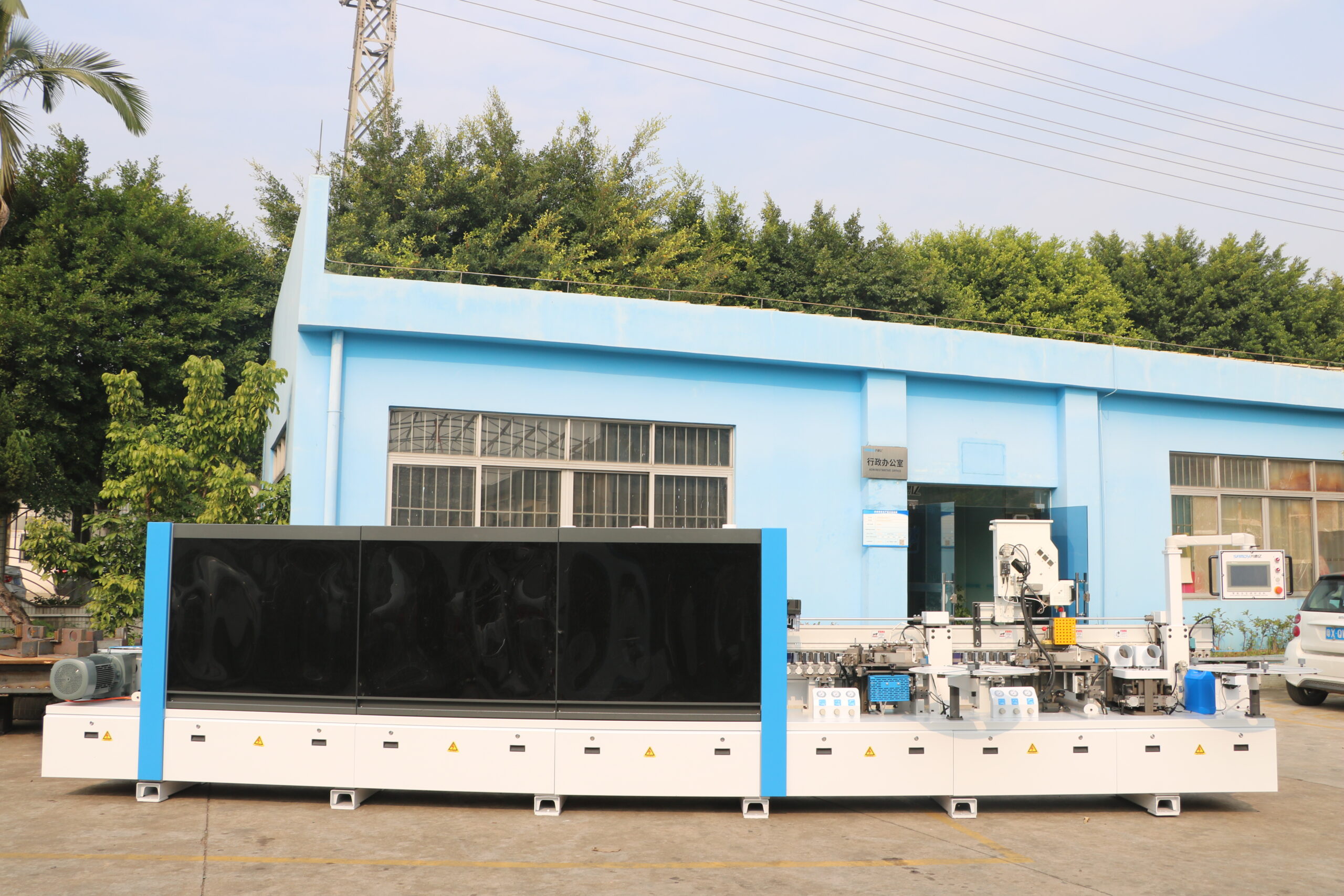

SV-668J
Automatic edge bander machine with independent dual EVA glue tank, double motor pre-milling, 2-head corner rounding, rough/fine trimming, scraping & double buffing. Made in Foshan, equipped with Taiwan Shilin PLC & Schneider electrical parts. Ideal for particleboard, MDF, plywood, whole-house cabinet & wardrobe mass production. Solve multi-color glue switching delay, edge chipping, glue line whitening & high rework pain points. Stable running speed 16-20m/min, 20KW total power, heavy rigid frame. Free quote & factory technical support available.
Basic configuration
Workpiece thickness: 10-60mm
Covering tape thickness: 0.3-3mm
Working air pressure: 0.7Mpa
Working speed:16-18-20m/min
Total power :20KW
Machine size:8000*1000*1600mm
Function
Separation-double motor pre-milling-Bottom EVA Gluing-6 Pressing rollers-Bottom EVA Gluing-6 Pressing rollers-End cutting-Rough trimming-Fine trimming-Corner rounding–scraping-cleaning-Buffing-Buffing(Automatic lifting)
share:
Description
Automatic edge bander machine SV-668j function is to precisely and firmly apply edge banding tape to the cut surfaces of boards through an automated process. This not only enhances the appearance and isolates formaldehyde from the board’s interior but also effectively prevents moisture intrusion. Its dual-glue-pot design allows for seamless switching of glue colors, easily adapting to different colored edge banding tapes and meeting diverse design needs.
Industry FAQ
Q1: What’s the biggest difference between SV-668J dual glue tank and single glue tank edge bander?
A: Single glue tank needs 30–60 mins to clean glue pot when switching light/dark edge band tape, causing long production stop. SV-668J two independent EVA glue tanks preheat two color glues simultaneously, one-click switch without shutdown.
Q2: Can this machine process narrow boards (40–60mm width)?
A: Yes, the feeding pressing system is optimized for narrow small workpieces, solve the problem of small board deviation, tilting and manual auxiliary feeding of ordinary edge banders, support stable processing of 40mm ultra-narrow cabinet side panels.
Q3: Is the machine hard to operate? Do I need skilled technicians?
A: Equipped with Taiwan Shilin intelligent touch screen, simple to operation.We will provide training for how to adjust cutters tools online,no need skilled technicians.
Q4: Can I upgrade the machine to PUR gluing later?
A: Yes, SV-668J has 2 glue tanks,you can choose one of glue tank as top type glue tank,it can work for EVA glue and PUR glue. After upgrading, it can produce waterproof, high-adhesion edge banding for bathroom cabinets, outdoor furniture, meet high-end market demand.
Q5: What feeding speed should I choose for my factory?
A: 16m/min: Small workshop, daily output below 500 boards; 18m/min: Medium customized factory, daily output 500–1000 boards; 20m/min: Large mass production factory, daily output over 1000 boards. The machine supports three-speed free switching.
Q6: Why choose dual motor pre-milling instead of single pre-milling?
A: Dual 2.2KW pre-milling motor with diamond cutter head, two-way balanced milling eliminate board edge vibration ripple, flatness error ≤0.03mm; single pre-milling has weak power, easy to leave uneven milling traces, resulting in thick glue line and poor bonding effect.
Q7: How long is the machine delivery cycle?
A: delivery cycle 30-35 working days after receive deposit.
Use Scenarios
This equipment is widely applicable to the production of various types of boards and furniture:
· Applicable boards: Particleboard, medium-density fiberboard, plywood, solid wood boards, etc.
· Applicable scenarios: Panel furniture manufacturing, whole-house customization production, cabinet and wardrobe production, office furniture production. Some models are specifically optimized for processing narrow boards (30-60mm wide), solving the problem of manual edge banding for small workpieces.
Machine advantage
1.Top Brand Electrical Configuration, Ultra-Low Failure Rate
Full set Taiwan Shilin PLC, touch screen, inverter + Schneider contactor. Pass 72-hour continuous full-load aging test, circuit failure rate ≤0.15%, far lower than industry average 1.2%
2.Pressing rollers with flat knife,to make more perfect edge banding surface.
3.Heavy duty machine body to ensure machine is durable,5 years without precision problems.
4. PUR gluing and pneumatic adjusting cutter tooling are optional.
5. Foshan Factory Direct Supply, Cost-Effective
more than 15 years woodworking machinery manufacturing factory, no middleman markup, provide one-stop after-sales: door-to-door installation, technical training, 1-year full machine warranty, lifetime spare parts supply.
6.Low Rework & Low After-Sales Cost.
Pre-milling + double trimming + buffing integrated design, finished product rework rate ≤0.8%; factory average investment recovery cycle 8–12 months
Full Automatic PVC Edge Banding Machine SV-668J Touch Screen
Shilin Brand Made in Taiwan China
PLC and Inverter
Shilin Brand
Famous Brand Contactor
French Schneider brand
Stable circuit ，overheat ,overload automatic protection,all can extend machine service life.
Dual Motors Pre-milling
2.2kw x2 pcs
It adopts the special diamond pre-milling toosl, trim uneven board edges ,make gluing perfect to reduce glue line,actual reword rate dropped to 0.8%.
Press Rollers With Scraper
6 pressing rollers
Ordinary edge bander pressing is unstable,PVC tape might be peeling after furniture delivery .
But edge bander SV-668J with 6 pressing rollers each glue tank,total 12 pcs., it makes the pressing more perfect,rubber roller will make pressing more even.
Edge band peeling will be reduced from 3% to 0.1%.
Double Trimming
Rough trimming & fine trimming
Corner Rounding
2 heads corner rounding
Dual motor tracking, used for arc trimming of corners.
Using 0.37*2 motor.
4-head corner rounding is optional.
Scraping and buffing
Scraping and dual motor buffing
After trimming, scrape off the residue on the board and edge band again to ensure that the board and edge band are smooth and clean, making the edge band effect smoother. The polishing and waxing device effectively solves the problem of whitening of the edge band, making the edge band effect more perfect.
Real Edge Banding Effect
0.4-3MM is available
0.3–3mm edge tape perfect seamless bonding, no visible glue line, rounded anti-scratch corner, waterproof & formaldehyde isolation, improve furniture grade.
Dual gluing tank
Dual independent EVA glue tank ,one-click switch
If single glue tank,need to clean glue tank when you need to change light color glue from dark color glue,and then heating glue again,at least 30-60 minutes per time.
Dual glue tank,one-click switch ,zero cleaning time,save waiting heating time,increase daily output,save 30 minutes every time.
Heavy duty machine body
machine weight 2500kgs
Cheap& light machine body machine will be shaking during long time operation,precision will be very low after 1-2 years.
SV-668J adopt heavy duty machine body with secondary stress relief treatment ,ensure it can work at 5 years without precision problems.

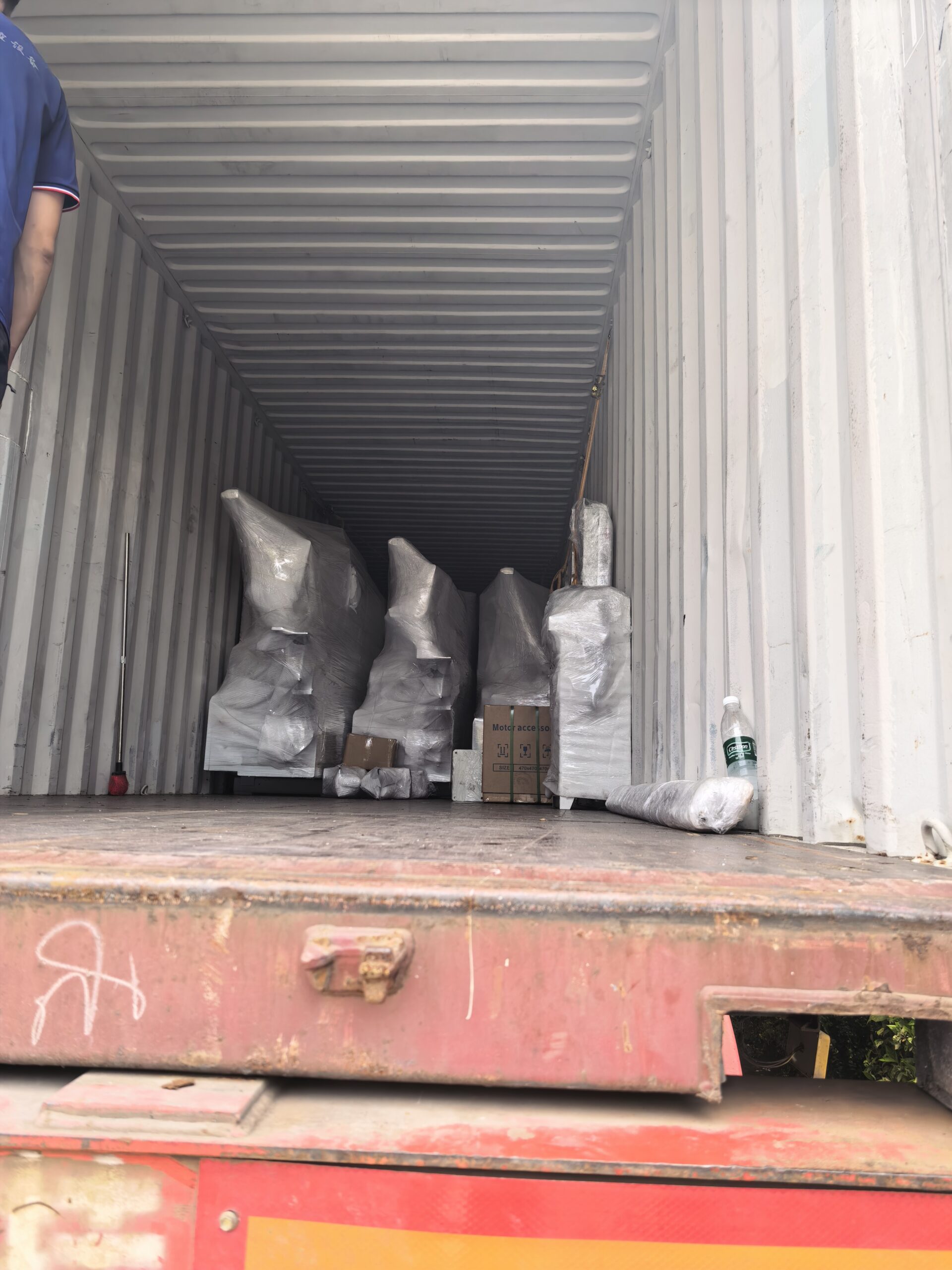

Packing & Loading
professional loading container for exporting
We have rich experience for exporting, load container and export every moth,no need worry about custom clearance documents and loading issues.
