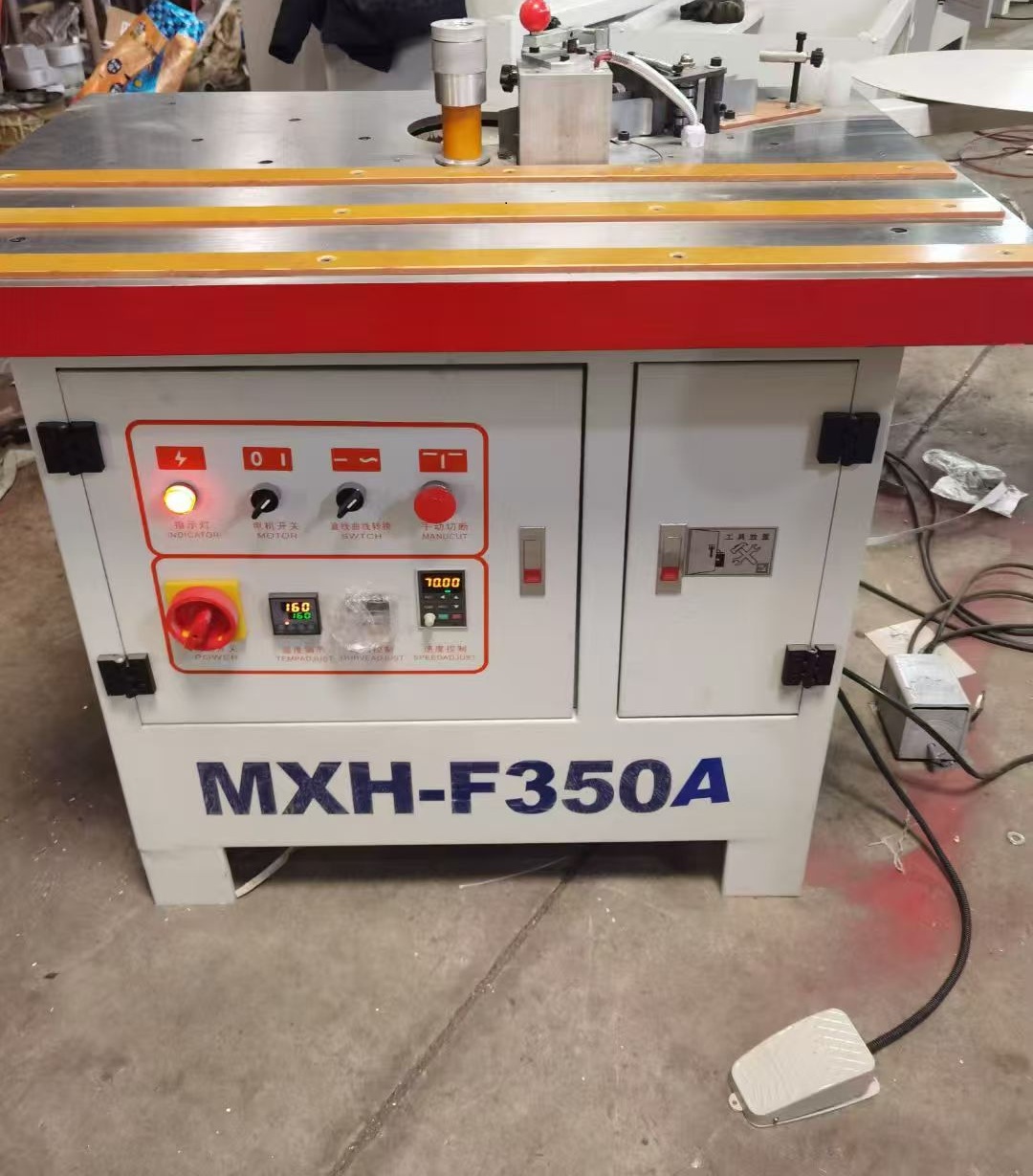

Manual Curved Edge Banding Machine For Abnormal Shape Edge And Straight Edge

MXH-F350A

Manual curved edge banding machine is to apply edge banding strips to the exposed sides of engineered wood products (such as MDF, particleboard, and eco-board), achieving the following objectives:

It can process straight edge and curved edge ,EVA glue and PUR glue are optional.

Technical Specifications

Parameter	Specification
Maximum Working Width	10–50 mm
Working Thickness	0.3–3.0 mm
Working Air Pressure	0.06 MPa
Feed Speed	0–15 m/min
Total Power	2.3 kW
Machine Weight	100 kg
Overall Dimensions	1000 × 700 × 1000 mm
Table	Casting Table
Speed Control	Frequency Controller

function

Gluing(PUR glue and EVA glue are optional)
Pressing

PVC edge banding cutting

Description

Manual curved edge banding machine is to apply edge banding strips to the exposed sides of engineered wood products (such as MDF, particleboard, and eco-board), achieving the following objectives:

1. Aesthetic Enhancement: Covers the rough internal structure of the board, making it consistent with the color and texture of the surface.

2. Edge Protection: Prevents edge bumps and wear, blocks moisture intrusion, and reduces board deformation and expansion.

3. Enhanced Safety: Leaves smooth, burr-free edges after banding, preventing scratches.

Use Scenarios

Custom Furniture Manufacturing

Suitable for customized furniture components with different panel shapes and edge profiles.

Curved Cabinet Doors

Useful for cabinet doors and furniture components with rounded or curved edges.

Curved Tables and Countertops

Suitable for applying edge banding to curved or rounded table tops, countertops and similar panels.

Shelves and Decorative Panels

Can be used for curved shelves, display panels and decorative furniture components.

Small-Batch Production

A practical option for workshops producing customized orders, samples and small batches where a fully automatic edge banding line is not necessary.

Prototyping and Non-Standard Panels

Suitable for furniture manufacturers and woodworking workshops that frequently process new designs and irregular-shaped panels.

Key Features

1. Extremely low investment cost: Priced at only a fraction of that of an automatic edge banding machine, it’s an excellent choice for individual studios and small businesses starting up.

2. Unparalleled flexibility:

* Flexible size: Handles boards ranging from a few centimeters to several meters in length, with fast material changeover and machine adjustment.

* Flexible materials: Compatible with various materials such as PVC, ABS, acrylic, and solid wood veneer edge banding strips.

* Flexible orders: Particularly suitable for non-standard customization, small batches, and multi-variety production models, without the “startup cost” pressure of large-scale equipment.

3. Small footprint: One machine requires only the space of a workbench, eliminating the need for a fixed production line and facilitating easy relocation.

4. Easy to learn: The mechanical structure is intuitive, and operators can master it after a short training period.

5. Simple maintenance: Few mechanical failures and low maintenance costs; even ordinary users can perform basic maintenance.

FAQ

What is a manual curved edge banding machine used for?

A manual curved edge banding machine is used to apply edge banding to straight, curved and irregular-shaped furniture panels. The operator manually guides the workpiece along the edge.

Can this machine edge band curved panels?

Yes. The machine is designed for curved as well as straight edges. Manual feeding allows the operator to follow the shape of the workpiece during edge banding.

Can it process irregular-shaped furniture panels?

Yes. It is suitable for many non-standard and irregular-shaped furniture components, depending on the workpiece shape and machine configuration.

What furniture can be processed?

Typical applications include cabinet doors, curved shelves, tables, countertops, decorative panels and other customized furniture components with straight or curved edges.

What is the difference between a manual and automatic edge banding machine?

A manual machine requires the operator to guide the workpiece, which provides greater flexibility for curved and irregular edges. An automatic straight-line edge bander automatically transports panels through multiple processing stations and is mainly designed for standardized production.

Is this machine suitable for a small furniture workshop?

Yes. Its manual operating concept makes it suitable for small workshops, custom furniture manufacturers and businesses that process a variety of non-standard panels.

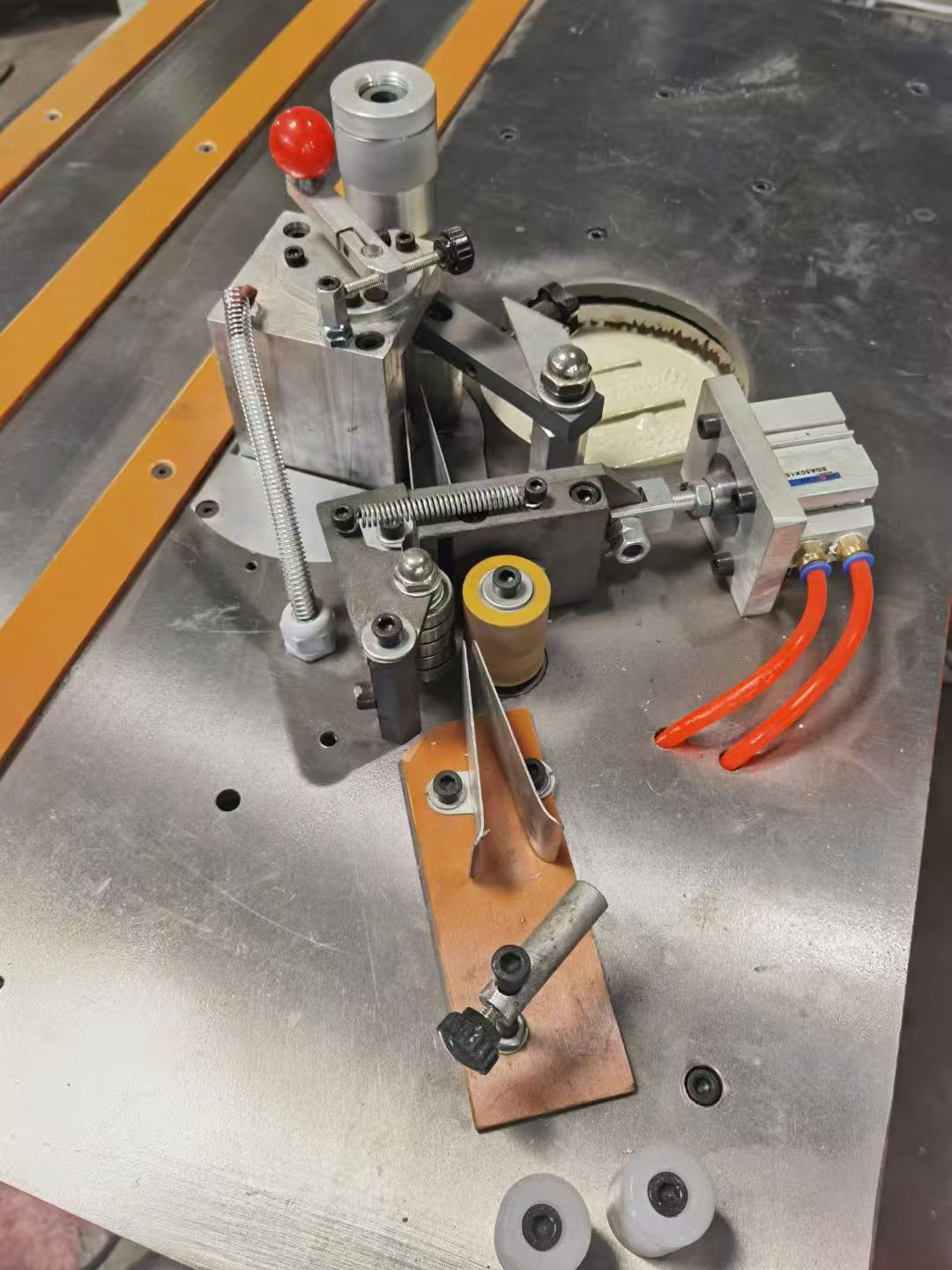

Gluing unit

EVA glue and PUR glue are optional

EVA glue cost is cheaper,PUR gluing effects are better.
You can make decision according to your requirement.

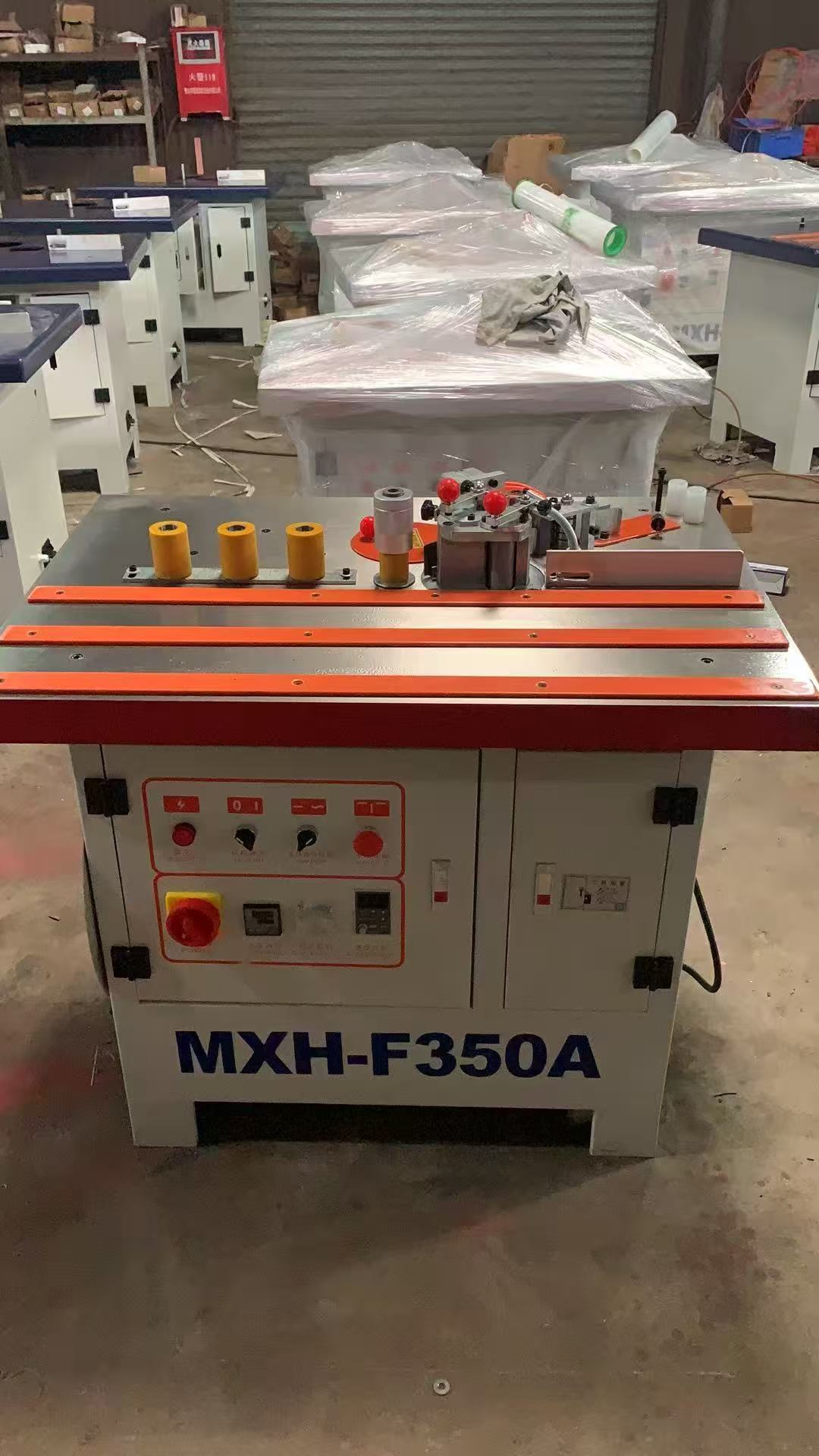

Good quality working table

Casting working table

Casting working table ensure machine working stable.

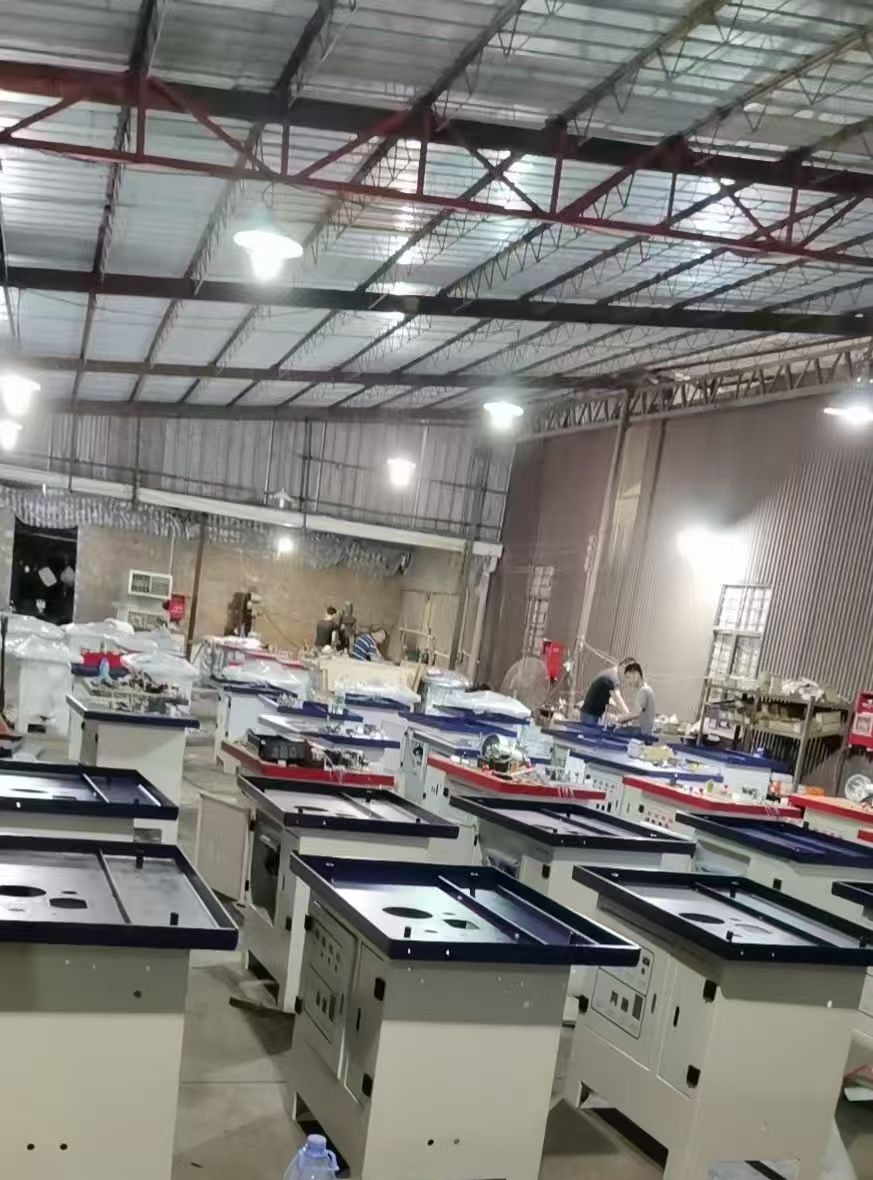

Professional workshop

Manual curved edge banding machine

Professional workshop make us can delivery good quality machines in time.
