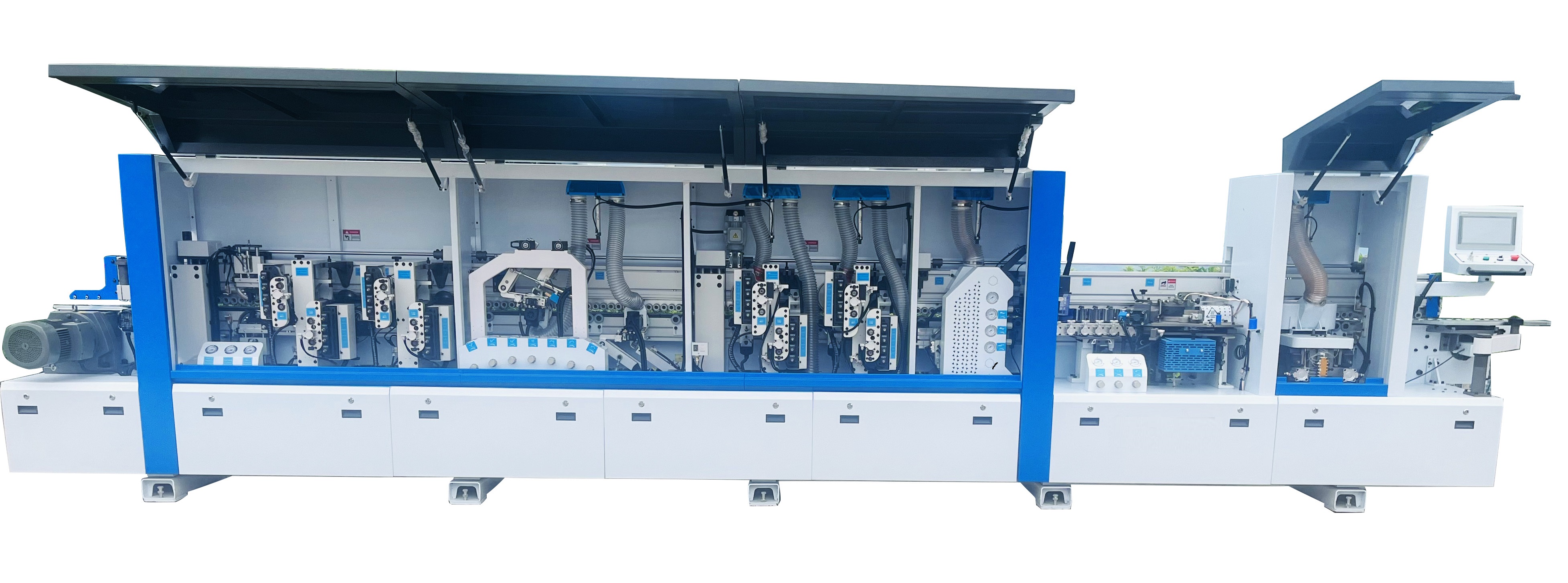

China Pneumatic Adjusting Automatic Edge Banding Machine With Double Trimming And Double Scraping SV-468JP
SV-468JP
Automatic edge banding machine is to apply a strip of edge banding material (such as PVC, ABS, wood veneer, or melamine) to the exposed edges of panel materials like particleboard, MDF, or plywood. Model 468JP is with premilling function ,double pneumatic trimming and pneumatic double scraping, corner rounding to give you a good corner profile.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Model | SV-468JP |
| Machine Type | Pneumatic Adjusting Automatic Edge Banding Machine |
| Minimum Workpiece Length | ≥200 mm |
| Minimum Workpiece Width | ≥40 mm |
| Workpiece Thickness | 10–60 mm |
| Covering Tape Thickness | 0.4–3 mm |
| Working Air Pressure | 0.7 MPa |
| Total Power | 19.5 kW |
| Machine Size | 7600 × 1000 × 1600 mm |
function
1. Panel Separation
The feeding section separates workpieces before they enter the edge banding process, supporting continuous panel feeding.
2. Double-Motor Pre-Milling
Two pre-milling motors prepare the panel edge before gluing by removing uneven cutting marks and creating a more consistent edge surface.
3. Gluing
The gluing unit applies hot melt adhesive to the panel edge before the edge banding material is pressed onto the workpiece.
4. End Cutting
The end-cutting unit cuts the edge banding material at the front and rear ends of the workpiece.
5. Pneumatic Fine Trimming
Two pneumatic fine-trimming units are used to remove excess edge banding material from the upper and lower edges of the processed panel.
The pneumatic adjustment system allows commonly used trimming positions to be preset through the touch screen.
6. Two-Head Corner Rounding
The corner-rounding unit uses two tracking motors to process compatible rounded panel corners.
A four-head corner-rounding configuration can be discussed as an optional configuration where required.
7. Pneumatic Double Scraping
Two pneumatic scraping units remove remaining trimming marks from the edge banding surface.
The pneumatic adjustment system allows the scraping position to be changed according to the selected production setting.
8. Flat Scraping
The flat-scraping unit performs additional finishing on the processed edge.
9. Cleaning
The cleaning unit helps remove remaining residue from the finished edge.
10. Buffing
The automatic lifting buffing system provides final finishing for the edge banding surface.
share:
Description
The SV-468JP is an automatic edge banding machine with pneumatic adjustment, double trimming, double scraping, pre-milling and corner rounding.
It is designed for furniture manufacturers that frequently process different edge banding thicknesses and want a more convenient way to adjust the trimming and scraping units.
The machine integrates:
Panel Separation → Pre-Milling → Gluing → End Cutting → Pneumatic Fine Trimming 1 → Pneumatic Fine Trimming 2 → Corner Rounding → Pneumatic Scraping 1 → Pneumatic Scraping 2 → Flat Scraping → Cleaning → Buffing
Its main product differentiation is the pneumatic adjustment system, pneumatic adjusting fine trimming and Pneumatic scraping provide adjusting worry-free and save operation time.It can pre-set 4 thicknesses on touch screen,one key touch switch,easy operation.Traditional fine trimming and scraping need to adjusting handle wheel when you need to change different thick pvc tape,and some operators not very skilled at adjusting,it will spend much time.But this machine has preset 4 thickness,0.4mm,0.8mm,1.2mm,2mm ,switch each size at one second,save much time.And the cost is very reasonable ,it is cheaper much than servo adjusting,save cost for you also.
Pneumatic adjustment system allows operators to select the required preset instead of repeatedly performing manual mechanical adjustments.
The system is particularly useful for furniture factories that process PVC, ABS, PET, veneer or other edge banding materials with different thicknesses during production.
The exact preset thicknesses should be configured according to the customer’s production requirements and confirmed before ordering.
SV-468JP vs. SV-468J
The SV-468JP and SV-468J share several core functions, including pre-milling, gluing, trimming, corner rounding, scraping and buffing.
Their main difference is the adjustment system.
SV-468J
The SV-468J uses a conventional configuration for its trimming and scraping units and is positioned as a standard automatic edge banding machine with pre-milling and corner rounding.
SV-468JP
The SV-468JP adds pneumatic adjustment for fine trimming and scraping, with preset positions controlled through the touch screen.
Choose SV-468JP when convenient adjustment for different edge banding thicknesses is an important production requirement.
Choose SV-468J when a standard automatic edge banding configuration with pre-milling and corner rounding is sufficient.
Use Scenarios
Kitchen Cabinet Manufacturing
Suitable for automatic edge banding of cabinet doors, side panels, shelves and other compatible components.
Wardrobe Production
Suitable for wardrobe panels, doors, shelves and other straight-edge furniture components.
Office Furniture
Suitable for desks, cabinets, storage units and other panel-based office furniture.
Customized Furniture Production
The pneumatic adjustment system is useful for factories that process different edge banding thicknesses across multiple customized furniture orders.
Door Manufacturing
The machine can be used for compatible wood doors, WPC doors and other panel-based door components.
Narrow Panel Processing
The narrow-panel auxiliary device allows the machine to process workpieces with a minimum width of 40 mm according to the stated configuration.
Key Features
Pneumatic Adjustment for Trimming and Scraping
The main feature of the SV-468JP is its pneumatic adjustment system for fine trimming and scraping.
Common edge banding thickness settings can be preset on the touch screen, allowing operators to select the required setting during production.
Double Pneumatic Fine Trimming
Two pneumatic fine-trimming units process the upper and lower edges of the panel and can be adjusted through the pneumatic preset system.
Pneumatic Double Scraping
Two pneumatic scraping units are integrated into the machine to provide additional edge finishing after trimming.
Double-Motor Pre-Milling
The pre-milling system prepares the panel edge before gluing and helps remove uneven saw-cut surfaces.
Two-Head Corner Rounding
The standard configuration includes two-head corner rounding for compatible rounded panel corners.
Narrow Panel Processing
A narrow-panel auxiliary device supports workpieces with a minimum width of 40 mm according to the stated machine configuration.
10–60 mm Panel Thickness
The machine supports compatible panels from 10 to 60 mm thick.
0.3–3 mm Edge Banding Material
The machine supports edge banding material from 0.3 to 3 mm thick.
Optional PUR Gluing
PUR gluing is available as an optional configuration according to the required production process.
Optional Pneumatic Adjustable Cutter Configuration
The pneumatic adjustable trimming configuration is the main feature of the SV-468JP and can be configured according to the customer’s required edge banding thicknesses.
FAQ
What is the SV-468JP automatic edge banding machine?
The SV-468JP is an automatic edge banding machine with pneumatic adjustment for fine trimming and scraping, combined with pre-milling, corner rounding, double trimming, double scraping and buffing.
What is the main advantage of pneumatic adjustment?
Pneumatic adjustment allows commonly used trimming and scraping positions to be preset and selected through the touch screen, reducing repeated manual adjustment when changing edge banding thicknesses.
How many pneumatic trimming units does the machine have?
The SV-468JP has two pneumatic fine-trimming units for processing the upper and lower edges.
How many scraping units does it have?
The machine has two pneumatic scraping units plus a flat-scraping process.
What edge banding materials can be used?
The machine can process compatible PVC, ABS, PET, wood veneer and paper edge banding materials.
Can the SV-468JP use PUR glue?
No. PUR gluing is available as an optional configuration.
What is the difference between SV-468JP and SV-668J?
SV-468JP focuses on pneumatic adjustment, double pneumatic trimming and double pneumatic scraping. SV-668J focuses on two independent EVA glue tanks and corner rounding.
Can the preset thickness settings be customized?
The pneumatic adjustment system can be configured according to the customer’s commonly used edge banding thicknesses. The exact preset values should be confirmed before production.
Touch screen
Taiwan China Shilin Brand
The touch screen is responsive and durable.
10 inch size,easy operation.
Wifi connecting is optional.
PLC And Inverter
Taiwan China Shilin Brand
Good quality ensure machine working stable and provide good after sale service.
Contactor brand is Schneider.
Famous Brand Contactor
French Schneider brand
Use Schneider brand, high safety factor.

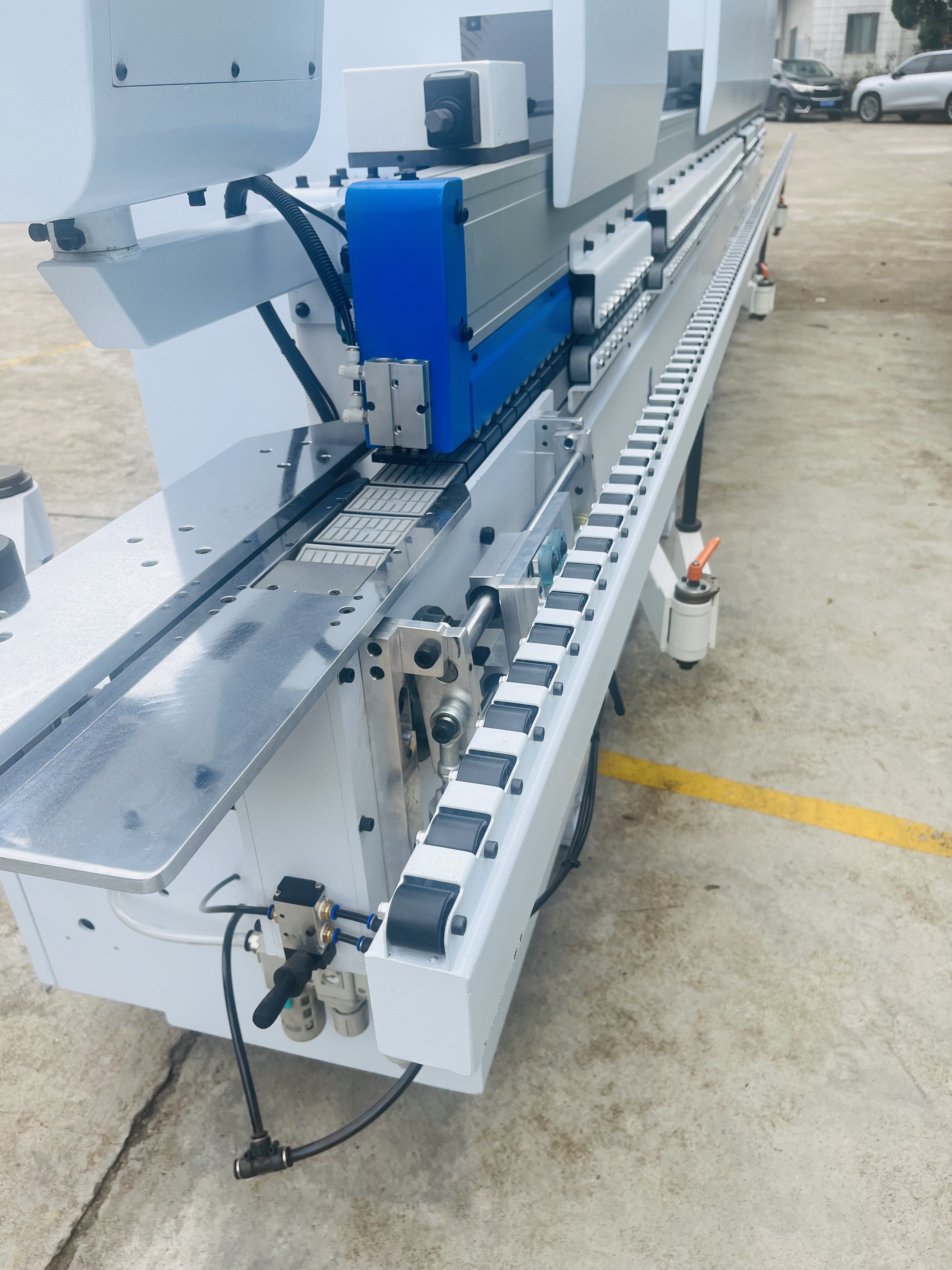

Narrow plate auxiliary device
Min working panel width 40mm
This auxiliary device can make the narrow panels feeding very well.
Press Rollers With Scraper
6 pressing rollers
It makes the pressing more perfect,rubber roller will make pressing more even.
Double Pneumatic Trimming
Pneumatic fine trimming
It is used to trim excess edge banding material on the upper and lower edges of the processed board to ensure that the upper and lower parts of the trimmed board are smooth.
Pre-set 4 kind of thickness, 0.4-0.8-1.3-1.5mm , can meet all your production requirements. We also can set according to your requirements.
Corner Rounding
2 heads corner rounding
Dual motor tracking, used for arc trimming of corners.
Using 0.37*2 motor.
4-head corner rounding is optional.
Edge Banding Effects
0.4-3MM is available
