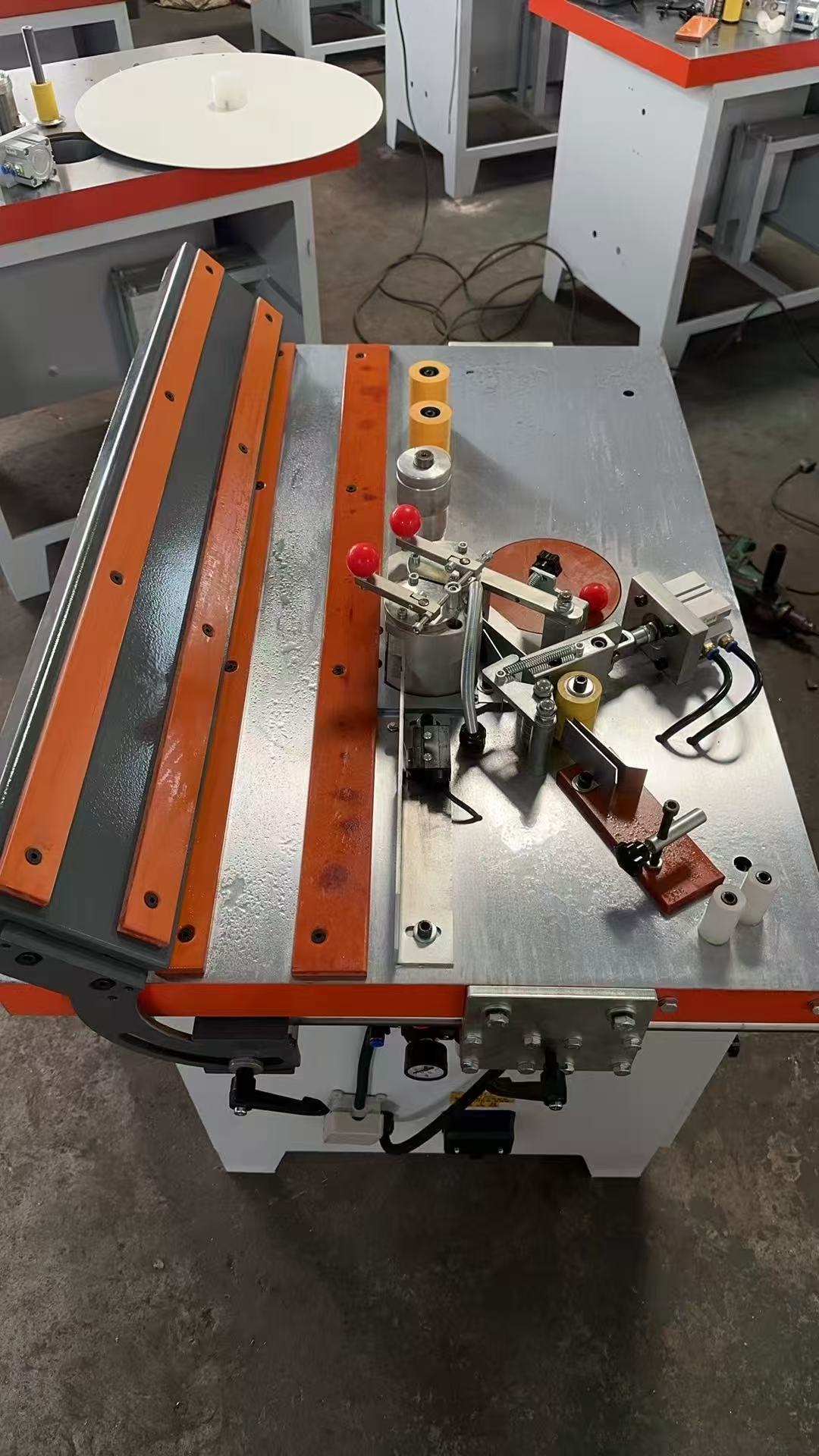

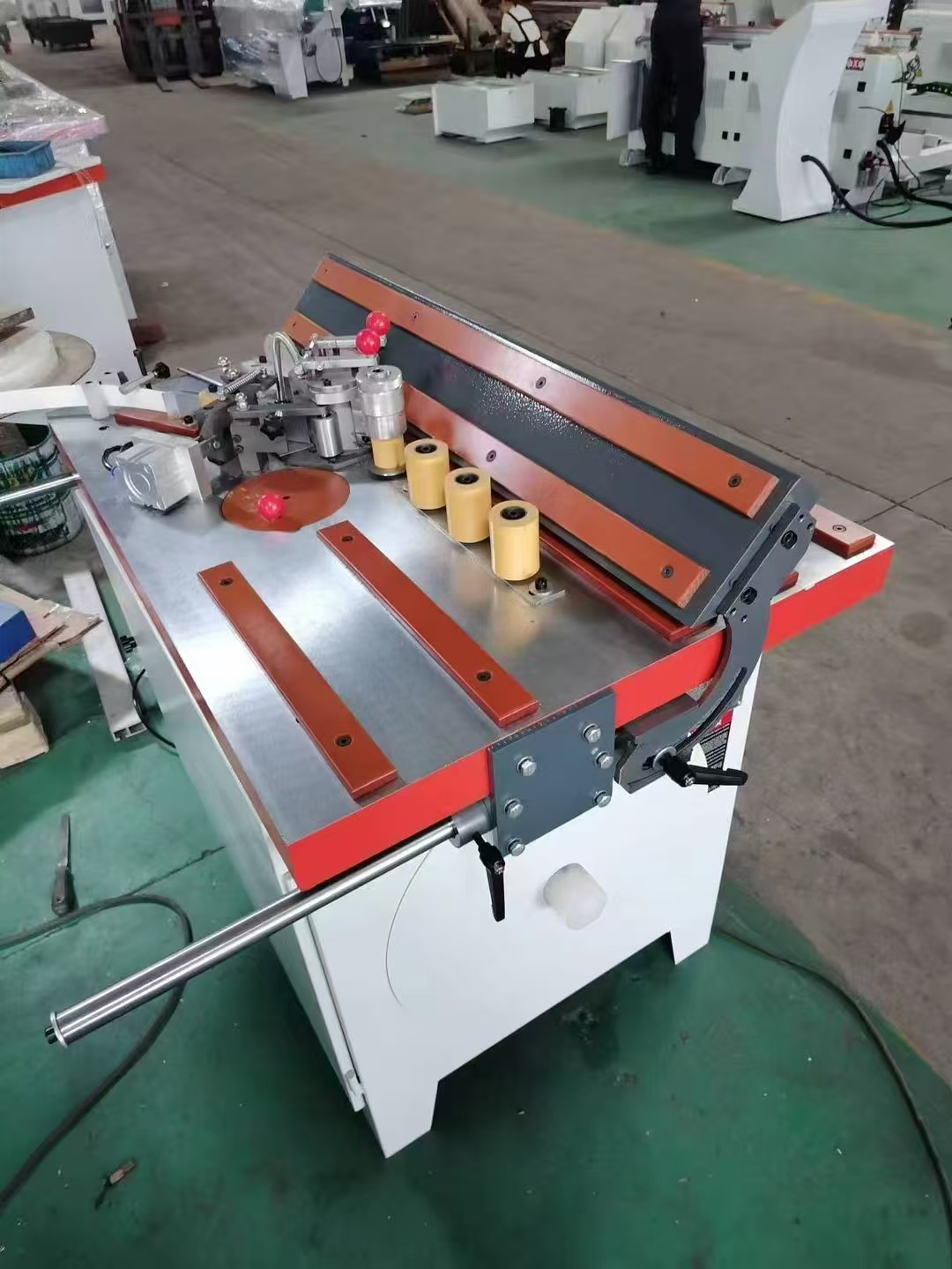

MFC-360 Manual 45 Edge Banding Machine for Beveled Panel Edges
MFC-360
The SAMDY MFC-360 is a manual 45 degree edge banding machine designed for applying edge banding to beveled and mitered panel edges. It combines EVA hot-melt gluing, manual edge banding and 45-degree edge processing in a compact machine for custom furniture and small-batch woodworking applications.
Unlike conventional straight-line edge banding machines, the MFC-360 is designed specifically for panel edges that require a 45-degree bevel and mitered joint. The finished edge can be used to create a clean 90-degree corner when two beveled panels are assembled together.
The machine is suitable for MDF, particleboard, plywood and other engineered wood panels within the specified working range. Typical applications include cabinet doors, wardrobe doors, drawer panels, tabletops, countertops, picture frames and customized furniture components.
With its compact structure, manual operation and relatively low power requirement, the MFC-360 is suitable for woodworking workshops that need 45-degree edge banding without installing a large automatic production line.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MFC-360 |
| Machine Type | Manual 45-Degree Edge Banding Machine |
| Working Panel Thickness | 10–25 mm |
| Edge Banding Tape Thickness | 0.3–3.0 mm |
| Total Power | 0.37 kW |
| Machine Weight | 100 kg |
| Machine Dimensions | 1000 × 720 × 1000mm |
function
Manuel 45 degree edge banding
EVA gluing
PVC banding cutting
share:
Description
1. Preparation: After the sheet material is sawn, load the edge banding strip (usually a roll of PVC, ABS, acrylic, or other similar materials) into the machine.
2. Glue Application: Apply hot melt adhesive evenly to the edges of the sheet material and the edge banding strip using the machine’s glue pot or rollers.
3. Pressing and Cutting: Feed the sheet material in, and the edge banding strip is pressed against the edge. When the end of the sheet material reaches a specific position, the machine’s bevel cutter will precisely and synchronously cut the edge banding strip at a 45-degree angle.
4. Post-processing: After removing the workpiece, excess edge banding material is usually removed manually using an edge trimmer or scraper to make the edges smoother and flatter.
• Efficiency: The speed is much lower than automated production lines, suitable for delicate work but not for large-scale production of single workpieces.
• Operator Requirements: Although easy to learn, achieving precision and aesthetics heavily relies on the operator’s experience and feel (such as the uniformity of feed speed and pressure control).
• Functional Limitations: Generally, it only performs gluing, pressing, and end-cutting functions. Subsequent processes such as trimming (front and back ends), rough trimming, fine trimming, edge scraping, and polishing usually require additional manual tools or separately purchased trimming equipment.
• Preparation: The sawing precision of the board material is fundamental. If the board material itself is not square, the edge banding effect will be significantly compromised.
Use Scenarios
Cabinet and Wardrobe Doors
The MFC-360 can be used for cabinet and wardrobe door components requiring beveled edges and mitered corner joints.
Drawer Panels
Suitable for drawer panels and other furniture components that require a finished beveled edge.
Tables and Countertops
The machine can be used for tabletop and countertop components where a 45-degree edge is required for a mitered appearance.
Decorative Panels and Frames
Suitable for decorative furniture panels, display components and frame-type woodworking products.
Custom Furniture
The manual configuration is suitable for customized furniture production where panel shapes, dimensions and order quantities vary.
Key Features
1. Designed for 45-Degree Edge Banding
The MFC-360 is specifically designed for applying edge banding to beveled panel edges and processing 45-degree mitered joints.
2. Manual Edge Banding Operation
The manual operating design gives the operator direct control over workpiece positioning, making it suitable for customized and small-batch furniture production.
3. EVA Hot-Melt Gluing
The standard configuration uses EVA hot-melt adhesive for bonding the edge banding material to the panel edge. PUR glue is available as an optional configuration.
4. 45-Degree Edge Processing
The machine is designed around the 45-degree edge banding process, helping manufacturers produce beveled edges for mitered furniture components.
5. Compact Machine Structure
With a compact footprint and 0.37 kW total power according to the current specification, the MFC-360 is suitable for workshops with limited production space.
6. Suitable for Custom Furniture
The machine is suitable for customized cabinet doors, drawer panels, tabletops, countertops, decorative frames and other furniture components requiring beveled edge treatment.
FAQ
What is a 45-degree edge banding machine?
A 45-degree edge banding machine is designed to apply edge banding to beveled panel edges and process mitered edges, allowing two 45-degree edges to form a 90-degree corner when assembled.
What is the MFC-360 used for?
The MFC-360 is a manual 45-degree edge banding machine for cabinet doors, wardrobe doors, drawer panels, tabletops, countertops, decorative panels and other custom furniture components.
Can the MFC-360 process normal straight edges?
The MFC-360 is primarily designed for 45-degree edge banding and beveled edge applications. For standard high-volume straight panel edge banding, a dedicated automatic straight-line edge banding machine is more appropriate.
What type of glue does the MFC-360 use?
The standard configuration uses EVA hot-melt adhesive. PUR glue is available as an optional configuration according to the current product specification.
What edge banding material can be used?
The current page specifies PVC edge banding tape and also describes PVC, ABS, acrylic and similar edge banding materials.
Is the MFC-360 suitable for small furniture workshops?
Yes. Its manual operation and compact structure make it suitable for customized furniture, small-batch production and workshops that do not require a fully automatic edge banding line.
Gluing
EVA gluing
This machine is for EVA glue,PUR glue is also optional .

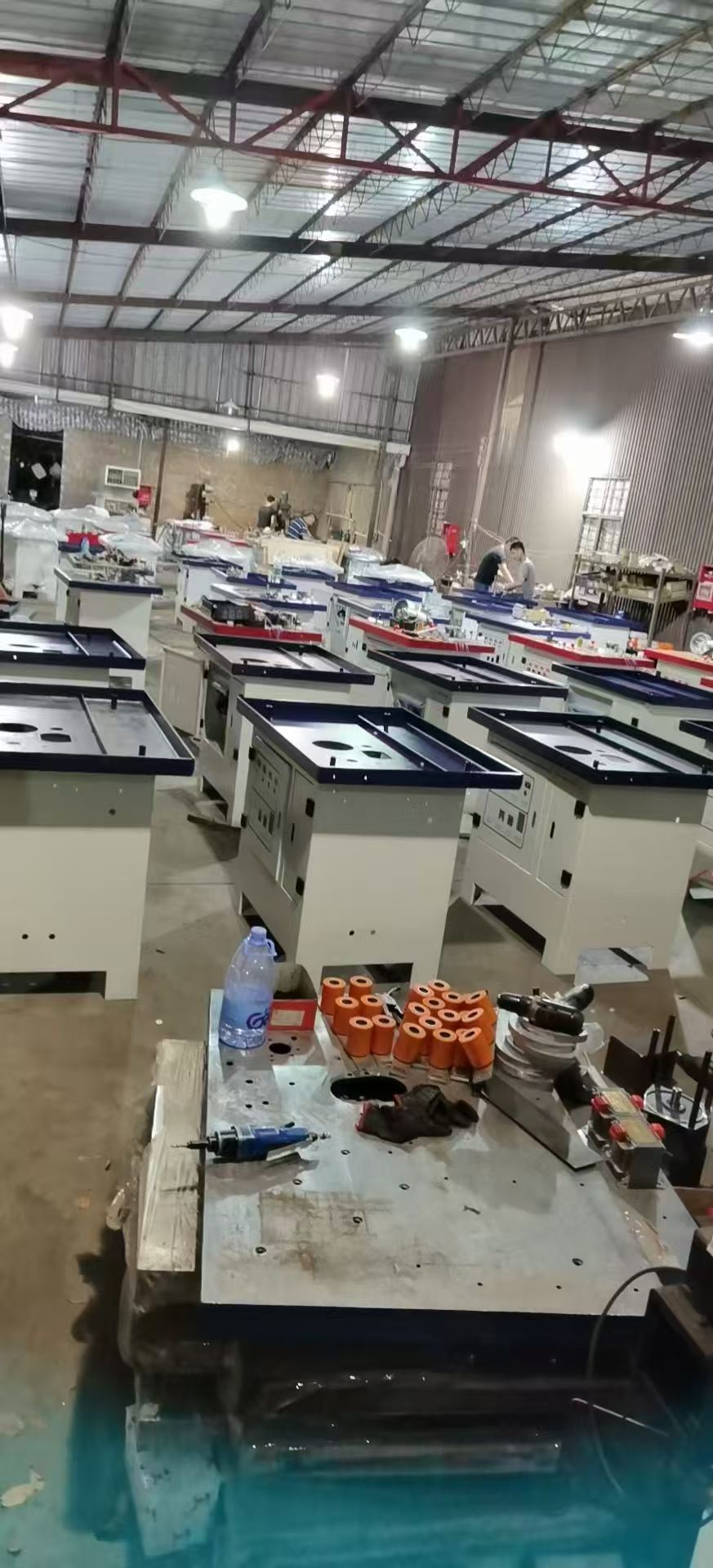

Workshop
