Automatic Belt Conveyor Return Line for Edge Banding Machine

The SAMDY Belt Conveyor Return Line is an automatic panel return conveyor designed to work with single-sided edge banding machines. After one edge is banded, the conveyor automatically transfers the panel back to the operator side for the next edge-banding cycle.

By reducing manual panel handling between edge-banding operations, the system helps furniture manufacturers improve workflow efficiency and reduce repetitive loading and unloading work. The belt return system supports panels from 200 × 200 mm up to 2440 × 1220 mm, with a working thickness of 10–60 mm and adjustable conveying speed of 10–35 m/min.

The belt conveyor return line can be customized according to the edge banding machine model, panel size and available workshop space.

Technical Specifications

Specification	Automatic Belt Conveyor Return Line
Machine Type	Automatic Belt Conveyor Return Line
Application	Edge Banding Machine Panel Return
Conveyor Type	Belt Conveyor
Overall Size	4360 × 2950 × 900 mm ±50 mm
Total Power	1.6 kW
Main Beam Material	40 × 80 mm Aluminum Profile
Loading Capacity	≤80 kg/m
Total Loading Capacity	1,000 kg
Conveyor Speed	10–35 m/min
Minimum Panel Size	200 × 200 mm
Maximum Panel Size	2440 × 1220 mm
Panel Thickness	10–60 mm
Function	Automatic Panel Return for Repeated Edge Banding
Customization	Available

Customization Available for Conveyor Size, Layout and Edge Banding Machine Integration

function

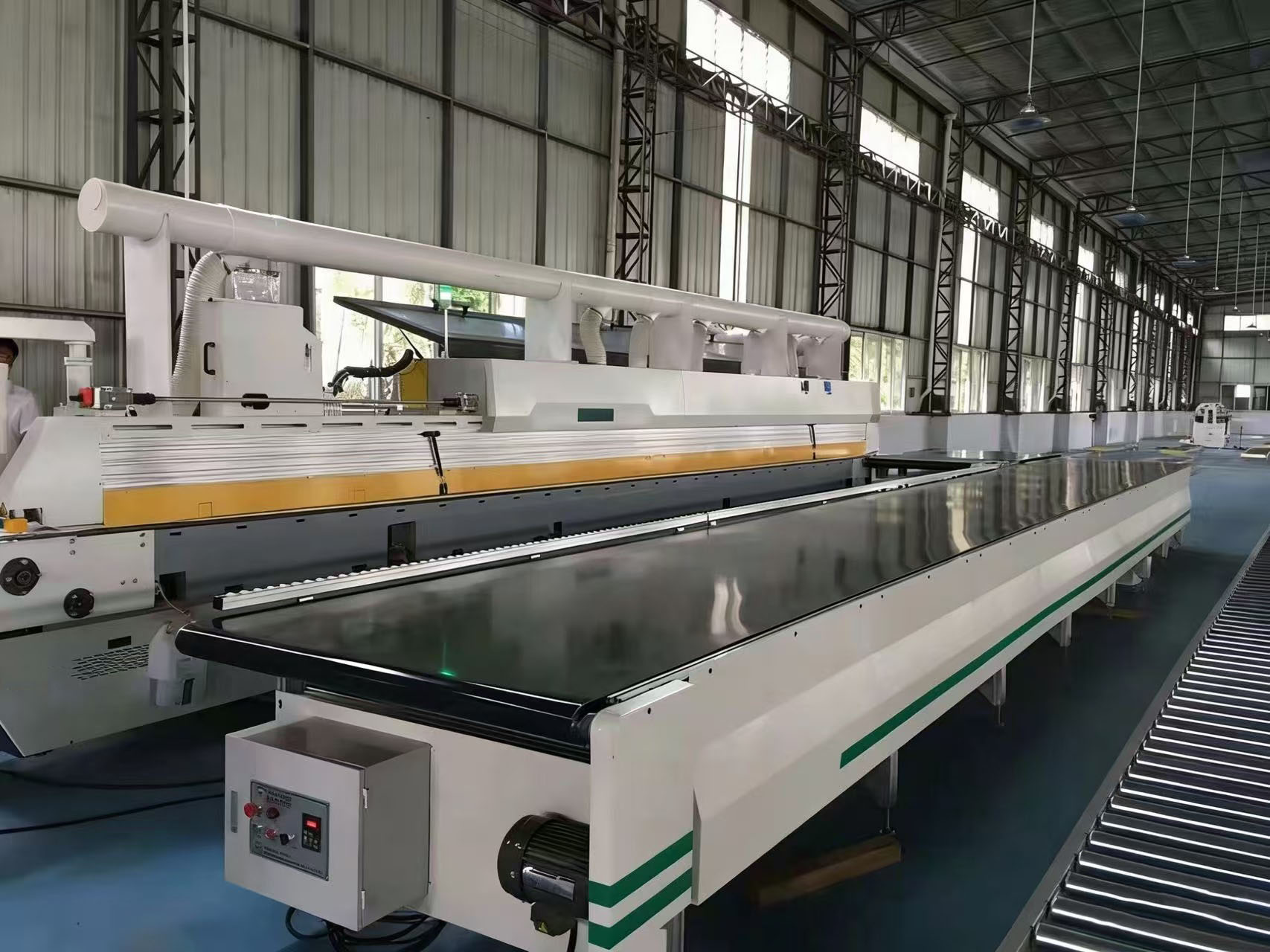

Connected to edge banding machine and feeding panel back to the front of edge banding machine.

Description

Belt Conveyor vs Roller Conveyor

Both roller conveyors and belt conveyors can be used as panel return systems for edge banding machines, but they are suitable for different production requirements.

Feature	Roller Conveyor	Belt Conveyor
Panel Transfer	Rollers support and move panels	Continuous belt supports and moves panels
Small Panels	Good	Better
Panel Surface Protection	Depends on roller design	Stable and smooth contact
Heavy Panels	Suitable	Suitable within rated capacity
Panel Return	Suitable for continuous return	Suitable for continuous automatic return
Best For	Larger and heavier panels	Small/medium panels and flexible production
Layout	Requires suitable roller spacing	Flexible return layout

Which one should you choose?
A roller conveyor is a practical choice for larger or heavier panels, while a belt conveyor is generally more suitable when stable panel support, flexible layout and reliable return of different panel sizes are important. The best option depends on the panel dimensions, weight, edge banding machine and available workshop space.

Use Scenarios

Panel Furniture Production

Suitable for cabinet doors, furniture panels, wardrobe components and other wood-based panels processed with automatic edge banding machines.

Custom Furniture Manufacturing

Useful for customized furniture factories handling panels with different sizes and frequent edge-banding operations.

Cabinet Manufacturing

The automatic panel return function helps operators repeatedly process cabinet components without manually carrying panels around the edge bander.

High-Volume Edge Banding

For batch production, the return conveyor can be connected to an automatic edge banding machine to create a more continuous panel handling workflow.

Edge Banding Production Lines

The conveyor can be customized and integrated into automated woodworking production lines according to machine configuration and workshop layout.

Key Features

Automatic Panel Return

Automatically transfers edge-banded panels back to the operator side for the next edge-banding cycle, reducing manual handling.

10–35 m/min Adjustable Speed

Variable-frequency speed control allows the conveyor speed to be matched with the working cycle of the connected edge banding machine.

Wide Panel Compatibility

Designed for panels from 200 × 200 mm up to 2440 × 1220 mm, with working thicknesses of 10–60 mm.

1,000 kg Total Loading Capacity

The conveyor structure supports a total loading capacity of up to 1,000 kg and a distributed load of up to 80 kg/m.

Space-Saving Return Layout

The return conveyor creates a continuous panel circulation path around the edge banding machine, helping reduce repeated manual transportation.

Flexible Machine Integration

The return line can be customized according to the edge bander model, machine height, panel dimensions and workshop layout.

Aluminum Profile Structure

The main beam uses 40 × 80 mm aluminum profiles for a rigid and modular conveyor structure.

OEM Customization Available

Conveyor length, width and layout can be customized according to the customer’s production requirements.

FAQ

What is a belt conveyor return line for an edge banding machine?

A belt conveyor return line is an automatic panel handling system that returns edge-banded panels to the operator side of an edge banding machine. It is mainly used to reduce manual panel handling during repeated edge-banding operations.

What size panels can the SAMDY return conveyor handle?

The standard configuration supports panels from 200 × 200 mm up to 2440 × 1220 mm, with a working thickness of 10–60 mm.

What is the conveying speed?

The conveyor speed can be adjusted from 10 to 35 m/min using variable-frequency speed control.

Can the conveyor be customized for different edge banding machines?

Yes. SAMDY can customize the conveyor dimensions and layout according to the edge banding machine model, machine height, panel dimensions and workshop space.

How much weight can the return conveyor carry?

The standard configuration supports a distributed loading capacity of up to 80 kg/m and a total loading capacity of approximately 1,000 kg.

Highly efficient

Loading—Edge Sealing—Rotation—Unloading

Eliminates manual handling, increases single-shift productivity by more than 40%, and significantly reduces labor costs.

Customization supported

OEM is available

Compatibility is good: Compatible with any brands of edge banding machines such as Nanxing ,KTD,SCM and other brand edge banding machine, enabling rapid production line upgrades.

Good brand electric components

Inovance

We use high-quality, well-known brand electrical appliances (Inovance) with step less frequency converter speed regulation to adapt to actual processing speed adjustments.
