Surface Planer For Solid Wood Made in Foshan China With Good Price And High Quality

MB504

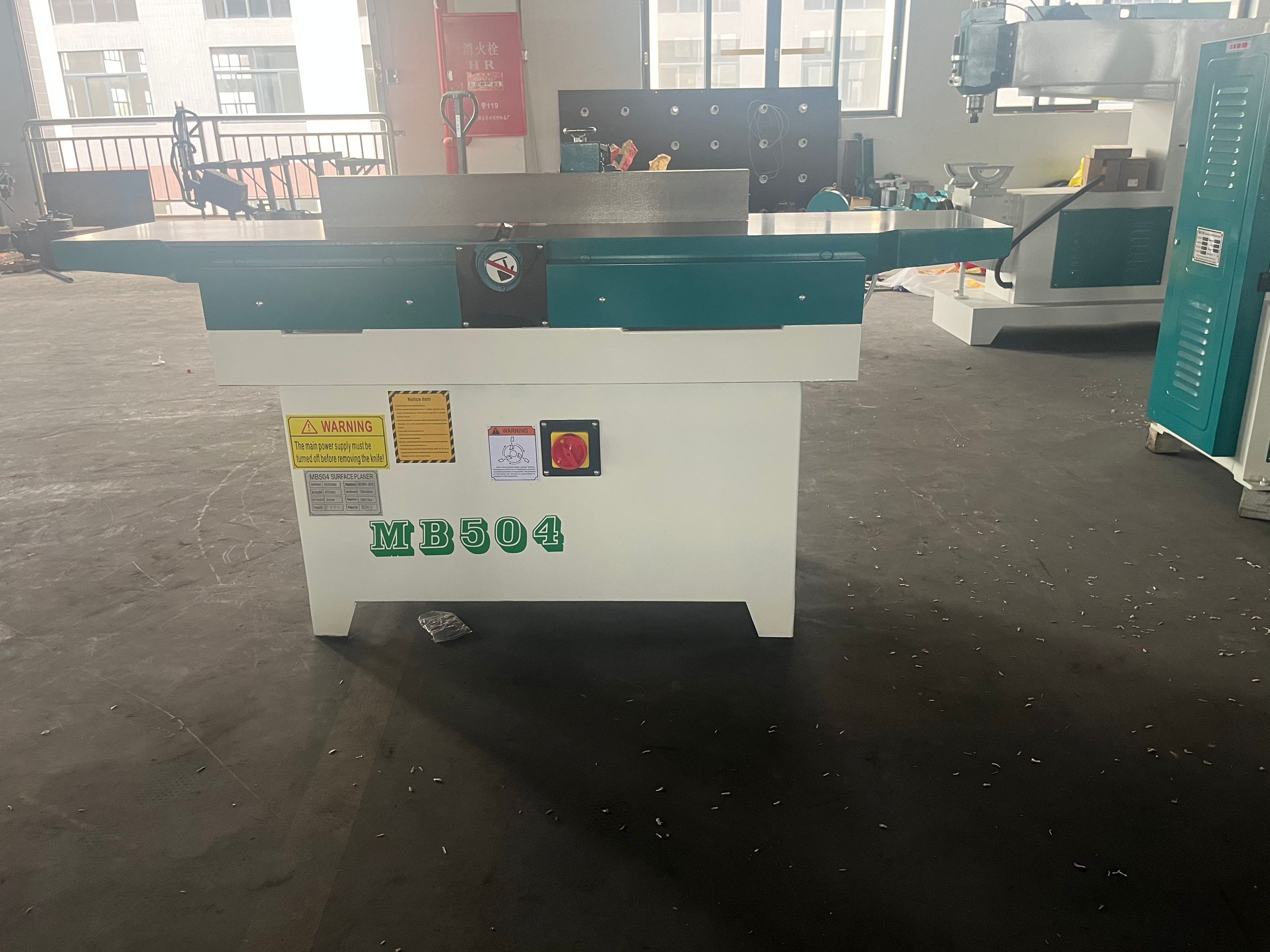

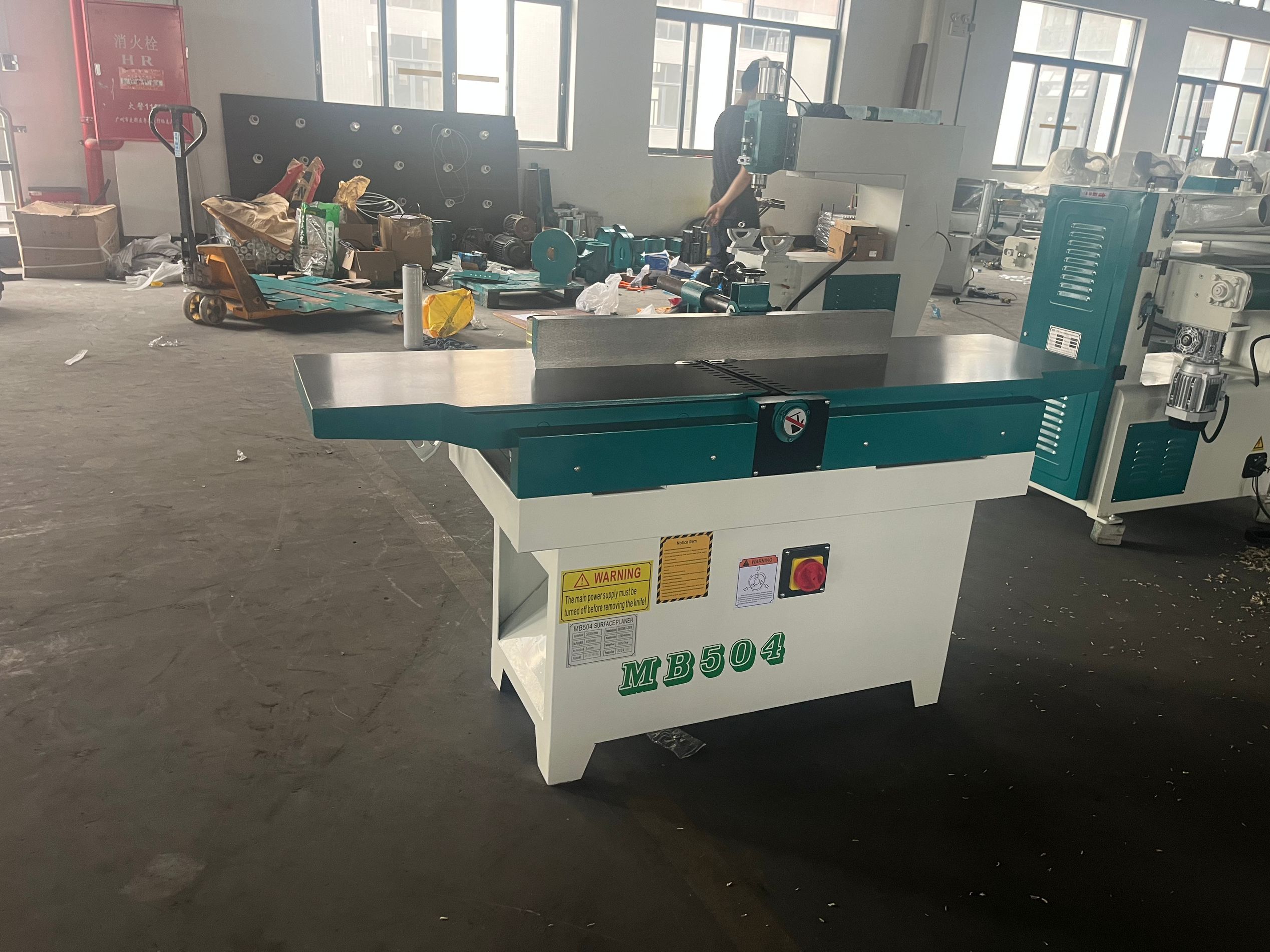

The SAMDY MB504 is a 400mm wood surface planer designed for flattening and straightening solid wood boards. It creates a flat reference surface on rough, warped or uneven timber and can also be used to straighten the edge of a board for subsequent joining or panel assembly.

The machine has a maximum working width of 400mm and a maximum cutting depth of 3mm. With a spindle speed of 5,600 rpm, the MB504 is suitable for preparing solid wood components before thickness planing, edge joining, furniture assembly and other downstream woodworking processes.

Both a conventional flat cutter and a spiral cutter configuration are available. The cutter option can be selected according to the customer’s processing requirements and production conditions.

The MB504 is suitable for solid wood furniture manufacturers, woodworking workshops, door and window manufacturers, timber processing businesses and other applications requiring a flat reference surface and straight board edges.

Technical Specifications

Specification	MB504
Machine Type	Wood Surface Planer
Model	MB504
Application	Solid Wood Surface Planing
Maximum Working Width	400 mm
Maximum Cutting Depth	3 mm
Working Table Size	1790 × 440 mm
Fence Size	880 × 95 mm
Cutter Head	Flat Cutter / Spiral Cutter
Spindle Speed	5,600 rpm
Installed Power	3 kW
Overall Dimensions	1830 × 740 × 1000 mm

function

Solid wood surface planing

Description

Surface planer is a fundamental piece of woodworking equipment. Its core function is to transform a rough, warped, or twisted board surface into a perfectly flat reference plane. It can also be used to straighten the sides of boards for splicing. If a thickness planer is considered a “thickness expert,” then a surface planer is a “reference plane creator.”

What is the difference between a surface planer and a thicknesser planer?

A surface planer is primarily used to create a flat reference surface and straighten the edge of a solid wood board. A thicknesser planer is used to process the opposite surface so that the workpiece reaches a consistent thickness.

In a typical solid wood workflow, the surface planer is used first to establish a flat reference surface. The thickness planer can then be used to bring the board to the required thickness while maintaining a consistent dimension.

For this reason, a surface planer and thickness planer perform complementary functions rather than serving as direct replacements for each other.

Use Scenarios

The MB504 wood surface planer is suitable for workshops and manufacturers that need to flatten, straighten or prepare solid wood before further processing.

Solid Wood Furniture Manufacturing

Used to flatten and prepare solid wood components for tables, chairs, cabinets, beds and other furniture products.

Timber Processing

Suitable for flattening rough or uneven timber and creating a flat reference surface before thickness planing or further machining.

Door and Window Manufacturing

Used to straighten and prepare solid wood components for doors, window frames and other architectural wood products.

Board Joining and Panel Preparation

The edge-straightening function can be used to prepare board edges before gluing and joining multiple solid wood boards into wider panels.

Woodworking Workshops

Suitable for professional woodworking shops processing different types and sizes of solid wood components.

Key Features

400mm Maximum Working Width
The MB504 can process solid wood boards up to 400mm wide, making it suitable for a wide range of furniture and woodworking components.

3mm Maximum Cutting Depth
The machine can remove up to 3mm of material in a single planing operation, subject to the workpiece material and cutting conditions.

Flat or Spiral Cutter Options
Customers can choose between a conventional flat cutter and a spiral cutter according to their processing requirements.

5,600 rpm Spindle Speed
The high-speed cutter spindle provides the cutting performance required for surface planing of solid wood.

Long Working Tables
The 1790 × 440mm working table provides support for workpieces during surface planing and helps the operator maintain stable material movement.

Adjustable Fence
The 880 × 95mm fence supports edge straightening and allows the operator to establish a straight reference edge for subsequent board joining.

Heavy-Duty Machine Structure
The rigid machine body is designed to provide stable support during solid wood surface planing.

FAQ

What is the MB504 wood surface planer used for?

The MB504 is used to flatten solid wood surfaces and straighten board edges before further woodworking operations.

What is the maximum planing width of the MB504?

The maximum working width is 400mm.

What is the maximum cutting depth of the MB504?

The maximum cutting depth is 3mm.

Does the MB504 have a spiral cutter option?

Yes. The machine can be configured with either a conventional flat cutter or a spiral cutter.

Can the MB504 straighten the edge of a wood board?

Yes. The fence can be used to support edge straightening and prepare a straight reference edge for board joining.

What is the difference between a surface planer and a thickness planer?

A surface planer creates a flat reference surface, while a thickness planer processes the opposite surface to achieve a consistent board thickness.

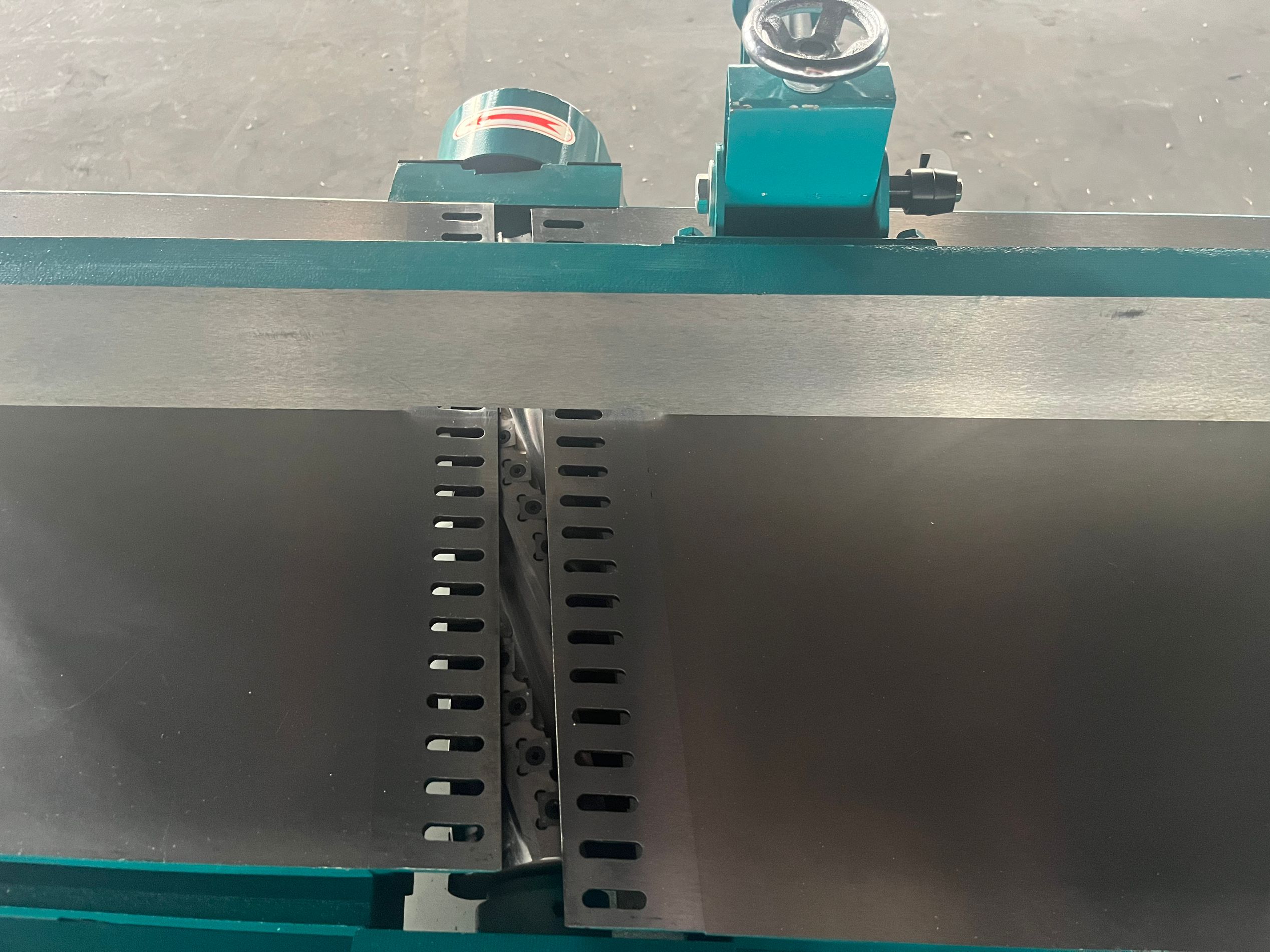

surface planer cutter

Flat planer cutter and spiral cutter are available

The MB504 can be supplied with either a conventional flat cutter or a spiral cutter according to the customer’s production requirements.

Good Quality machine

Heavy duty machine body

Heavy duty machine body ensure machine working stable.
