The SAMDY MX509A Pin Router Machine is a manual vertical woodworking router designed for edge trimming, milling, grooving, profiling and simple shaping of wood components.
With a 3 kW spindle motor, 9000r/min and 18,000 r/min spindle speed and a maximum working thickness of 150 mm, the MX509A is suitable for furniture workshops, cabinet manufacturers, solid wood processing and small-batch woodworking applications.
The machine supports 6.3 mm and 12.7 mm cutter/shaft diameters, allowing users to select suitable cutting tools for different woodworking operations. Both single-speed and double-speed configurations are available.
The MX509A is particularly suitable when flexible manual control is required for edge trimming, template-based profiling, groove milling and shaping of individual wood components.
Technical Specifications
| Specification | MX509A |
|---|---|
| Machine Type | Manual Pin Router Machine |
| Max. Working Thickness | 150 mm |
| Spindle Speed | 900rr/min,18,000 r/min |
| Cutter / Shaft Diameter | 6.3 mm / 12.7 mm |
| Main Motor Power | 3 kW |
| Machine Dimensions | 1450 × 860 × 1750 mm |
| Machine Weight | 350 kg |
| Speed Configuration | Single-speed / Double-speed optional |
| Operation | Manual |
| Main Applications | Edge trimming, milling, grooving, profiling and simple shaping |
function
milling edge ,simple engraving,trimming edge
share:
Description
Compared with a basic handheld router, the MX509A is a floor-standing woodworking machine designed for more stable workshop operation. Its larger working structure and 3 kW motor make it suitable for repeated milling, trimming and profiling operations on wood components.
For customers who need a manual router for small-batch production, custom furniture components or secondary woodworking operations, the MX509A provides a practical alternative to larger CNC routing systems.
Use Scenarios
1. Furniture Component Processing
The MX509A can be used for trimming, profiling, grooving and shaping furniture components made from solid wood and wood-based panels.
2. Cabinet and Door Component Milling
It is suitable for milling edges, grooves and simple profiles on cabinet components, door parts and other wooden components.
3. Template-Based Profiling
For small-batch or customized production, the manual pin router can be used for template-based profiling and repeated shaping of similar wooden parts.
4. Solid Wood Processing
The machine can be used for edge trimming, groove milling and simple shaping of solid wood components.
5. Secondary Processing
The MX509A is suitable for secondary milling and trimming after sawing, cutting or other primary woodworking operations.
6. Small-Batch and Custom Production
Manual control makes the machine suitable for workshops that frequently process customized parts or do not require a full CNC routing system.
Key Features
1. High-Speed Spindle
The MX509A is equipped with a 3 kW spindle motor with double spindle speed of 9000r/min and 18,000 r/min.
The high-speed spindle is designed for woodworking operations such as edge trimming, milling, grooving and profiling, providing a suitable cutting speed for routine wood processing applications.
2. 150 mm Maximum Working Thickness
The machine supports a maximum working thickness of 150 mm.
This working capacity allows the MX509A to process relatively thick wooden components and is suitable for furniture parts, solid wood components and other woodworking applications requiring manual routing and shaping.
3. 6.3 mm / 12.7 mm Cutter Shaft Options
The MX509A supports 6.3 mm and 12.7 mm cutter or shaft diameters.
Different cutter sizes can be selected according to the required woodworking operation, allowing the machine to be used for trimming, grooving, profiling and other milling applications.
4. Manual Operation for Flexible Processing
The MX509A uses a manual operating system, giving operators direct control during routing, trimming, milling and profiling operations.
This configuration is suitable for customized components, small-batch production and woodworking workshops where flexible manual processing is required.
5. Suitable for Furniture and Woodworking Production
The MX509A is designed for woodworking applications including edge trimming, milling, grooving, profiling and simple shaping.
It can be used for furniture components, cabinet parts, solid wood components and other wood-processing applications where a manual pin router is preferred.

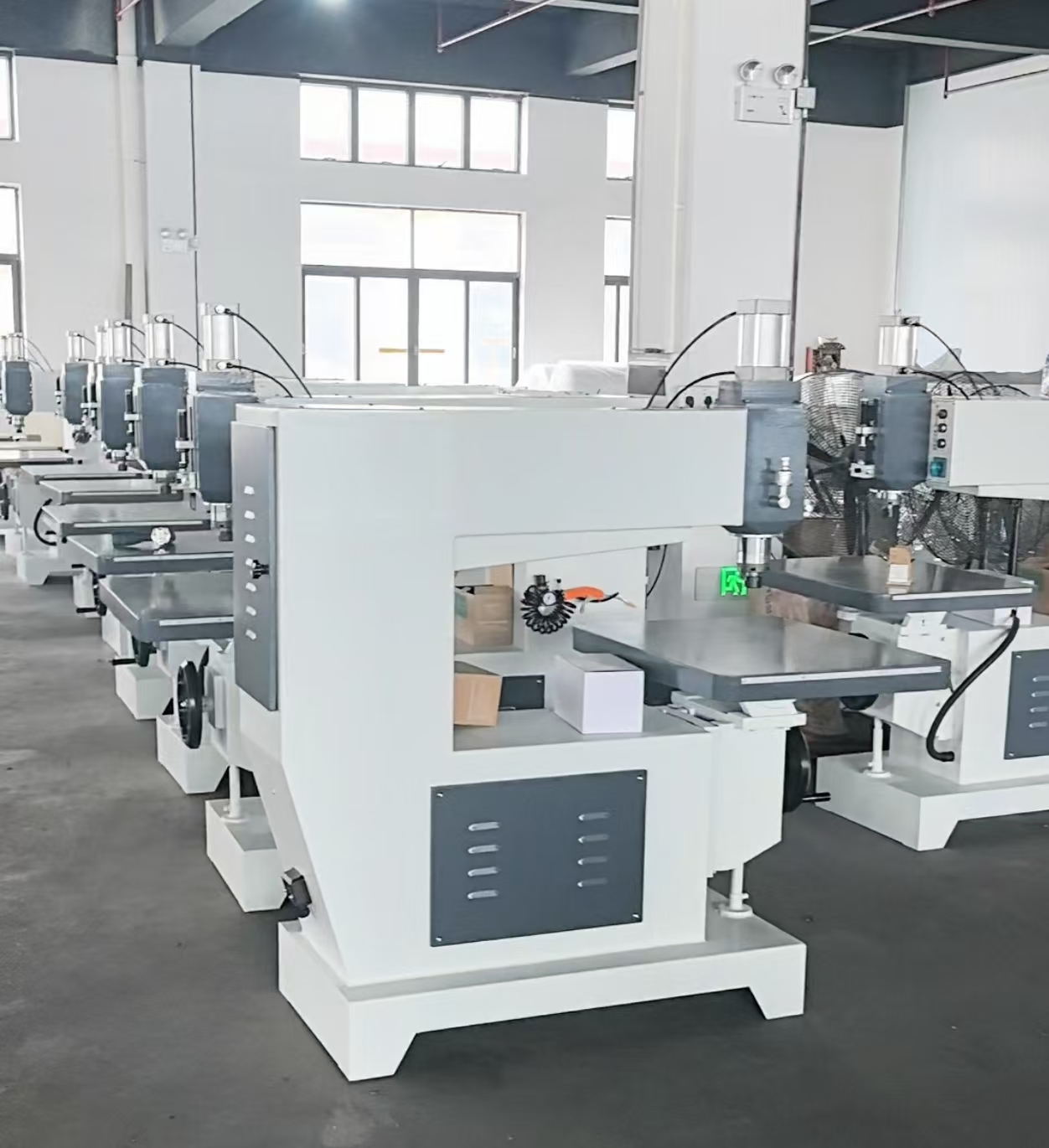

6. Floor-Standing Industrial Structure
With overall dimensions of 1450 × 860 × 1750 mm and a machine weight of approximately 350 kg, the MX509A is designed as a floor-standing woodworking machine rather than a handheld router.
Its fixed machine structure is suitable for installation in professional woodworking workshops and production environments.
FAQ
What is the MX509A pin router machine?
The MX509A is a manual vertical woodworking pin router used for edge trimming, milling, grooving, profiling and simple shaping of wooden components.
What is the maximum working thickness of the MX509A?
The MX509A can process workpieces with a maximum working thickness of 150 mm.
What motor power does the MX509A use?
The MX509A is equipped with a 3 kW spindle motor.
What operations can the MX509A perform?
Typical operations include edge trimming, milling, grooving, profiling and simple shaping of wood components.
Who should use a pin router machine?
A pin router is suitable for furniture manufacturers, cabinet workshops, solid wood processors, woodworking factories and small-batch or customized production where flexible manual routing is required.
Is MX509A a CNC router?
No. The MX509A is a manual woodworking pin router, not a CNC router. It is designed for flexible manual milling, trimming and profiling rather than programmed CNC production.

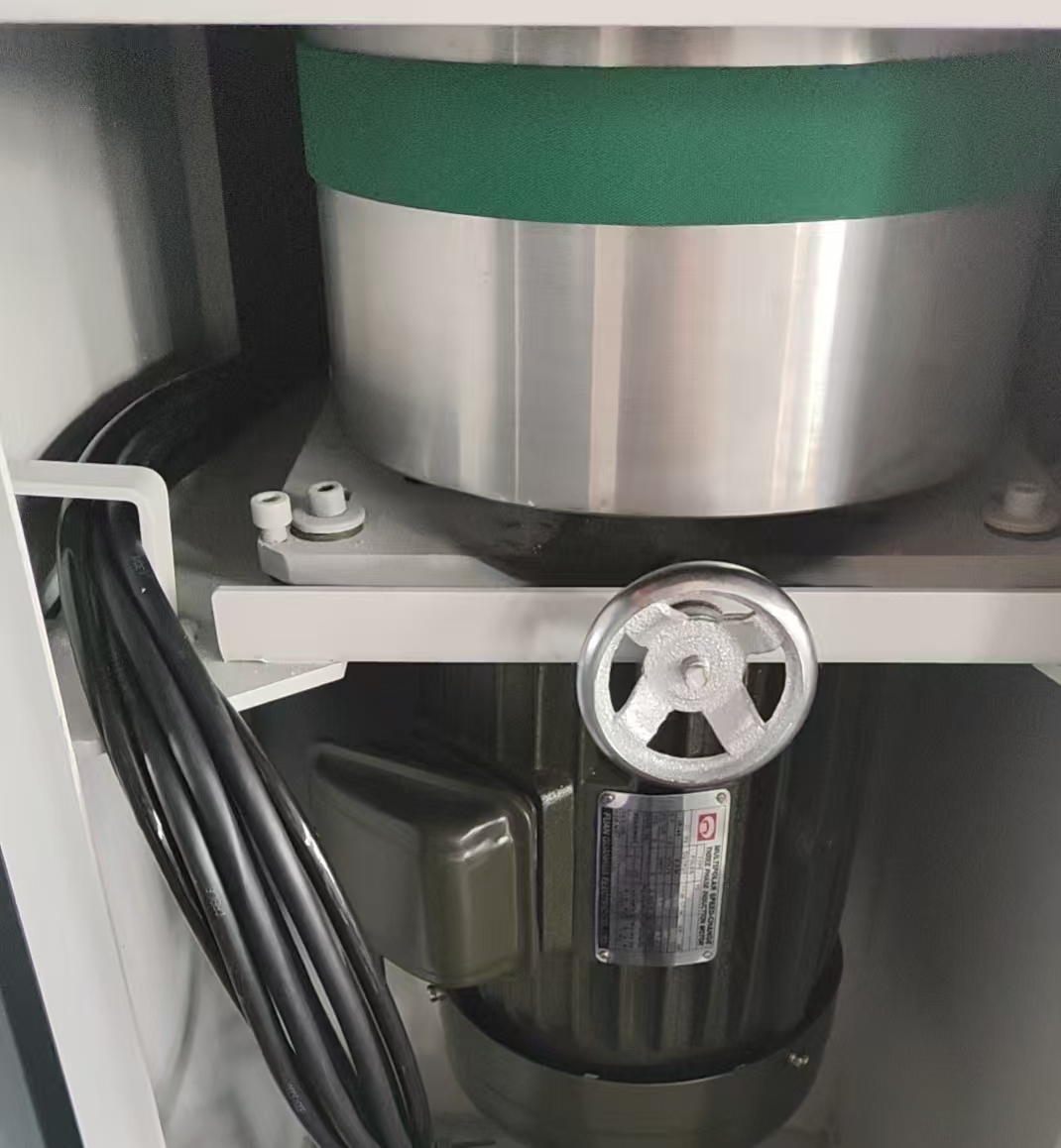

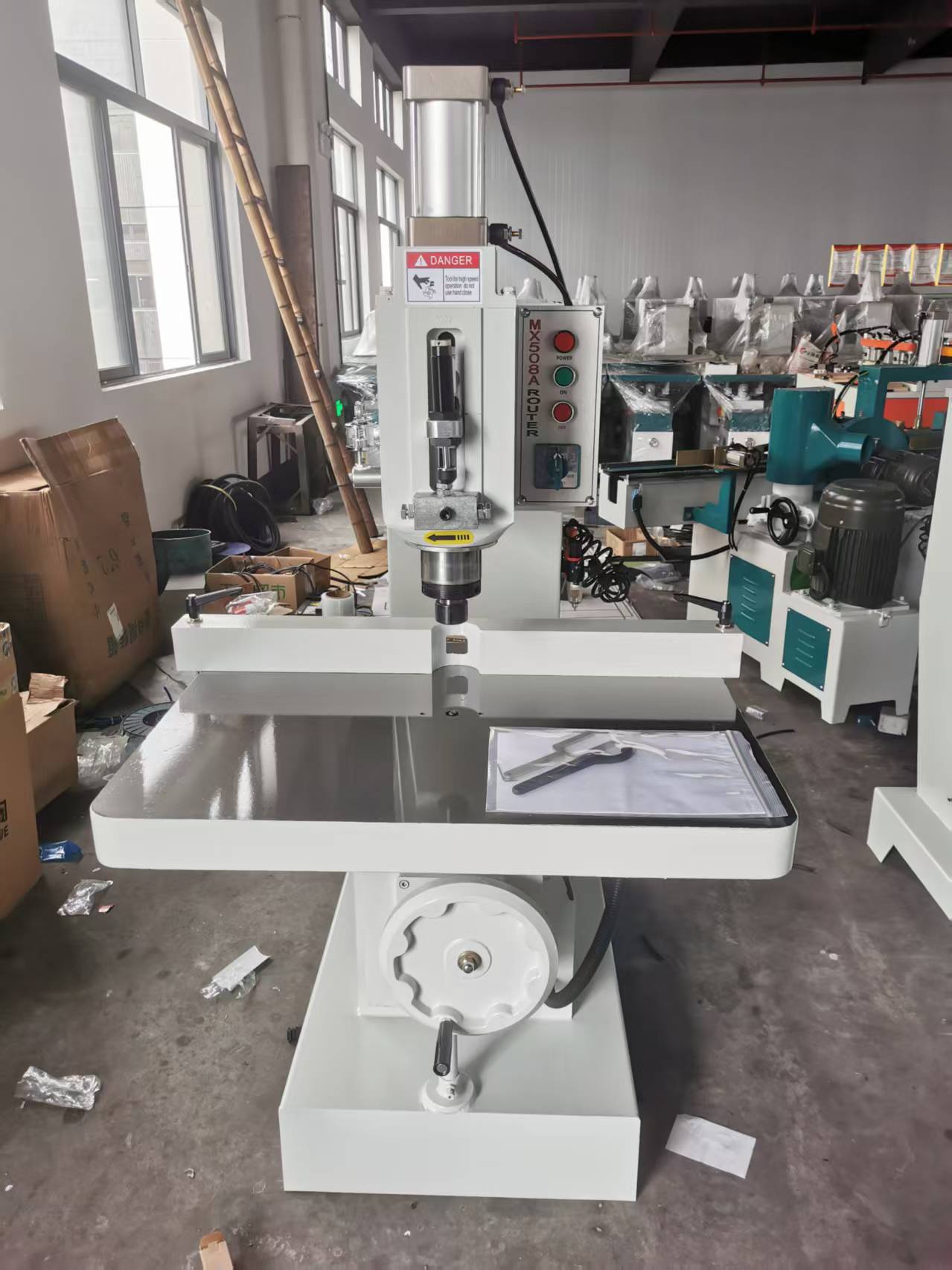

Motor belt hand wheel
easy operation
If you need to adjust motor belt,you can adjust it by hand wheel.
It is convenient to operate.

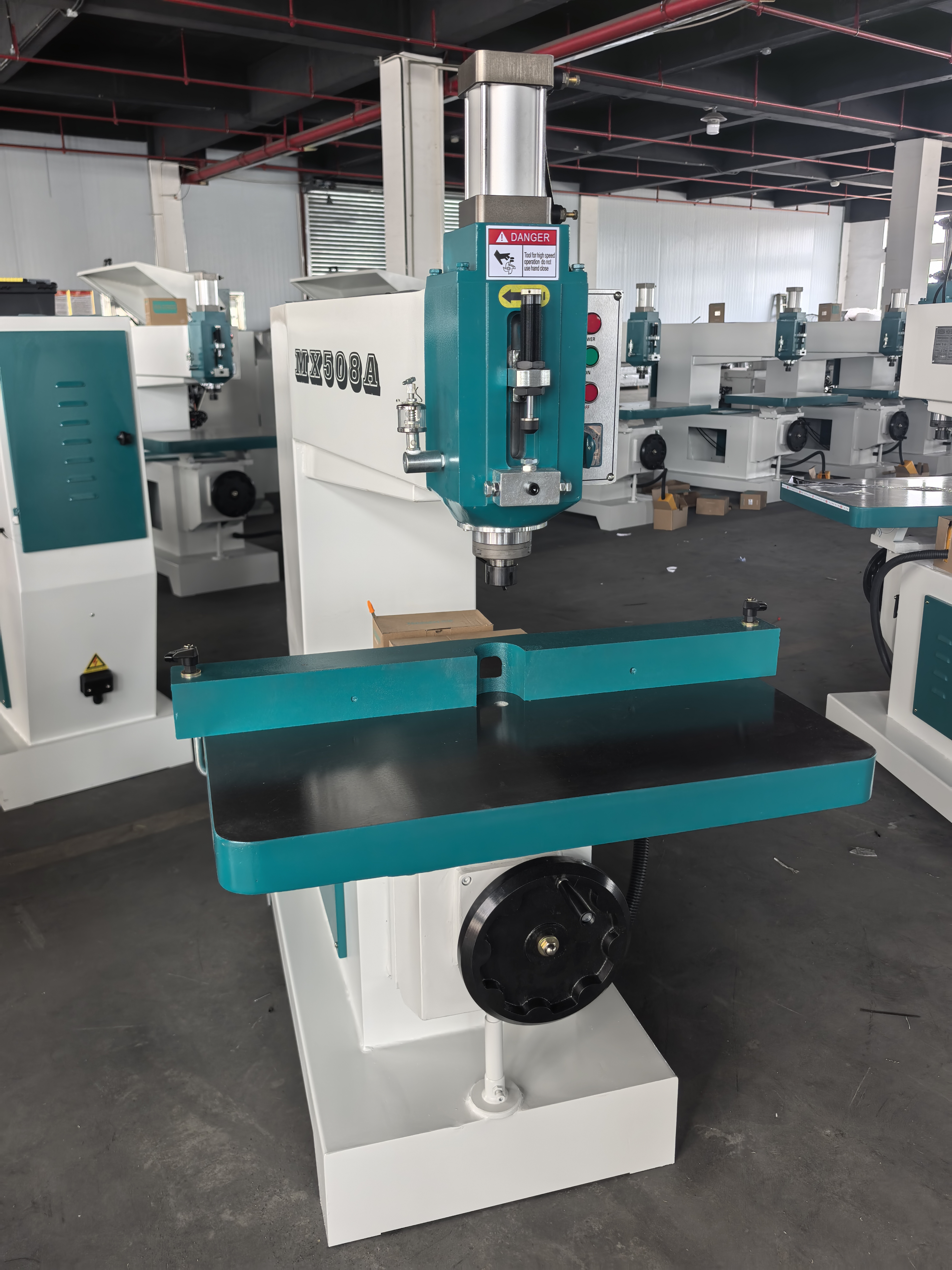

Double speed
9000r/min and 18000r/min
Double speed is widely used,working table side with scales,simple operation.
