12 Heads Automatic Linear Sander Machine 4S4H4W For Solid Wooden Strips
4S4H4W
The SAMDY 4S4H4W is a 12 heads Automatic linear sander machine designed for sanding wood strips and solid wood components. It is suitable for four-side sanding of products such as wooden moldings, door frames, picture frames, furniture components and other linear-shaped workpieces.
The machine supports workpieces with a processing width of 50–150 mm, thickness of 15–100 mm and minimum processing length of 680 mm. Its variable-frequency feeding system provides a feeding speed of 3–40 m/min, allowing the sanding process to be adjusted according to the workpiece and abrasive requirements.
With multiple sanding heads, adjustable sanding-head angles and pneumatic material pressing, the 4S4H4W is designed for continuous automated sanding where consistent surface finishing and production efficiency are required.
Technical Specifications
| Specification | 4S4H4W |
|---|---|
| Machine Type | 12-Head Automatic Linear Sander |
| Model | 4S4H4W |
| Main Application | Four-Side Sanding of Wood Strips and Solid Wood Components |
| Processing Width | 50–150 mm |
| Processing Thickness | 15–100 mm |
| Minimum Processing Length | 680 mm |
| Feeding Speed | 3–40 m/min |
| Feeding Motor Power | 4.95 kW |
| Triangular Sanding Frame Motors | 4 × 3 kW |
| Triangular Sanding Frame Swing Motors | 4 × 0.09 kW |
| Dual-Purpose Sanding Frame Motors | 4 × 2.2 kW |
| Grinding Head Motors | 2 × 2.2 kW + 2 × 1.5 kW |
| Spindle Configuration | 6 Sets |
| Sanding Belt Size | 1680 × 170 mm / 1680 × 120 mm |
| Sanding Belt Size for Dual-Purpose Frame | 1010 × 150 mm |
| Spindle Adjustable Angle | 0°–180° |
| Maximum Grinding Wheel Size | 200 × 150 mm |
| Dust Outlet Diameter | 98 mm |
| Working Pressure | 0.6 MPa |
| Total Power | 33.51 kW |
| Electrical Box Size | 1130 × 550 × 1500 mm |
| Machine Size | 8800 × 1500 × 1600 mm |
function
share:
Description
The 4S4H4W uses a continuous feeding process. The wooden workpiece is fed through the machine while different sanding heads perform surface processing at different positions.
The sanding heads can be arranged and adjusted according to the workpiece profile. Depending on the required finish, the machine can combine sanding belts, sanding wheels and other abrasive tools.
During operation, the pneumatic pressing system helps stabilize the workpiece, while variable-frequency feeding allows the operator to adjust the processing speed according to the material, abrasive and sanding requirements.
The 4S4H4W is designed for linear solid wood components with a processing width of 50–150 mm, thickness of 15–100 mm and minimum length of 680 mm. Typical applications include wooden strips, door frames, picture-frame moldings, furniture components and decorative wood trim.
Use Scenarios
Wooden Door Frames
The 4S4H4W can be used for continuous sanding of wooden door frame components, helping prepare surfaces before painting, coating or further finishing.
Picture Frame Moldings
The machine is suitable for sanding linear picture-frame moldings and other decorative wooden profiles that require consistent surface preparation.
Furniture Components
It can process linear furniture components such as wooden strips, furniture legs and other solid wood parts within the specified processing dimensions.
Wood Moldings and Trim
The multiple sanding heads can be configured for sanding different surfaces of wood moldings and decorative trim in a continuous production process.
Solid Wood Components Before Painting
The machine can be used for sanding solid wood components before painting, as well as sanding surfaces after primer application when the abrasive configuration is suitable for the process.
Key Features
12 Sanding Heads
Multiple sanding heads allow different sanding operations to be combined in one continuous feeding process.
Four-Side Sanding
Designed to process multiple surfaces of linear wood components during a single feeding operation.
3–40 m/min Variable Feeding Speed
The frequency-controlled feeding system allows the sanding speed to be adjusted according to the workpiece and sanding process.
Adjustable Sanding-Head Angle
Sanding heads and frames can be adjusted according to different workpiece profiles and sanding requirements.
Automatic Sanding Compensation
The sanding heads are equipped with an automatic compensation function to help maintain consistent contact with the workpiece.
Pneumatic Material Pressing
Pneumatic pressing helps keep the workpiece stable during continuous sanding.
Automatic Sanding Belt Oscillation
The sanding frame provides belt oscillation to help maintain consistent sanding performance across the workpiece surface.
PLC and Touch-Screen Control
Centralized control simplifies machine adjustment and operation.
Multiple Abrasive Options
Different sanding belts, wheels and abrasive tools can be configured according to the shape and surface requirements of the workpiece.
FAQ
What is the 4S4H4W 12 heads Automatic linear sander machine used for?
The 4S4H4W is designed for automatic sanding of linear solid wood components such as wooden strips, door frames, picture-frame moldings, furniture components and decorative wood trim.
How many sanding heads does the machine have?
The 4S4H4W is configured with 12 sanding heads for multi-stage and multi-surface sanding.
What workpiece sizes can the machine process?
The specified processing width is 50–150 mm, processing thickness is 15–100 mm, and the minimum processing length is 680 mm.
What is the feeding speed?
The feeding speed is adjustable from 3 to 40 m/min through frequency conversion.
Can the machine sand four sides of a workpiece?
Yes. The machine is designed for multi-surface and four-side sanding of suitable linear workpieces during continuous feeding.
What types of wood products can be processed?
Typical applications include wooden strips, door frames, picture-frame moldings, furniture components and decorative wood profiles.
Sanding heads

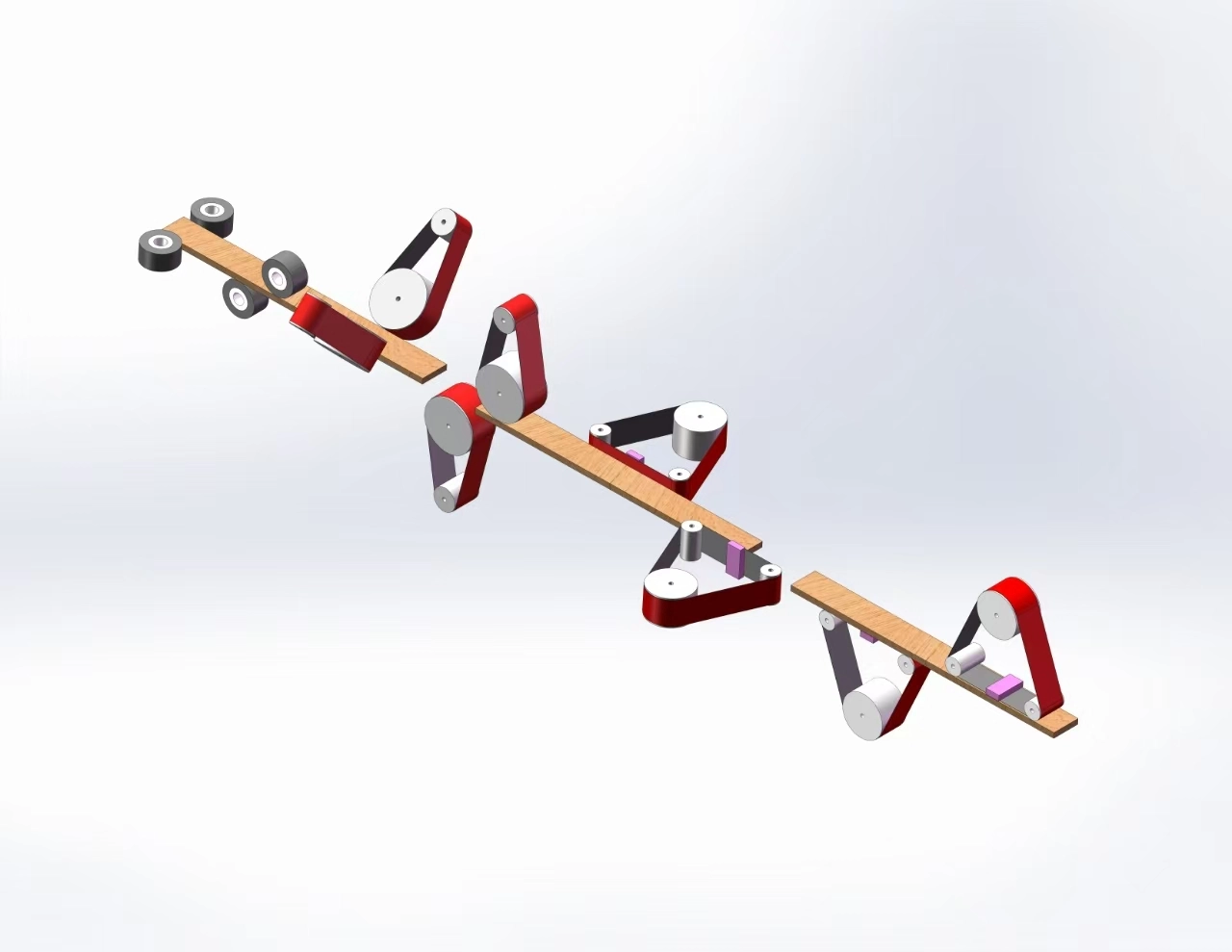

12 sanding heads layout
Different sanding heads matched together to achieve processing different shape working pieces.
400 triangle sanding head
Sanding belt
The sanding belt has an automatic swing function; the pressing module can imitate the sanding of special-shaped straight edges; and it has an automatic telescopic function to protect the head and tail of the workpiece; the operation is simple, and more features: the grinding amount is the strongest, and the flatness is the best
Sponge sanding head
Dual usage
The sanding head is compatible with the universal standard grinding wheel. It can be equipped with brush sand rollers, octagonal sand, grinding wheels, polishing wheels and other abrasives to implement all-round and diversified sanding of special-shaped parts. It is easy to operate and convenient to replace sanding belts and abrasives. It also has an automatic telescopic function to protect the head and tail of the workpiece, and automatic compensation using grinding wheels. Features: good versatility for processing surfaces, strong abrasive matching, and can sand any special-shaped surface.
Heavy duty machine body
Machine advantage
According to different process requirements, various sand heads can be freely arranged and configured
◆ Sand head and sand rack can be adjusted from -90° to +90°, suitable for linear profiling sanding
◆ Sand rack has an oscillation device, sand head has automatic compensation function, induction advance and retreat function, to ensure that the workpiece head and tail are not sanded through or rounded
◆ Pressing material adopts pneumatic pressing material, spring load, reliable pressing material, no damage to the workpiece.
◆ PLC precise control, easy adjustment.
◆ Conveying and sand belt speed adopt frequency conversion speed regulation to suit the corner sanding of different wood products; (white embryo, primer)
◆ Different power motors and abrasives of various shapes and functions can be selected according to different shapes
Sanding material
Sanding belt and sanding sponge
It can meet different working shapes’s requirement.
Working piece shape
4 sides sanding
Sanding head and sand rack can be adjusted from -90° to +90°, suitable for different shapes.
