Single Head Hinge Drilling Machine MZ4221 for Cabinet Doors

MZ4221

The SAMDY MZ4221 Single Head Hinge Drilling Machine is a dedicated woodworking machine for drilling concealed cup hinge holes on cabinet doors and other panel furniture components.

It is designed for furniture manufacturers that need repeatable hinge hole drilling for cabinet doors, wardrobes, bookcases, TV cabinets and other panel furniture with concealed hinges.

The machine can perform hinge hole drilling, top hole drilling and side hole drilling according to the machine configuration and required processing operation. Its single-head configuration provides a dedicated solution for manufacturers that mainly need hinge drilling rather than a multi-function CNC machining system.

The MZ4221 has a maximum drilling depth of 60 mm, spindle speed of 2840 r/min and maximum processing length of 1000 mm. With a compact machine size of 750 × 750 × 1000 mm and a machine weight of approximately 100 kg, it is suitable for furniture workshops and production environments where a dedicated hinge drilling machine is required.

For manufacturers that need multiple drilling operations, side drilling, grooving or CNC-controlled processing, SAMDY also provides other panel furniture drilling solutions.

Technical Specifications

Technical Parameter	Specification
Model	MZ4221
Machine Type	Single Head Hinge Drilling Machine
Max. Drilling Depth	60 mm
Spindle Speed	2840 r/min
Max. Processing Length	1000 mm
Machine Size	750 × 750 × 1000 mm
Machine Weight	100 kg

function

Concealed Cup Hinge Holes

The main application of the MZ4221 is drilling cup-shaped concealed hinge holes on cabinet doors and other suitable furniture panels.

Top Holes

The machine can be configured for top hole drilling according to the required furniture component and processing method.

Side Holes

Side hole drilling is also listed as one of the machine’s functions and can be used for suitable panel furniture components.

Multi-Hole Drilling

The machine can perform repeated drilling operations according to the required hole pattern and machine configuration.

Description

Single head hinge drilling machine is a woodworking machine designed to drill hinge mounting holes in furniture panels, especially cabinet doors.

For panel furniture, concealed cup hinges require accurately positioned circular cup holes on the cabinet door. A dedicated hinge drilling machine is designed specifically for this operation.

The MZ4221 uses a single drilling head for dedicated hinge hole processing. Depending on the machine configuration, it can also be used for related top and side hole drilling operations.

Compared with a general-purpose drilling machine, a dedicated hinge drilling machine is focused on the hole drilling requirements associated with cabinet and panel furniture hinge installation.

Use Scenarios

Cabinet Manufacturing

The MZ4221 is suitable for drilling concealed hinge holes on cabinet doors during panel furniture production.

Wardrobe Manufacturing

Suitable for wardrobe doors and other furniture panels that require concealed hinge installation.

Panel Furniture Production

The machine can be used for cabinet doors, bookcase doors, TV cabinet doors and other panel furniture components.

Custom Furniture Workshops

Suitable for custom furniture manufacturers processing different cabinet door sizes and hinge positions.

Furniture Component Processing

The machine can be used for repeated hinge hole drilling on suitable wooden and panel furniture components.

Key Features

1. Dedicated Hinge Hole Drilling

The MZ4221 is specifically designed for concealed hinge hole drilling on cabinet doors and panel furniture components.

2. Single Drilling Head

The single-head configuration provides a dedicated solution for furniture manufacturers whose main requirement is hinge hole processing.

3. 60 mm Maximum Drilling Depth

The machine provides a maximum listed drilling depth of 60 mm.

4. 2840 r/min Spindle Speed

The spindle speed is 2840 r/min according to the listed machine specification.

5. Compact Machine Design

With a machine size of 750 × 750 × 1000 mm, the MZ4221 is designed for production environments where machine footprint is an important consideration.

6. Suitable for Panel Furniture

The machine is designed for cabinet doors, wardrobes and other panel furniture components requiring concealed hinge holes.

FAQ

What is the MZ4221 single head hinge drilling machine?

The MZ4221 is a woodworking machine designed mainly for drilling concealed cup hinge holes on cabinet doors and other panel furniture components.

What is a single head hinge drilling machine used for?

It is mainly used for drilling hinge mounting holes in cabinet doors, wardrobes and other panel furniture components that use concealed hinges.

What type of hinge holes can the MZ4221 drill?

The machine is designed for concealed cup hinge hole drilling. The exact hinge hole dimensions and tooling should be confirmed according to the customer’s hinge specification.

Can the MZ4221 drill cabinet door hinge holes?

Yes. Cabinet door hinge hole drilling is the main application of this machine.

What is the spindle speed?

The listed spindle speed is 2840 r/min.

Is the MZ4221 a CNC machine?

No. The MZ4221 is a dedicated single-head hinge drilling machine rather than a full CNC machining center.

What is the difference between a hinge drilling machine and a CNC drilling machine?

A hinge drilling machine is designed mainly for hinge hole processing, while a CNC drilling machine can provide a wider range of programmed drilling operations. The appropriate machine depends on the customer’s hole pattern, production volume and machining requirements.

Is the MZ4221 suitable for custom furniture production?

Yes. It can be used in custom furniture workshops for repeated concealed hinge hole drilling on cabinet doors and other furniture components.

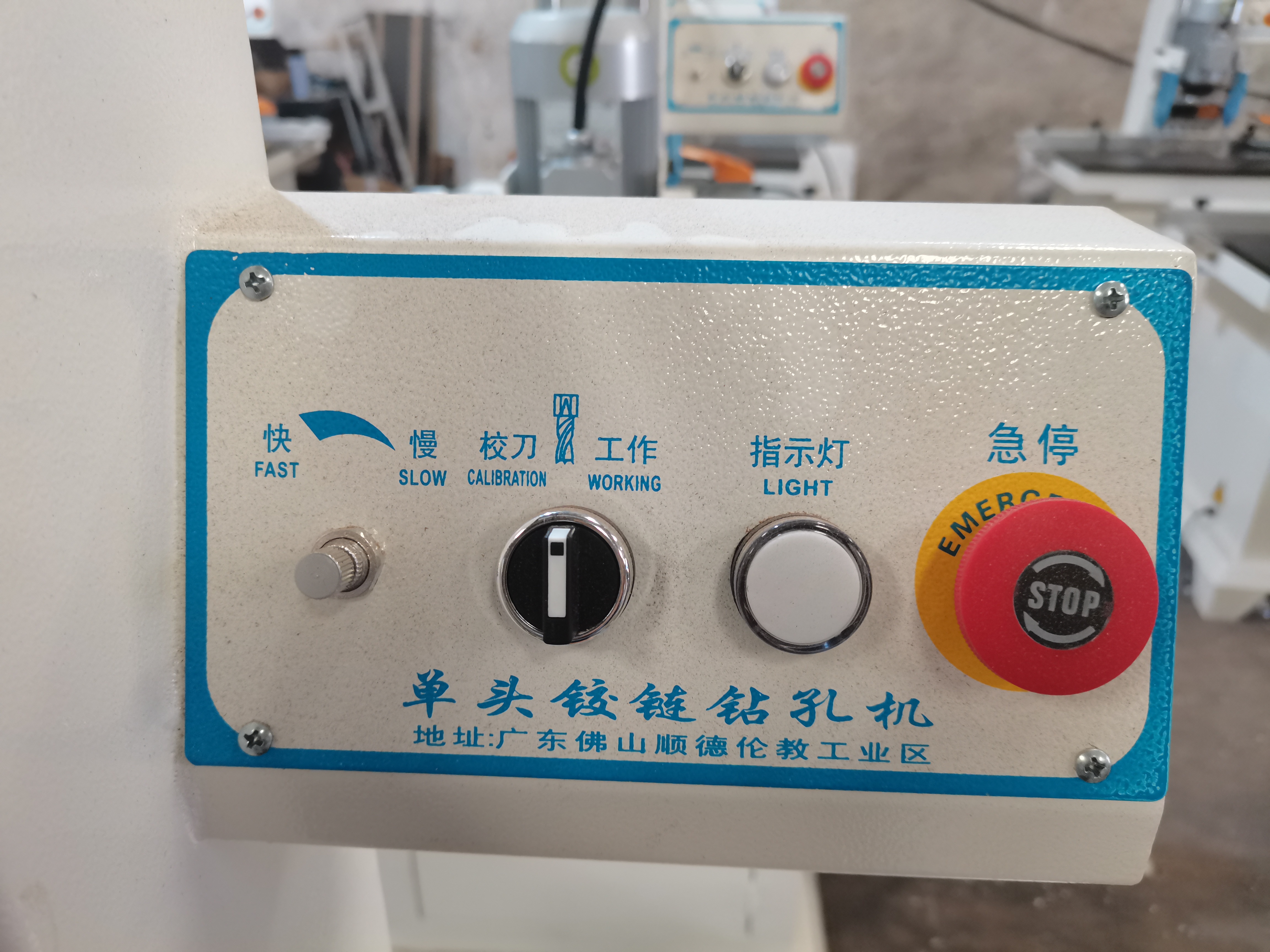

MZ4221 Hinge Drilling Machine Control Panel

simple operation

The MZ4221 uses a straightforward control panel for basic drilling operations, making it easy for operators to start, stop and adjust the machine according to the required drilling process.

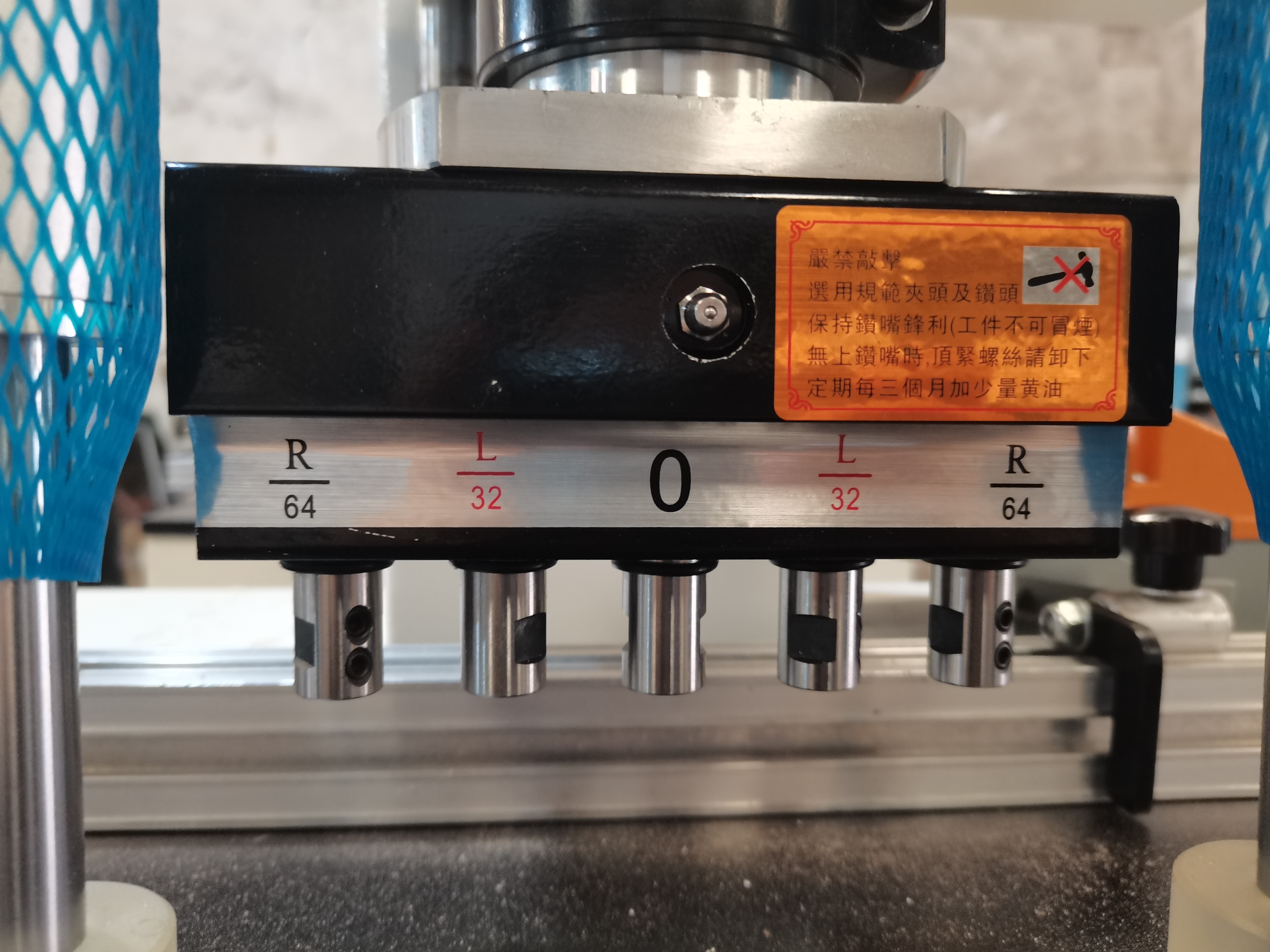

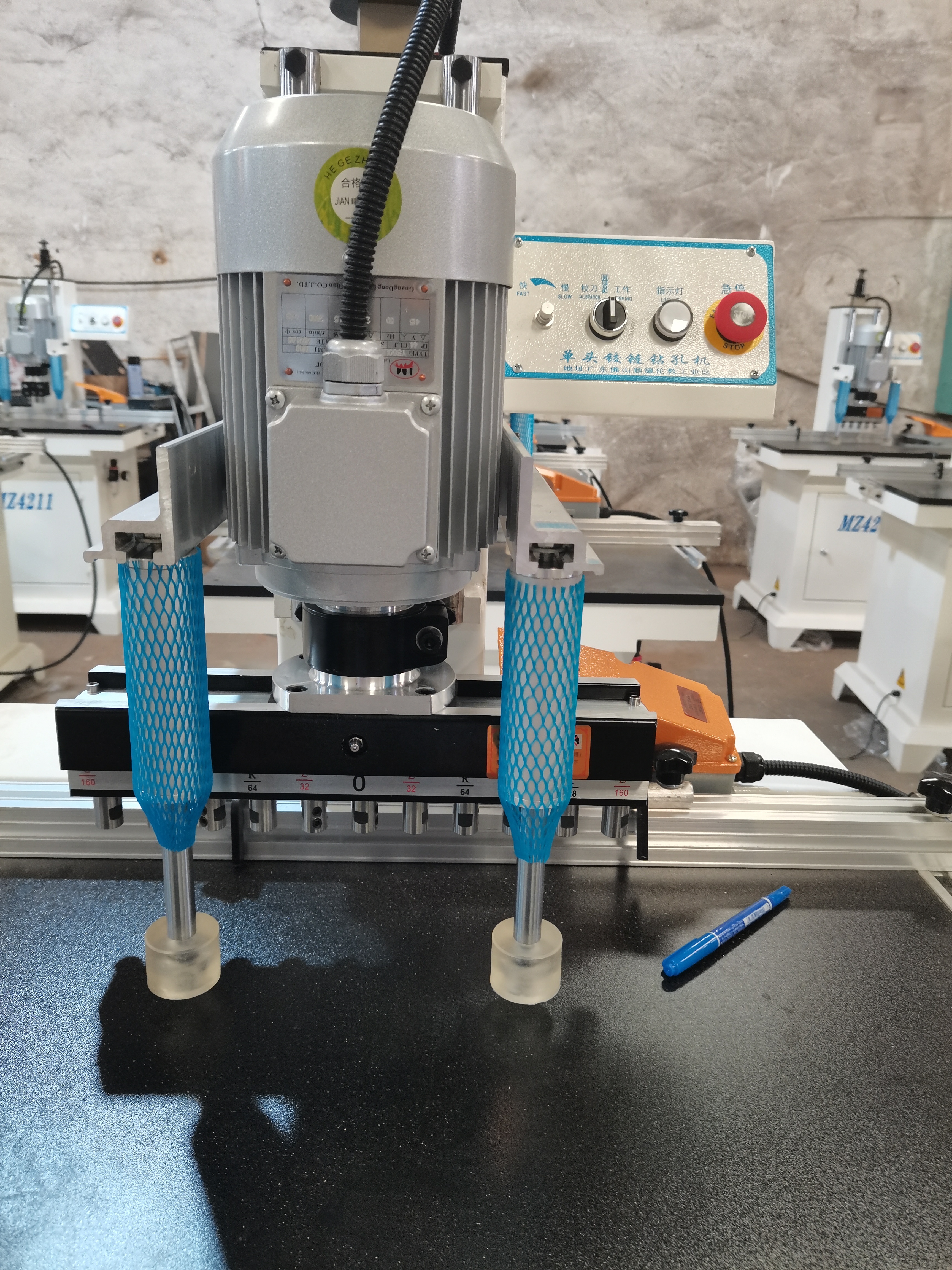

Multiple Drill Bit Head for Top Hole Drilling

Top drill

The machine can be configured with multiple drill bits for top-hole drilling according to the required processing application.

Compact Machine Design

exporting quality

The MZ4221 has a compact footprint of 750 × 750 × 1000 mm and a machine weight of approximately 100 kg, making it suitable for workshops where dedicated hinge drilling equipment is required.
