Two Rows Drilling Machine For Wood Panel Furniture

Z2F

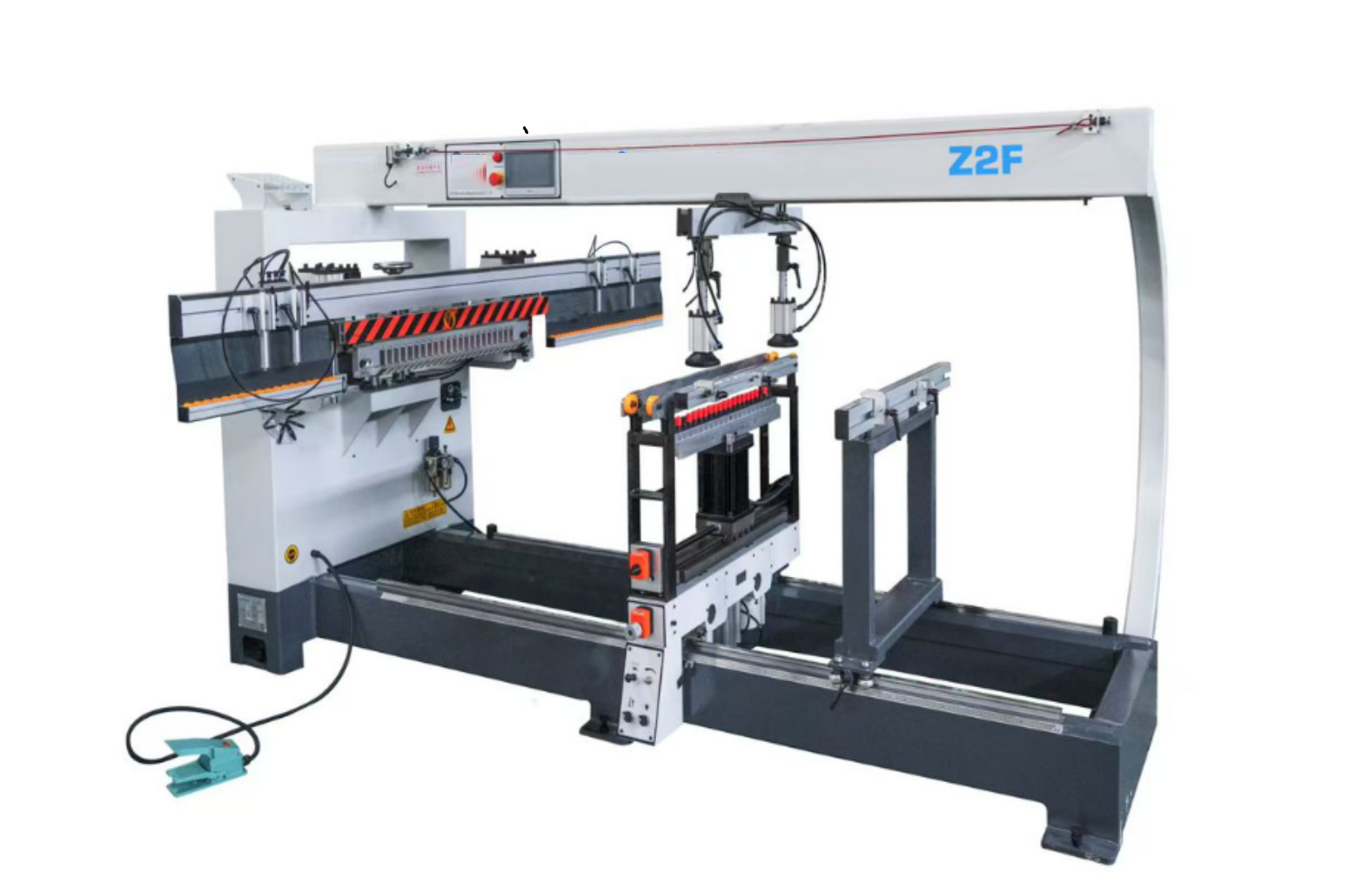

The SAMDY Z2F is a two rows multi-spindle drilling machine designed for panel furniture and woodworking production. It is suitable for manufacturers that need efficient and repeatable drilling of multiple holes on cabinet panels, wardrobe components, shelves and other furniture panels.

The Z2F uses a two-row drilling configuration and is designed for horizontal and vertical drilling operations. It can be used for common panel furniture drilling requirements, including connection holes, shelf support holes, hardware installation holes and standardized 32 mm system applications.

With a maximum drilling depth of 60 mm, a spindle speed of 2840 rpm and a total motor power of 3 kW, the Z2F provides a practical drilling solution for furniture manufacturers looking for a relatively compact and economical multi-spindle drilling machine.

Compared with a three rows drilling machine, the Z2F has a simpler drilling configuration and can be considered when the production mainly involves standard drilling operations and does not require the additional drilling row of a larger multi-spindle machine.

Technical Specifications

Specification	Details
Model	Z2F
Maximum Drilling Diameter	35 mm / 13 mm
Maximum Drilling Depth	60 mm
Maximum Processing Size	1250 × 640 mm
Minimum Processing Size	130 × 32 mm
Maximum Processing Length	1250 mm
Minimum Processing Length	130 mm
Drilling Shafts	21 × 2
Drilling Head Pitch	10 mm
Total Motor Power	3kW
Spindle Speed	2840 rpm
Overall Dimensions	2400×1080×1400mm
Machine Weight	610 kg

function

Vertical Drilling

The Z2F is designed for vertical drilling operations on panel furniture components, including shelf holes, connection holes and other standardized furniture holes.

Horizontal Drilling

The horizontal drilling function allows the machine to process holes on the sides or ends of suitable furniture panels for connection and assembly requirements.

Multi-Spindle Drilling

The multi-spindle configuration allows multiple holes to be processed during the same operation, reducing repeated manual drilling and panel repositioning.

32 mm System Drilling

The Z2F can be used for panel furniture applications based on standardized 32 mm hole layouts when the workpiece and drilling configuration match the required hole pattern.

Description

The Z2F two rows drilling machine is designed for repetitive drilling operations in panel furniture manufacturing. Its multi-spindle configuration allows multiple holes to be processed efficiently, making it suitable for cabinet and furniture components that require repeated hole positions.

Cabinet Panel Drilling

The Z2F can be used for drilling cabinet side panels, shelves and other furniture components where multiple connection or system holes are required.

Hardware Installation Holes

The machine can be used for suitable drilling operations related to furniture hardware installation, including holes for hinges, shelf supports, connectors and other components according to the workpiece design.

Panel Furniture Connection Holes

The Z2F is suitable for processing holes used to connect and assemble panel furniture components.

Standardized Hole Layouts

The machine can be used for standardized drilling applications such as 32 mm system hole layouts when the required hole pattern matches the machine configuration.

Use Scenarios

1. Two-Row Multi-Spindle Configuration

The Z2F uses a two-row drilling configuration designed for efficient multi-hole processing on panel furniture components.

2. 42 Drill Spindles

With 21 drill spindles in each of two rows, the machine provides 42 drill spindles for repetitive panel drilling applications, subject to the confirmed machine configuration.

3. Horizontal and Vertical Drilling

The Z2F supports horizontal and vertical drilling operations for different furniture connection and assembly requirements.

4. 60 mm Maximum Drilling Depth

The machine provides a maximum drilling depth of 60 mm for suitable woodworking panel applications.

5. 3 kW Motor Power

The total motor power is 3 kW, providing a practical configuration for standard panel furniture drilling applications.

6. Compact Machine Structure

With overall dimensions of approximately 2400 × 1080 × 1400 mm and a machine weight of about 610 kg, the Z2F is suitable for manufacturers looking for a relatively compact multi-spindle drilling solution.

Key Features

1. High-Efficiency Production
The double-row drill bits can operate simultaneously, completing multiple holes in a single pass, resulting in several times higher efficiency than single-row drills or manual drilling.
2. High Precision and Stability
Utilizing servo motors, guide rails, and CNC technology, it ensures hole position accuracy (error typically controlled within ±0.1mm), making it suitable for standardized furniture production.
3. Flexibility
Drilling distance, number of rows, and depth can be adjusted according to requirements, adapting to different board sizes and hole designs.
4. Reduced Labor Costs
Automated operation reduces reliance on skilled workers; one person can operate multiple machines, reducing labor intensity.
5. Strong Adaptability
It can be combined with other woodworking machinery (such as panel saws and edge banding machines) to form a production line, achieving automated assembly line operation.

FAQ

What is a two rows drilling machine?

A two rows drilling machine is a multi-spindle woodworking machine designed to process multiple holes on panel furniture components. It can be used for standard connection holes, shelf holes, hardware installation holes and other furniture drilling applications.

What is the Z2F two rows drilling machine used for?

The Z2F is mainly designed for panel furniture and woodworking applications, including cabinets, wardrobes, office furniture, shelves and other panel-based furniture components.

How many drilling spindles does the Z2F have?

The Z2F is described as using two rows with 21 drill spindles per row, giving a total of 42 drill spindles. The final spindle configuration should be confirmed according to the machine’s actual technical specification.

What is the maximum drilling depth of the Z2F?

The maximum drilling depth is 60 mm according to the current technical specification.

What materials can the Z2F process?

The Z2F is designed for woodworking panel applications and can be used for suitable materials such as MDF, particle board and other engineered wood panels according to the material and machine configuration.

What is the difference between a two rows and three rows drilling machine?

The main difference is the number of drilling rows and the available drilling configuration. The Z2F uses a two-row configuration, while the Z3A uses three drilling rows and a larger multi-spindle configuration. The appropriate machine depends on the required hole pattern, production volume, panel dimensions and processing requirements.

Guide Rail and Machine Structure

High quality guide rail

The Z2F uses a robust machine structure designed for stable panel positioning during woodworking production. Its practical working area makes it suitable for loading and processing furniture panels

Machine Body

Large size machine bodu

Big machine body (same as normal 3 rows drilling machine)provides bigger working size, it is more easily to put wood panels on machine .

Side horizontal drilling head

side drilling hole

It can achieve horizontal and vertical drilling at once.
