Panel Lifting Table for Woodworking Production Lines

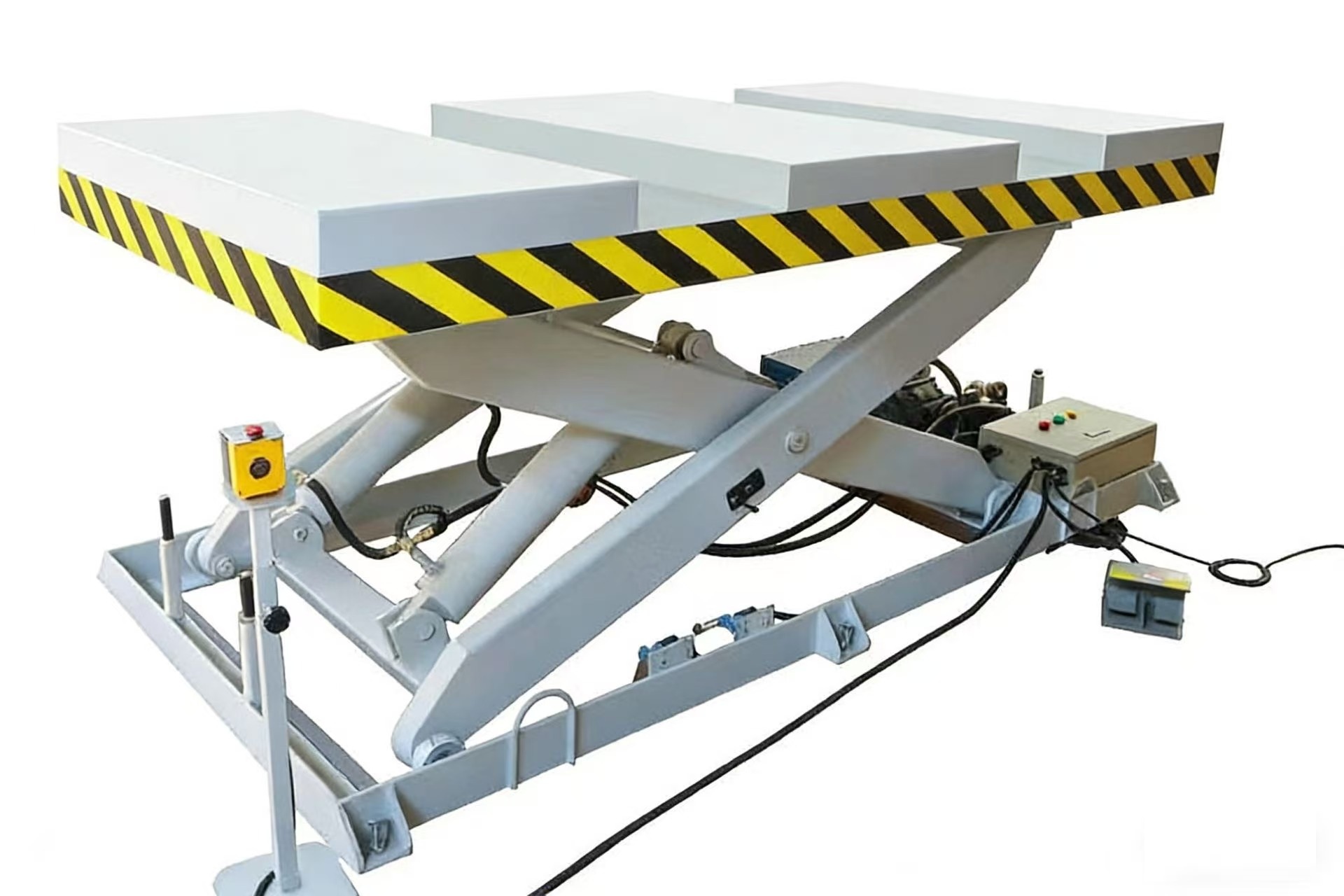

The SAMDY Panel Lifting Table is designed for loading, unloading and stacking wood panels in automated and semi-automated woodworking production lines.
The lifting table can be used as a material handling unit before or after equipment such as computer beam saws, edge banding machines, CNC woodworking machines and other panel processing equipment.
The platform lifts or lowers the panel stack to maintain a suitable working height for operators or automatic handling equipment. This helps simplify panel handling between different production processes and can reduce repeated manual lifting and repositioning of heavy panels.
The standard configuration has a 3,000 kg maximum loading capacity, a 1200 × 2500 mm table size, 0.75 kW motor power, a 300 mm minimum height and a 1,000 mm lifting height. Loading capacities of 1,000 kg, 2,000 kg and 3,000 kg are available according to production requirements.
The lifting table is suitable for furniture factories, cabinet manufacturers, woodworking factories and panel processing lines that require organized material loading, unloading and stacking.
Technical Specifications
| Specification | Configuration |
|---|---|
| Machine Type | Wood Panel Lifting Table |
| Maximum Loading Capacity | 3,000 kg |
| Available Loading Capacity | 1,000 / 2,000 / 3,000 kg |
| Table Size | 1200 × 2500 mm |
| Motor Power | 0.75 kW |
| Minimum Table Height | 300 mm |
| Lifting Height | 1,000 mm |
| Main Function | Panel Loading, Unloading and Stacking |
| Application | Woodworking Production Lines |
function
Automatic lifting up and down according to panels stack height.
share:
Description
Lifting table is driven by hydraulics or chains, the equipment carries stacks of sheet metal and automatically maintains a set height. For example, before an electronic panel saw, it works with a grabber to ensure the top layer of sheet metal is always in the optimal gripping position (destacking function); after an edge banding machine or drilling equipment, it can neatly stack the processed sheet metal and lower it slowly for easy forklift transport (palletizing function). Simply put, it is a crucial connecting device that enables a smooth flow of materials between different processes.
Use Scenarios
1. Before Computer Beam Saw
The lifting table can be installed before a computer beam saw to provide an organized loading position for stacks of wood panels.
It can help maintain a suitable panel height for automatic or manual loading.
2. Before Edge Banding Production Lines
The lifting table can be used as a buffer and material handling station around an edge banding production line.
It helps operators or automatic handling equipment transfer panel stacks between storage and the processing area.
3. Finished Panel Stacking
After panel processing, the lifting table can be used to collect and stack finished panels.
The platform can be lowered as the stack increases, helping maintain a manageable working height.
4. Furniture Factory Material Handling
The lifting table is suitable for furniture factories, cabinet manufacturers and custom furniture production lines where large quantities of wood panels need to be moved between different processing stages.
5. Warehouse and Production Line Transfer
The lifting table can also be used as a material transfer station between panel storage areas and woodworking machinery.
Key Features
1. 3,000 kg Maximum Loading Capacity
The standard lifting table supports a maximum loading capacity of 3,000 kg.
Different capacity configurations of 1,000 kg, 2,000 kg and 3,000 kg are available according to the panel size, production requirements and handling process.
2. 1200 × 2500 mm Working Platform
The lifting platform measures 1200 × 2500 mm, providing a suitable working area for handling stacks of wood panels.
The platform can be positioned before or after panel processing equipment to support organized material loading, unloading and stacking.
3. 1,500 mm Lifting Height
The lifting table provides a 1,500 mm lifting height for adjusting the position of the panel stack.
This allows the working height to be adapted to different loading, unloading and stacking operations within the production line.
4. Automatic Height Adjustment
The lifting table can raise or lower the panel stack according to the material handling process.
Maintaining a suitable panel height can make loading and unloading more convenient and help reduce repeated manual handling during production.
5. Suitable for Panel Loading and Unloading
The lifting table is designed for handling wood panels and wood-based boards before or after processing.
It can be used for panel feeding, material transfer and finished-panel stacking in furniture and woodworking production environments.
6. Easy Integration with Woodworking Machinery
The lifting table can be integrated into material handling systems serving computer beam saws, edge banding machines, CNC routers and other panel processing equipment.
It can function as a transition point between panel storage, processing equipment and finished-product handling areas.
7. Suitable for Automated and Semi-Automated Production
The lifting table can be used as part of an automated or semi-automated woodworking production line.
It helps organize panel movement between different processes and can reduce manual material handling when integrated with conveyors, loaders or other handling equipment.
FAQ
What is a panel lifting table?
A panel lifting table is a material handling device used to raise and lower stacks of wood panels for loading, unloading, transfer and stacking in woodworking production lines.
What is the maximum loading capacity of this lifting table?
The standard configuration supports up to 3,000 kg. Configurations for 1,000 kg, 2,000 kg and 3,000 kg are available.
What is the table size?
The standard table size is 1200 × 2500 mm.
What is the lifting height?
The standard lifting height is 1,000 mm, with a minimum table height of 300 mm.
What is the motor power?
The standard motor power is 0.75 kW.
Can the lifting table be used with an edge banding machine?
Yes. The lifting table can be integrated into a panel handling system serving an edge banding machine, providing a loading, unloading or buffer position for wood panels.
Can it be used with a computer beam saw?
Yes. It can be installed before or after a computer beam saw as part of the panel loading, unloading and stacking process.
Can the lifting table be customized?
The loading capacity, platform size and integration method can be discussed according to the customer’s panel dimensions and production-line requirements.
