CNC Panel Saw Machine with Touch Screen and Automatic Positioning

Q: What is the maximum cutting thickness?

The maximum cutting thickness is 80 mm at 90° and 45 mm at 45° , according to the current specifications.

MJ45C

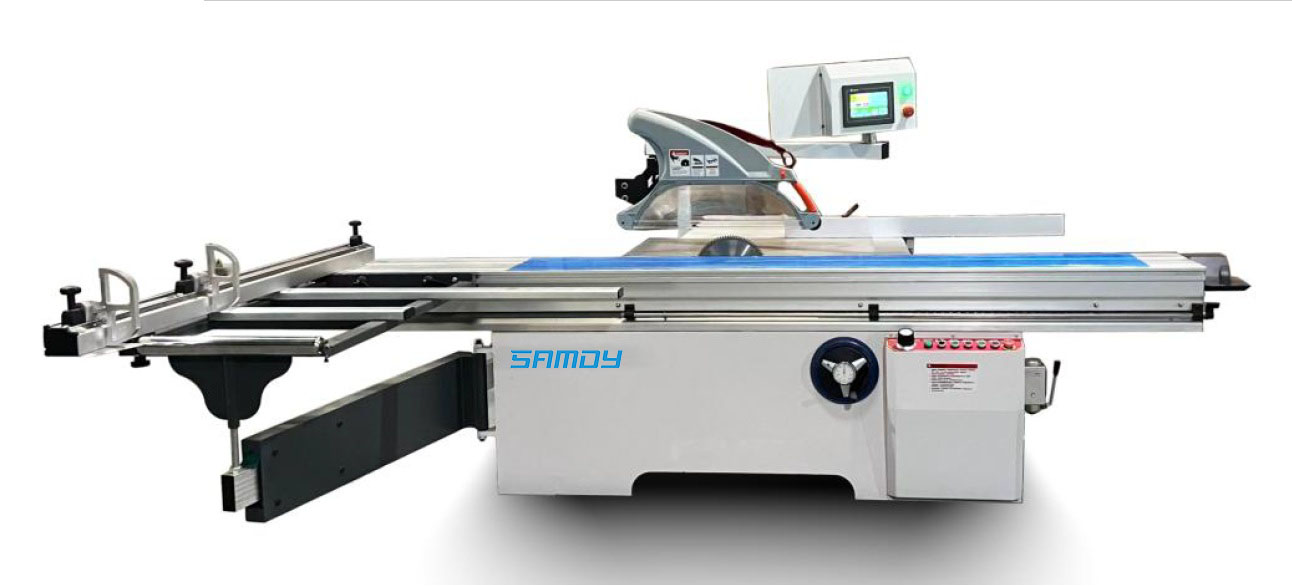

The SAMDY MJ45C CNC panel saw machine is a sliding table panel saw equipped with touchscreen control and automatic CNC positioning for accurate and efficient panel cutting. It combines a heavy-duty sliding table, main saw blade, scoring saw blade, and CNC positioning system to reduce manual measurement and improve cutting consistency.

The CNC positioning system allows the operator to set the required cutting dimensions through the control interface, while the electric positioning mechanism automatically moves the guiding system to the programmed position. This makes repeated panel cutting more convenient and reduces the need for manual measurement and adjustment.

The cutting precision is not good as computer beam saw,but this machine price is cheaper much and can cut 45 degree.

Technical Specifications

Technical Parameter	Specification
Model	MJ45C
Cutting Angle	0°–45°
Maximum Cutting Length	3200 mm
Maximum Cutting Thickness at 90°	80 mm
Maximum Cutting Thickness at 45°	45 mm
Main Saw Motor Power	5.5 kW
Scoring Saw Motor Power	1.1 kW
Main Saw Spindle Speed	4000 / 5000 rpm
Scoring Saw Spindle Speed	7000 rpm
Main Saw Blade Size	Φ300 × Φ30 mm
Scoring Saw Blade Size	Φ120 × Φ20 mm
Main Saw Blade Specification	300 × 30 × 3.2 × 96T
Contactor	Delixi
Bearing	SKF
Machine Weight	800 kg
Machine Dimensions	3000 × 2200 × 1500 mm

function

90 degree and 45 degree cutting

3200mm max cutting length

electric lifting and electric tilting 45 degree

CNC position

Touch screen

Description

The MJ45C also supports 90° straight cutting and 45° angled cutting, making it suitable for furniture panels, cabinet components, doors, decorative panels, and other woodworking applications.

With a main saw motor of 5.5 kW and a scoring saw motor of 1.1 kW, the machine is designed for stable panel cutting and improved edge quality. The scoring saw performs a preliminary groove before the main saw completes the cut, helping reduce edge chipping on laminated and veneered panels.

Use Scenarios

Furniture Manufacturing

The MJ45C can be used for cutting MDF, plywood, particleboard, laminated panels, and other furniture boards before edge banding, drilling, and assembly.

Cabinet Production

Suitable for cutting cabinet sides, shelves, doors, partitions, and other furniture components to programmed dimensions.

Door and Panel Processing

The 45° cutting function provides additional flexibility for woodworking applications that require angled panel cuts.

Office Furniture Production

Suitable for cutting panels used for desks, cabinets, partitions, storage systems, and other office furniture.

Small and Medium Woodworking Workshops

The CNC positioning system reduces repetitive manual measurement and makes the MJ45C suitable for workshops that need higher cutting efficiency without investing in a large beam saw.

As a Panel Cutting Station

The machine can also be used together with downstream equipment such as edge banding machines, CNC drilling machines, and CNC routers in a furniture production workflow.

Key Features

Automatic CNC positioning reduces manual measurement and adjustment.
Touchscreen control simplifies cutting-size setup and machine operation.
90° and 45° cutting supports a wider range of woodworking applications.
Main saw + scoring saw helps improve panel edge quality.
Heavy-duty sliding table provides stable panel movement.
5.5 kW main saw motor provides stable cutting power.
0°–45° electric saw-angle adjustment supports angled cutting.
Large dust collection cover helps improve dust extraction during cutting.
Optional 2800 / 3200 / 3800 mm sliding table lengths can accommodate different workshop requirements, subject to the actual configuration

FAQ

What is a CNC panel saw machine?

A CNC panel saw machine is a panel cutting machine equipped with computerized positioning and control functions. It helps operators set cutting dimensions more efficiently and reduces repetitive manual measurement.

What is the difference between the MJ45C and a standard sliding table saw?

The MJ45C adds touchscreen control and automatic CNC positioning to the sliding table saw configuration. This allows operators to set cutting dimensions electronically instead of relying entirely on manual measurement and guide adjustment.

Can the MJ45C cut panels at 45 degrees?

Yes. The MJ45C supports both 90° straight cutting and 45° angled cutting, with a saw-angle adjustment range of 0°–45°, according to the current product specifications.

What is the maximum cutting thickness?

The maximum cutting thickness is 80 mm at 90° and 45 mm at 45°, according to the current specifications.

Does the MJ45C use a scoring saw?

Yes. The machine uses a main saw blade and scoring saw blade. The scoring blade makes a preliminary groove before the main saw completes the cut, helping reduce edge chipping.

Is the CNC positioning system useful for repeated cutting?

Yes. Automatic CNC positioning is particularly useful when the same cutting dimensions need to be repeated across multiple panels because it reduces repetitive manual measurement and positioning.

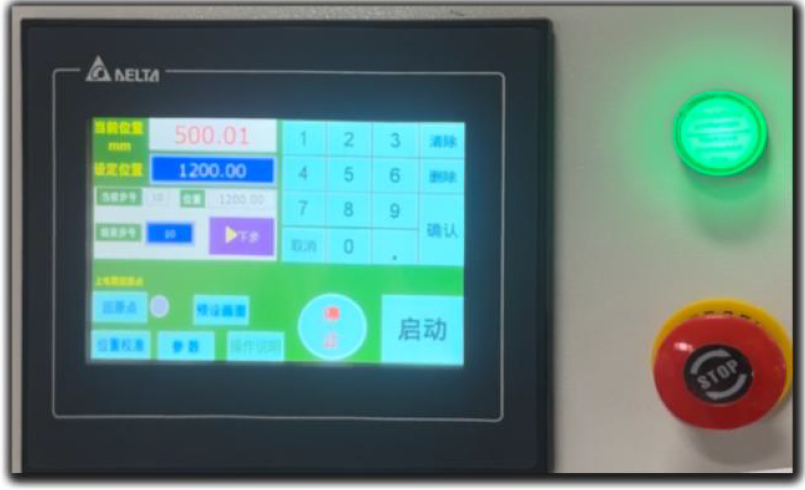

CNC panel saw machine's touch screen

Delta brand

he MJ45C uses a touchscreen CNC control system to simplify cutting-size setup and machine operation. The English-language interface allows operators to enter cutting dimensions and control the automatic positioning system through an intuitive interface.

The CNC control system is designed to reduce repetitive manual measurement and make repeated panel cutting more efficient.

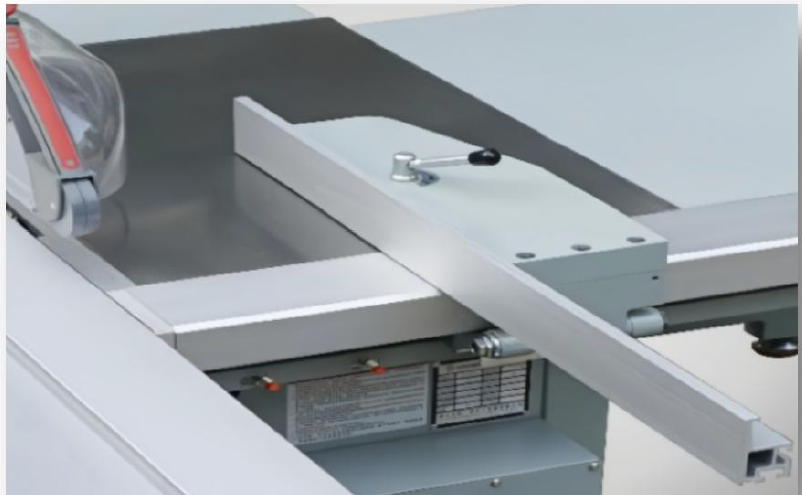

AUTOMATIC CNC POSITION

Cutting size position

The MJ45C is equipped with an automatic CNC positioning system designed to simplify panel size adjustment and repeated cutting operations.

Instead of manually measuring and repositioning the guide for every panel, the operator can enter the required cutting dimension through the control system. The CNC positioning mechanism then moves the guide to the programmed position.

Key benefits:

Automatic cutting-size positioning
Reduced manual measurement
Fast adjustment for repeated panel sizes
Positioning accuracy up to ±0.1 mm, according to the current machine specification
Maximum positioning speed up to 250 mm/s, according to the current specification
English-language control interface
Automatic power-off protection function

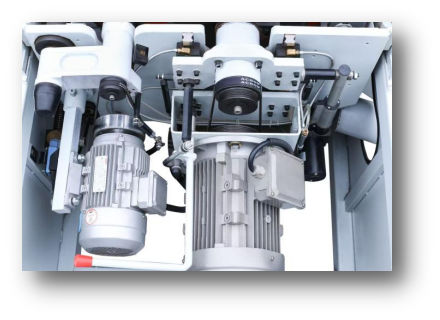

Double saw blade structure

Main Saw + Scoring Saw for Cleaner Panel Edges

The MJ45C uses a dual-blade cutting system consisting of a main saw blade and scoring saw blade.

The scoring blade makes a preliminary groove on the panel surface before the main saw completes the cut. This two-stage cutting process helps reduce edge chipping and improve cutting quality, particularly when processing laminated, veneered, and coated panels.

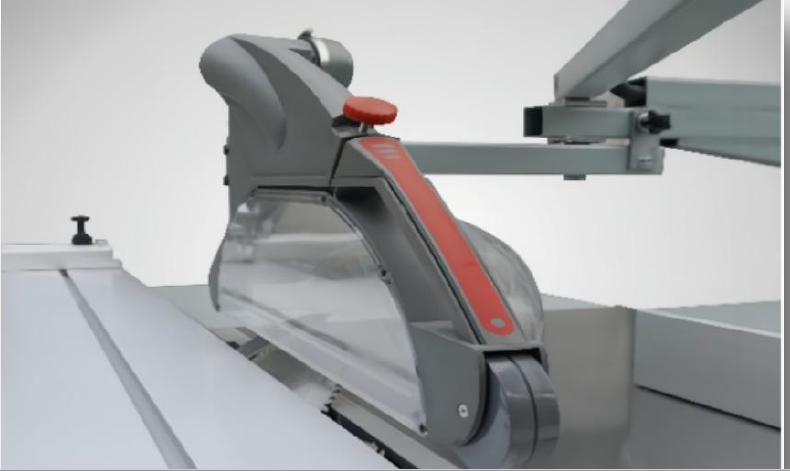

Dust collector cover

Large Dust Collection Cover

The large dust collection cover helps isolate the operator from the saw blade area and improves dust collection during panel cutting.

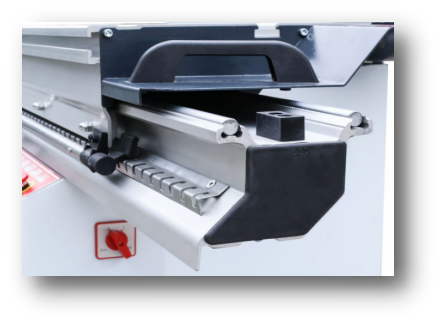

Sliding table

Heavy-Duty Sliding Table

cavity structure is designed to provide high rigidity, wear resistance, and torsional strength.

The integrated cleaning brush helps keep the sliding mechanism clean during operation, while the side locking device allows the operator to secure the table position when required.

Available sliding table lengths:

2800 mm
3000 mm
3200 mm

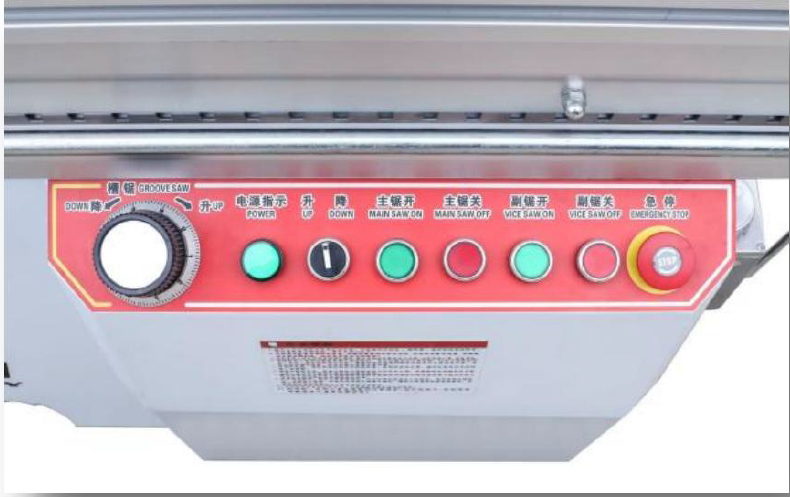

CNC panel saw control panel

Button control

■ Electric height adjustment for the main saw blade

■ Manual angle adjustment for the main saw blade

■ Swing angle range: 0°—45°

■ Swing angle accuracy: ±0.1°
