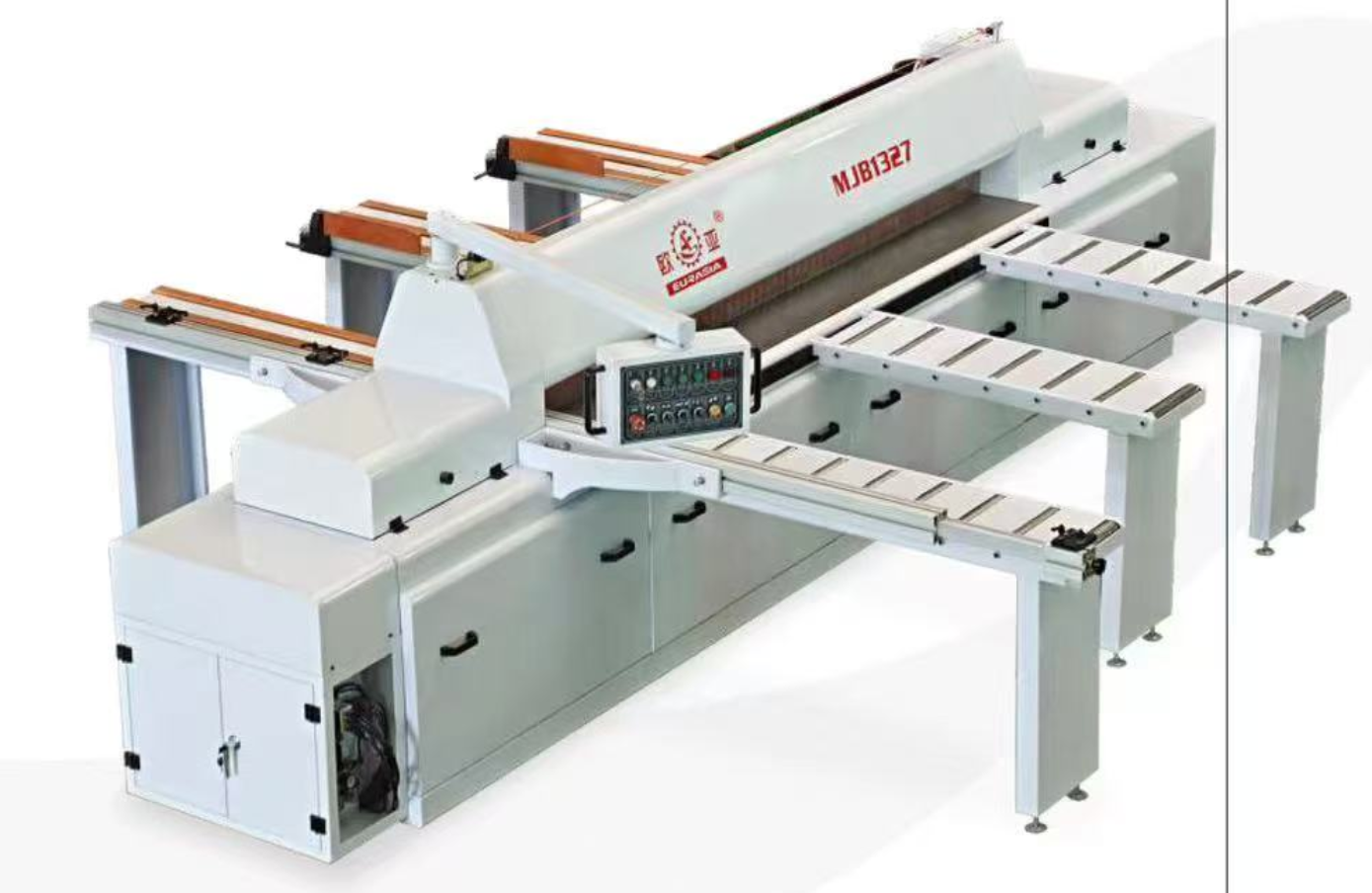

Automatic Reciprocating Panel Saw Machine MJB1327 For Panel Cutting
MJB1327
The SAMDY MJB1327 Automatic Reciprocating Panel Saw machine is designed for efficient and repeatable cutting of wood-based panels in furniture manufacturing, cabinet production and woodworking applications.
Unlike a manual sliding table saw, the MJB1327 uses an automatic reciprocating cutting system to move the saw carriage through the panel cutting process. It can process multiple sheets of compatible panels at one time, helping improve production efficiency for repeated panel cutting operations.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Max. Cutting Width | 3200 mm |
| Max. Saw Blade Height | 80 mm |
| Main Saw Blade Size | φ30 × φ350 mm |
| Main Saw Blade Spindle Speed | 4800 rpm |
| Scoring Saw Blade Size | φ30 × φ160 mm |
| Scoring Saw Blade Spindle Speed | 6500 rpm |
| Saw Carriage Forward Speed | 0–45 m/min |
| Saw Carriage Return Speed | 60 m/min |
| Main Saw Motor Power | 11 kW |
| Saw Carriage Drive Motor Power | 1.5 kW |
| Machine Weight | 2700 kg |
| Machine Dimensions | 5960 × 3790 × 1750 mm |
function
Touch screen or button control panel.
Main saw blade +score saw blade.
Front loading +rear unloading.
90 degree cutting only.
share:
Description
Automatic Reciprocating Panel Saw machine is equipped with a main saw blade and scoring saw blade. The scoring saw makes a preliminary cut before the main saw, helping reduce edge chipping on suitable laminated and veneered panels.
The MJB1327 supports 90-degree cutting only and has a maximum cutting width of 3200 mm with a maximum extended saw blade height of 80 mm. The main saw is powered by an 11 kW motor, while the saw carriage uses a 1.5 kW drive motor.
The machine can be operated through either a touch screen or button control panel, depending on the selected configuration. Front loading and rear unloading help organize material handling during production.
The MJB1327 is suitable for furniture factories, cabinet manufacturers, woodworking workshops and customized furniture producers that need an automatic solution for repeated panel cutting
Automatic Reciprocating Panel Saw Applications
The MJB1327 is designed for cutting compatible wood-based panels commonly used in furniture and cabinet manufacturing.
Typical applications include:
- MDF
- Particleboard
- Plywood
- Melamine-faced panels
- Laminated panels
- Veneered panels
- Other compatible furniture panels
Material compatibility depends on the panel structure, thickness, surface material and saw blade configuration. For special materials, customers should provide the material specifications before selecting the machine.
Use Scenarios
Furniture Panel Cutting
The MJB1327 is suitable for furniture manufacturers that need to cut MDF, plywood, particleboard and other compatible panels into required dimensions.
Cabinet and Wardrobe Production
The machine can be used to prepare cabinet sides, shelves, doors and other rectangular components before edge banding, drilling and assembly.
Batch Panel Cutting
The automatic reciprocating system is suitable for repeated cutting operations where multiple panels need to be processed during the same production cycle.
Large-Format Panel Processing
With a maximum cutting width of 3200 mm, the MJB1327 can process large-format panels within its specified working range.
Customized Furniture Production
The machine can be used by customized furniture manufacturers that need to cut panels into different dimensions according to customer orders.
Woodworking Workshops
The MJB1327 provides an automatic panel cutting solution for professional woodworking workshops that require repeated 90-degree panel cutting.
Panel Preparation Before Edge Banding and Drilling
The machine can be positioned at the beginning of a panel furniture production workflow, preparing workpieces for subsequent edge banding, drilling and assembly.
Key Features
Automatic Reciprocating Cutting
The MJB1327 uses an automatic reciprocating saw carriage to perform repeated panel cutting with reduced manual operation.
Main Saw and Scoring Saw
The machine combines a main saw blade and scoring saw blade. The scoring blade performs a preliminary cut to help reduce edge chipping on suitable panel materials.
3200 mm Maximum Cutting Width
The MJB1327 supports a maximum cutting width of 3200 mm, making it suitable for large-format furniture and woodworking panels within its specified working range.
11 kW Main Saw Motor
The main saw is powered by an 11 kW motor, providing the required cutting power for the machine’s specified applications.
Front Loading and Rear Unloading
The front-loading and rear-unloading configuration supports a continuous material handling workflow during panel cutting.
Touch Screen or Button Control
Customers can choose between a touch-screen control panel and a button control panel according to the selected machine configuration.
No Dedicated Cutting Software Required
The MJB1327 is designed to operate without dedicated cutting optimization software, providing a simpler operating approach for customers who do not require computerized cutting optimization.
FAQ
What is the MJB1327 automatic reciprocating panel saw used for?
The MJB1327 is used for automatic 90-degree cutting of compatible wood-based panels in furniture, cabinet and woodworking production.
What is the maximum cutting width of the MJB1327?
The maximum cutting width is 3200 mm.
What is the maximum saw blade height?
The maximum extended saw blade height is 80 mm.
Does the machine have a scoring saw?
Yes. The MJB1327 has both a main saw blade and a scoring saw blade.
Can the MJB1327 process multiple panels at once?
Yes. The machine is designed to process several compatible sheets simultaneously, depending on panel thickness and operating conditions.
What materials can the MJB1327 cut?
The machine can be used for compatible MDF, plywood, particleboard, melamine-faced panels, laminated panels and veneered panels.
Is the MJB1327 suitable for furniture factories?
Yes. It is suitable for furniture manufacturers, cabinet factories, woodworking workshops and customized furniture production.

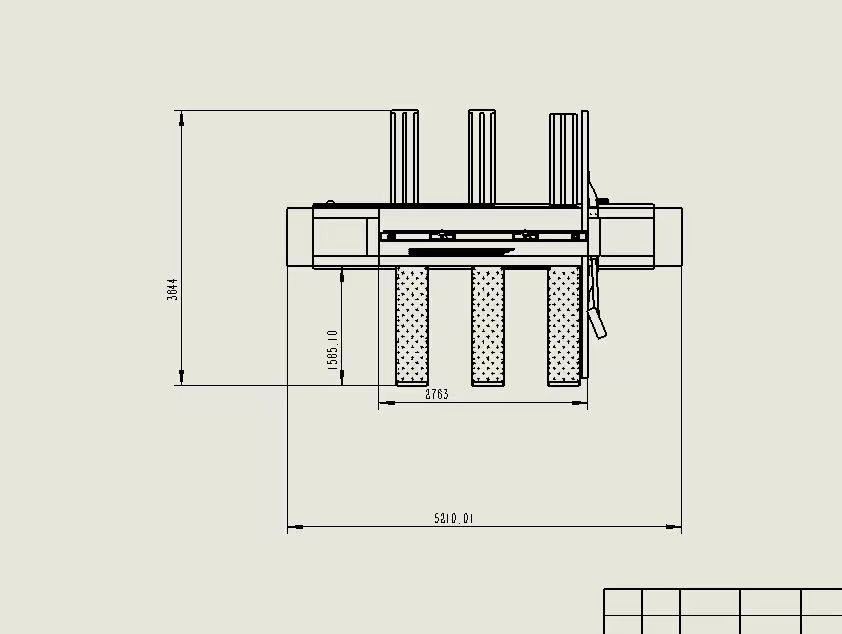

AUTOMATIC RECIPROCATING PANEL SAW MACHINE LAYOUT
Compact Machine Layout
The compact machine layout helps save valuable workshop space while maintaining efficient panel cutting performance.

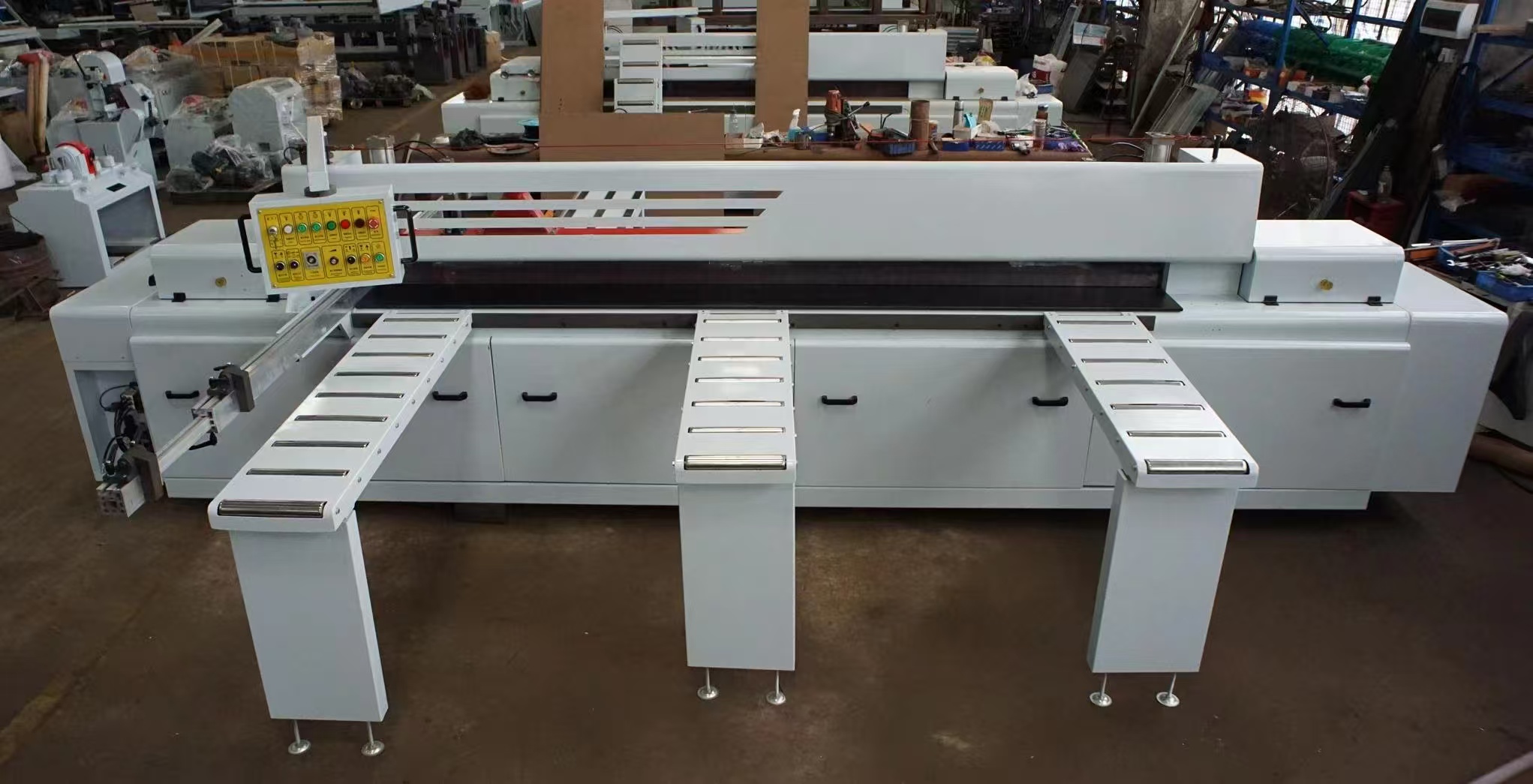

Operation table
TWO TABLE OPTIONS
Air floating table and roller table are available as optional configurations.
CONTROL PANEL OPTIONS
TOUCHSCREEN OR BUTTON CONTROL
The automatic reciprocating panel saw can be equipped with either touchscreen control or button control, providing flexible operation options for different production requirements.
