90 Degree Turner Machine For Automatic Furniture Production Line
CY-L
The SAMDY 90 Degree Turner machine is an automatic panel handling machine that rotates wood panels 90 degrees while transferring them between conveyor processes. It is designed for automated furniture production lines and can connect edge banding machines, drilling systems, and other panel processing equipment.
Technical Specifications
| Specification | 90 Degree Panel Turner |
|---|---|
| Machine Type | Automatic 90 Degree Panel Turner |
| Application | Furniture Production Line Panel Turning |
| Main Function | 90° Panel Direction Change |
| Overall Size | 6000 × 2850 × 900 mm |
| Voltage | Three-Phase 380 V / 50 Hz |
| Total Power | 3.7 kW |
| Working Pressure | 0.6 MPa |
| Conveyor Speed | 10–35 m/min, Adjustable |
| Roller Diameter | Ø56 mm |
| Conveyor Belt | Green PVC Elastic Belt |
| Maximum Loading Capacity | ≤70 kg |
| Minimum Panel Size | 250 × 250 mm |
| Maximum Panel Size | 2440 × 1220 mm |
| Panel Thickness | 8–60 mm |
| Customization | Available |
function
The 90 Degree Panel Turner automatically changes the direction of wood panels by 90 degrees within an automated conveyor line. It can transfer panels between different production processes while maintaining the required panel orientation for the next machine.
share:
Description
How the 90 Degree Panel Turner Works
Step 1 — Panel Infeed
The panel enters the turner from the upstream conveyor or processing machine.
Step 2 — Panel Positioning
Photoelectric sensors and positioning components detect the panel and control its position.
Step 3 — 90° Turning
The turning mechanism changes the panel’s conveying direction by 90 degrees.
Step 4 — Panel Alignment
The panel is aligned before entering the next conveyor or processing machine.
Step 5 — Downstream Transfer
The turned panel continues automatically to the next production process.
Use Scenarios
1. Four-Side Edge Banding Production
The 90 degree panel turner can connect double-end edge banding machines with return conveyors or other edge-banding equipment. It automatically changes the panel direction so the next edge can be processed without manual repositioning.
2. Edge Banding to Drilling Line
The turner can transfer panels from an edge banding process to a drilling line while changing the panel orientation required by the downstream machine.
3. Automated Panel Sorting
The system can be integrated into automated conveyor and sorting lines where panels need to change direction before entering different processing channels.
4. Panel Furniture Production
Suitable for cabinet, wardrobe, office furniture and customized furniture production lines where automatic panel handling is required.
Key Features
Automatic 90° Panel Turning
Changes panel direction automatically between connected production processes.
Conveyor Line Integration
Designed to connect edge banding machines, drilling systems, return conveyors and other automated equipment.
Adjustable Conveyor Speed
10–35 m/min speed range allows the turner to be matched with different production line configurations.
Photoelectric Position Detection
Sensors help detect panel position and coordinate the turning and transfer process.
Cone Roller Turning Mechanism
The tapered roller configuration helps guide panels during the 90-degree direction change.
Flexible Layout
Machine dimensions and conveyor configuration can be customized according to the customer’s production line.
Wide Panel Range
Supports panels from 250 × 250 mm to 2440 × 1220 mm and 8–60 mm thickness in the specified configuration.
FAQ
What is a 90 degree panel turner?
A 90 degree panel turner is an automatic conveyor machine that changes the conveying direction of a wood panel by 90 degrees. It is used to connect different processes in automated furniture production lines.
What is a 90 degree panel turner used for?
It is commonly used to connect edge banding machines, return conveyors, drilling lines, sorting systems and other panel processing equipment where the panel needs to change direction.
Can the turner be used for four-side edge banding?
Yes. It can be integrated with edge banding and return conveyor systems to change the panel direction between different edge-banding processes and help automate four-side panel processing.
What panel sizes can the machine handle?
The standard configuration supports panels from 250 × 250 mm to 2440 × 1220 mm, with a panel thickness range of 8–60 mm.
What is the working speed?
The conveyor speed is adjustable from 10 to 35 m/min in the specified configuration.
Can the 90 degree turner be customized?
Yes. The machine size and conveyor layout can be customized according to the connected equipment, panel dimensions and available workshop space.
Can it connect an edge banding machine with a drilling line?
Yes. The turner can be configured as a transfer section between edge banding and drilling equipment when the panel direction needs to be changed.
Machine layout
custom size is available
custom size is also available,suitable connecting edge banding machine or sawing line.
Cone Roller Turning Mechanism
stable
The cone roller turning mechanism helps guide the panel during the 90-degree direction change. The tapered roller arrangement provides controlled contact with the panel and supports stable turning before the panel enters the next conveyor section.
Customer installation
oversea customer site

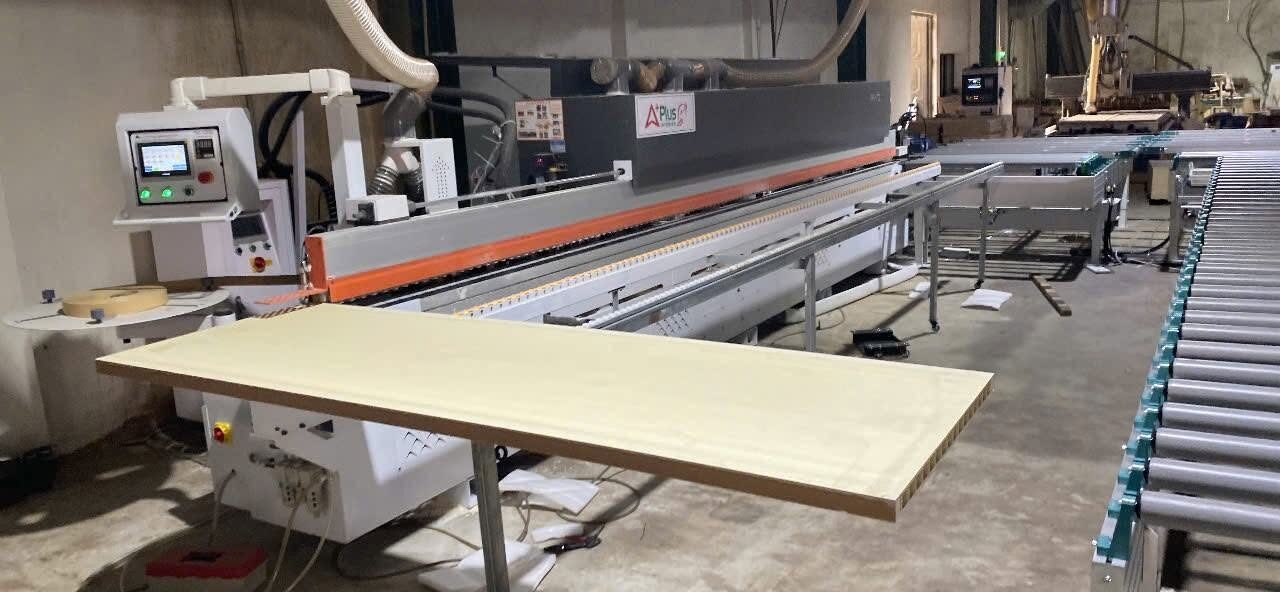

Installation is simple; overseas customers easily completed it in just half a day.
professional loading
professional exporting packing

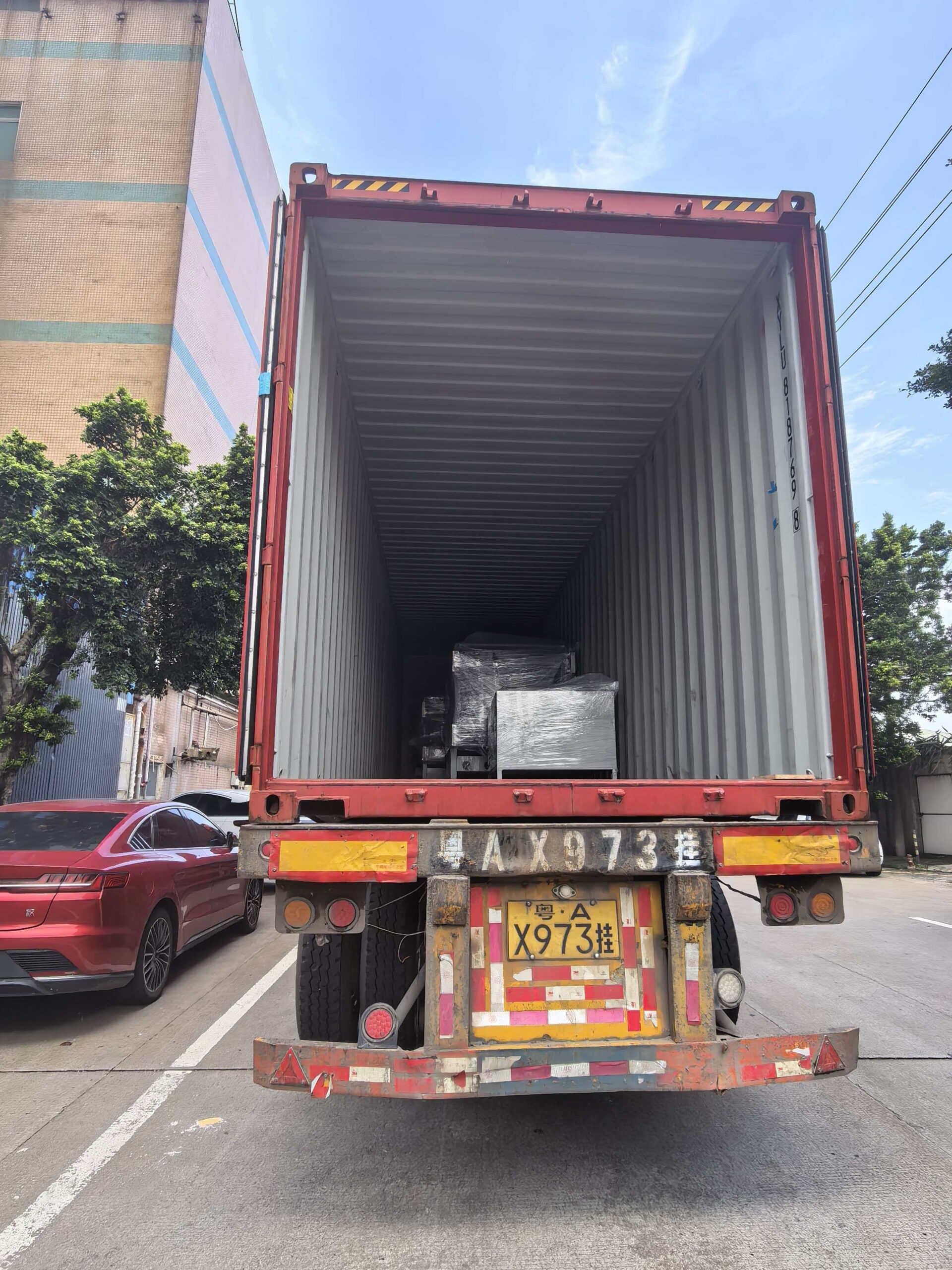

Roller conveyor loading container for exporting to oversea customer.
SAMDY FACTORY
Foshan CNC Samdy Co., Ltd. is a China-based manufacturer of woodworking machinery, specializing in CNC machining and automated equipment for the furniture and woodworking industries.
Founded in 2005 and located in Foshan, Guangdong, China, SAMDY has more than 20 years of experience in the development and manufacturing of woodworking machinery. With a factory covering more than 4,000 square meters, we provide reliable equipment and complete production solutions for furniture manufacturers, cabinet factories, woodworking companies, panel furniture producers, and machinery distributors worldwide.
Our product range includes CNC routers and nesting machines, automatic edge banding machines, CNC drilling machines, panel saws, pressing machines, aluminum honeycomb panel processing machines, and other specialized woodworking equipment. Our machines are designed to support key production processes including panel cutting, CNC machining, drilling, edge banding, and other furniture manufacturing applications.
