Double Working Table CNC Router K6013-G2V9 with 2 Spindles and Drill Bit Package
K6013-G2V9
The SAMDY K6013-G2V9 is a double working table CNC router with two 6 kW spindles and a multi-bit drilling package, designed for efficient cutting, engraving, milling and drilling of wood panels and other compatible materials.
The machine features a 2800 × 1250 mm working surface, supports material thicknesses from 3 to 50 mm, and uses two 6 kW spindles with a maximum speed of 18,000 rpm. The included 5+4 drilling bit configuration allows multiple drilling operations to be completed efficiently on suitable workpieces.
Its double working table is designed to improve material handling efficiency. While one working table is being processed, the operator can load or unload panels on the other table, depending on the production workflow. This configuration is particularly suitable for furniture factories and woodworking workshops handling repeated panel processing.
The K6013-G2V9 can process compatible wood panels, plastic panels, acrylic sheets and aluminum honeycomb panels. For aluminum honeycomb panels, the machine can be configured for cutting and grooving applications.
With an LNC control system, 7 positioning cylinders, vacuum adsorption table, reinforced machine structure and industrial electrical components, the K6013-G2V9 is designed for stable CNC production in furniture, cabinetry, woodworking and customized panel-processing applications.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Model | K6013-G2V9 |
| Machine Type | Double Working Table CNC Router |
| Control System | LNC |
| Working Surface Size | 2800 × 1250 mm |
| Processing Thickness | 3–50 mm |
| Spindle Configuration | 6 kW × 2 |
| Maximum Spindle Speed | 18,000 rpm |
| Drilling Bit Quantity | 5 + 4 bits |
| Vacuum Pump | 11 kW water-cooled vacuum pump |
| Air Pressure Requirement | 0.7 MPa |
| Total Power | 28 kW |
| Overall Dimensions | 6500 × 2300 × 2200 mm |
function
- Double working table: Two independent working areas improve material loading and unloading flexibility for continuous panel processing.
- Two 6 kW spindles: The dual-spindle configuration supports efficient cutting, engraving and milling operations.
- 5+4 drilling bits: The drilling package supports multiple-hole processing for suitable furniture and panel applications.
- Vacuum adsorption: The vacuum table helps hold workpieces securely during cutting and drilling.
- 7 positioning cylinders: Positioning cylinders help locate panels consistently for batch processing.
- Aluminum honeycomb panel processing: The machine can be used for cutting and grooving compatible aluminum honeycomb panels.
share:
Description
2 × 6 kW Spindles + 5+4 Drilling Bits
The K6013-G2V9 combines two 6 kW CNC spindles with a 5+4 drilling bit configuration.
The dual-spindle setup is suitable for CNC cutting, engraving and milling operations, while the drilling bit package allows multiple-hole processing on compatible panels.
This combination makes the machine suitable for furniture components, cabinet panels and other woodworking applications that require both routing and repeated drilling operations.
Dual independent working tables can save operation time,when one working is working while you unload and load panels from another table,no downtime.
Multiple drill bits package can complete multiple holes in one pass,if your working piece has many holes,it is very suitable for you.
If you prefer a single-table CNC router or need a more compact configuration,you can consider of single table CNC router machine K2813-K12.
The K6013-G2V9 is designed for manufacturers that need a double working table and dual-spindle configuration.
If your priority is:
- Two working tables and flexible loading/unloading → K6013-G2V9
- Automatic tool changing with a single working table → consider a suitable ATC CNC router such as the K2813-K12
- Automatic loading and unloading for nesting production → consider a CNC nesting machine such as the K2513-K4
- Multi-tool CNC processing for specialized applications → consider a CNC center machine according to the required tooling configuration
The appropriate CNC machine depends on the material, working size, machining operations, production volume and automation requirements.
Use Scenarios
1. Custom Furniture Manufacturing
The K6013-G2V9 is suitable for cutting, milling, engraving and drilling furniture panels used in customized furniture production.
2. Cabinet and Kitchen Cabinet Production
The double working table configuration is suitable for repeated processing of cabinet panels, side panels and other furniture components.
3. Panel Furniture Manufacturing
The machine can process compatible MDF, plywood, particle board and other wood-based panels for panel furniture production.
4. Wooden Door and Decorative Panel Processing
With suitable CNC tools, the router can perform cutting, engraving and milling operations for wooden doors, decorative panels and customized designs.
5. Aluminum Honeycomb Panel Processing
The K6013-G2V9 can be used for compatible aluminum honeycomb panel cutting and grooving applications, making it suitable for manufacturers working with lightweight composite panels.
6. CNC Woodworking Workshops
The double working table design is suitable for worksh
Key Features
1. Double Working Table for Flexible Production
The K6013-G2V9 features a double working table designed to improve material loading, unloading and machining workflow. While one working area is being processed, the other can be prepared for the next workpiece, depending on the production process.
2. Two 6 kW CNC Spindles
The machine is equipped with two 6 kW spindles, with a maximum spindle speed of 18,000 rpm. The dual-spindle configuration provides flexibility for cutting, milling, engraving and other CNC machining operations.
3. 5+4 Drilling Bit Configuration
The 5+4 drilling bit configuration supports multiple drilling operations on compatible furniture and panel materials. It is suitable for applications where cutting, routing and repeated drilling are required.
4. 2800 × 1250 mm Working Surface
The K6013-G2V9 provides a 2800 × 1250 mm working surface and supports material thicknesses from 3 to 50 mm, making it suitable for a wide range of panel-processing applications.
5. 7 Positioning Cylinders
Seven positioning cylinders help locate workpieces consistently on the working table. This is particularly useful for repeated production of furniture panels, cabinet components and other standardized workpieces.
6. 8-Zone Vacuum Adsorption Table
The vacuum table is divided into 8 independently controlled zones, providing flexible workholding for different workpiece sizes and helping maintain stable positioning during cutting, drilling and milling.
7. Reinforced Machine Structure
The machine uses a reinforced structure with 20 mm thick cast-iron reinforcement and full annealing treatment. The heavy-duty construction provides stable support for repeated CNC machining operations.
8. LNC CNC Control System
The K6013-G2V9 uses an LNC CNC control system for machine operation and positioning. Other control system options can be discussed according to the required machine configuration.
9. Aluminum Honeycomb Panel Processing
With suitable tooling and configuration, the K6013-G2V9 can be used for cutting and grooving compatible aluminum honeycomb panels, in addition to conventional woodworking applications.
10. Industrial Electrical Components
The machine uses selected industrial electrical components and a dedicated electrical cabinet to support reliable operation in a production environment.
FAQ
What is the K6013-G2V9 CNC router?
The K6013-G2V9 is a double working table CNC router equipped with two 6 kW spindles and a 5+4 drilling bit package. It is designed for cutting, milling, engraving and drilling compatible panels.
What is the working size of the K6013-G2V9?
The machine has a working surface size of 2800 × 1250 mm.
How many spindles does the K6013-G2V9 have?
The K6013-G2V9 has two 6 kW spindles, with a maximum spindle speed of 18,000 rpm.
What materials can this CNC router process?
The machine is designed for compatible wood panels, plastic panels, acrylic sheets and aluminum honeycomb panels. Material suitability depends on the specific material, thickness and cutting tools.
Can the K6013-G2V9 process aluminum honeycomb panels?
Yes. The machine can be used for compatible aluminum honeycomb panel cutting and grooving applications
What is the advantage of the double working table?
The two working tables allow operators to organize loading, unloading and machining more efficiently. While one table is being processed, the other can be prepared for the next workpiece, depending on the production workflow.
What control systems are available?
The current page lists LNC as the standard control system. SAMDY also states that LNC, Syntec and Weihong control systems can be offered according to customer requirements.
Can I test my own panels before placing an order?
Yes. SAMDY states that customers can arrange a factory visit and request a real-machine cutting test using their own panels before order confirmation.
PC Screen
Taiwan LNC system
Easy operation.Industrial computer is also optional.
Electric parts
Good brand
Driver:
Use Leadshine servo, matching the same brand of motor use.
Frequency converter:
Use BST 6 KW frequency converter.
Contactor ：Schneider
Industrial grade electric components ensure lower failure rate.
Electronic hand wheel pulse generator
Easy commissioning
Zero correction and signal segmentation.
Independent Vacuum Table Control
8 pcs
The vacuum adsorption table uses 8 independently controlled vacuum zones to provide flexible workholding for different workpiece sizes.
Independent vacuum control helps maintain stable workpiece holding during cutting, drilling and milling, including when processing smaller panels.
Gear Rack
Good quality and durable
The gear rack is equipped with a protective baffle designed to reduce the accumulation of dust and machining debris around the rack.
This design helps protect the transmission components and supports stable movement during repeated CNC machining operations.
2 Spindles with Multi-Drilling-Bit Package
6kw*2
It is suitable for simple cutting engraving and milling processing and multiple drilling.
Positioning cylinder
Precise positioning
The K6013-G2V9 is equipped with seven positioning cylinders to help position both large and small panels.
Consistent positioning is particularly useful for batch production because it helps maintain the same reference position across repeated workpieces.
Heavy-Duty Machine Body
20mm thick
The K6013-G2V9 uses a reinforced machine structure with 20 mm thick cast-iron reinforcement on the table top and machine sides.
The machine frame receives full annealing treatment to help reduce deformation and improve structural stability during long-term operation.
The reinforced construction is designed to provide stable support for high-speed CNC cutting, milling and drilling operations.
professional CNC router manufacture
No-worry after sale service
Many customers are worry about after sale service about CNC router machine.
• Professional pre-sales technical team: Custom processing layout solution based on your panel size, daily output and processing requirements
• Complete after-sales technical guidance: Online remote debugging, overseas engineer door-to-door service available if you need.
• Long-term spare parts supply: All wearing parts can be provided at factory cost price
• Free machine operation manual and operation training videos
• 12-month warranty for whole machine core components

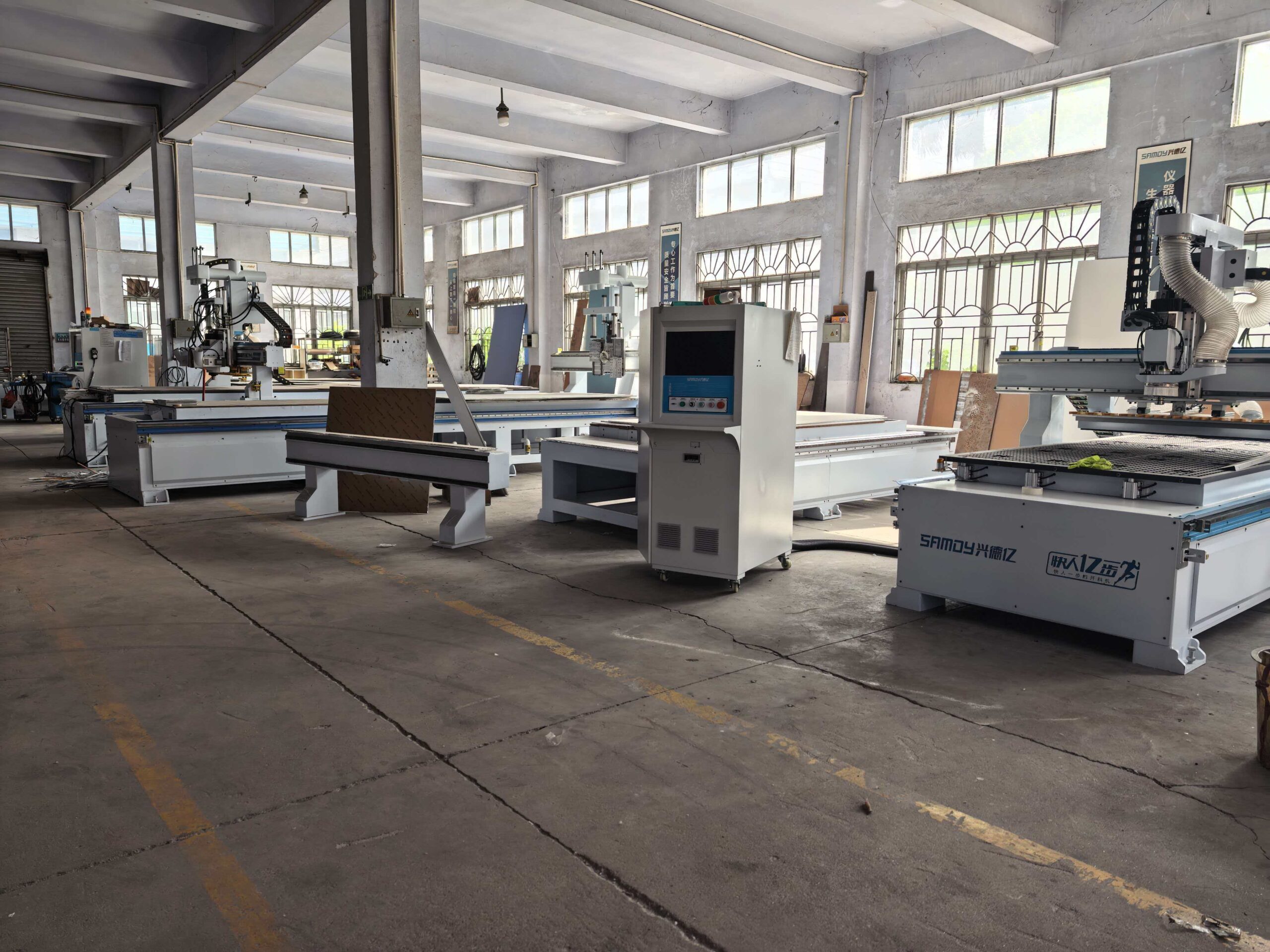

SAMDY FACTORY
