Motor Driven Polishing VS Ordinary Polishing: Differences for Edge Banding Machine
When purchasing automatic edge banding machines, most furniture factory buyers focus on premilling, gluing or corner rounding functions, yet easily overlook the polishing group. The polishing module directly determines the final visual effect of edge‑banded panels, removing glue residue and trimming marks to deliver clean, beautiful finished edges. Two mainstream polishing structures are widely adopted on the market: standard ordinary buffing assembly and high‑end independent motor‑driven polishing unit. Many customers cannot tell their practical differences, advantages and weaknesses in real‑world workshop production.
Standard Ordinary Buffing Assembly
This is the conventional polishing configuration fitted on most entry‑level and mid‑range automatic edge banders. Two polishing buffing wheels are mounted on shared transmission shafts, powered by one driving motor via belt transmission.
Working Principle
One main motor outputs power, and rotary force is transferred through belts to drive two cotton buffing wheels. As furniture panels pass through, the rotating buff wheels wipe off residual glue and minor surface marks left after scraping and fine trimming. It completes final surface finishing for edge‑band strips.
Advantages
1. Cost‑effective structure. Fewer independent motors lower overall machine cost, good for factories with budget‑sensitive standard‑order production.
2. Compact layout. Saves cabinet space inside the edge banding machine, simple mechanical layout for routine maintenance.
3. Satisfies basic production needs. It handles most common materials such as PVC, melamine edge banding tape for cabinet and wardrobe panels, achieving acceptable polishing quality for mass‑production standard furniture.
Disadvantages
1. Belt‑driven power loss. Long‑term continuous operation will cause belt wear, slip or loose tension. This leads to unstable buff‑wheel speed, resulting in inconsistent polishing effect, faint glue residue left on some panels.
2. Two buff wheels are linked. If one buff wheel hits foreign objects or gets blocked, it will affect the running status of the other wheel. Cannot adjust speed independently for upper and lower edge.
3. Limited adaptability for special materials. When processing high‑gloss edge banding tape, wood veneer or thick ABS tape, fixed speed easily causes scratching, burning marks or hazy surface on finished edges.
4. Higher wearing‑part consumption. Belts need periodic inspection and replacement in heavy‑duty workshop environments full of wood dust and glue mist.

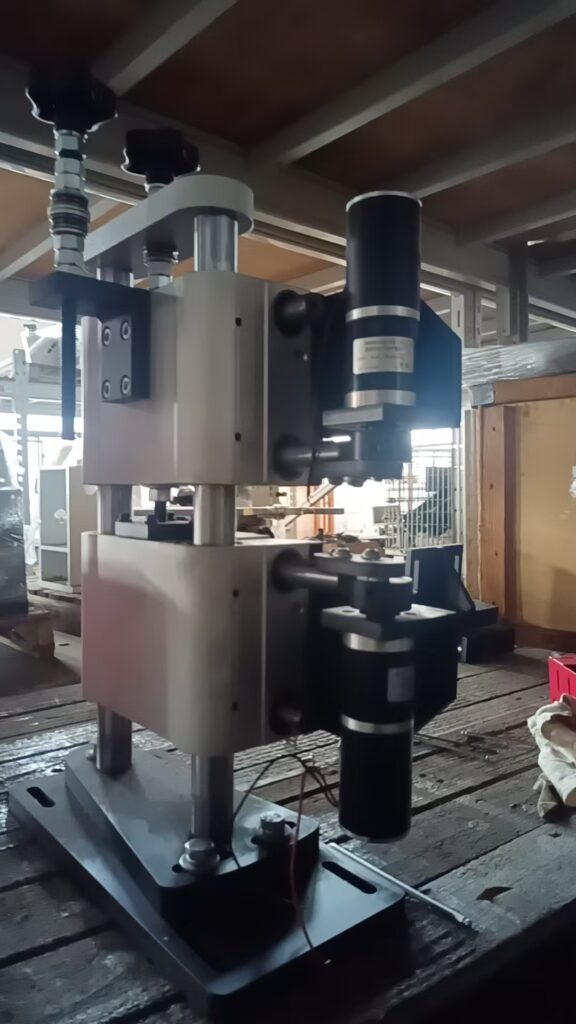

Motor Driven Polishing Unit
Each cotton buff wheel is equipped with its own dedicated servo motor. Upper and lower polishing heads are fully separated, with independent power supply, independent lifting and fine‑tuning structure. This is the upgraded polishing solution for high‑end edge banding machines.
Working Principle
Separate motors directly drive each buff wheel, no belt transmission. Operators can adjust rotation speed, pressure and height for upper and lower polishing heads individually. It adapts to diverse edge‑band materials and panel thickness, delivering high‑quality finishing results.
Advantages
1. Direct‑drive without belt slip. Each polishing head obtains stable power output. Even running non‑stop for long shifts, rotation speed remains constant, delivering consistent polishing quality batch after batch.
2. Independent parameter adjustment. Upper and lower polishing groups can set different speed and pressure. For example, high‑gloss veneer uses lower speed to avoid scratches; thick PVC tape uses higher speed to wipe off stubborn glue residue. It covers diversified custom‑order requirements.
3. Strong anti‑interference capability. Failure or blockage of one polishing head will not influence the other one. Production can keep running with simple adjustment, reducing unexpected downtime.
4. Superior finish quality for high‑end materials. Perfect for high‑gloss panels, wood veneer, ABS and special‑surface edge strips. Effectively avoid haze, scratch marks and over‑polishing, satisfying high‑end whole‑house customization standards.
Disadvantages
1. Higher manufacturing cost. Dual independent motors plus fine‑tuning mechanical assembly raise the total machine price, increasing investment for buyers.
2. Larger installation space. The whole unit occupies more internal space of edge banding machine, requiring precise assembly during manufacturing.
3. Slightly higher maintenance requirement. Multiple motors need regular dust cleaning, as glue mist and wood dust may accumulate on motor surfaces in long‑time production.
How to Choose According to Your Factory
1. Select standard polishing assembly:
If your factory mainly produces standard cabinet and wardrobe furniture, most orders use ordinary PVC and melamine edge banding tape, and you focus on controlling equipment investment, the ordinary buffing group can fully meet your daily output requirements. Remember to inspect and replace worn belts regularly.
2. Select independent motor‑driven polishing unit:
If you take many high‑end customization orders, frequently process high‑gloss boards, wood veneer and ABS edge strips, or run 24‑hour non‑stop heavy‑duty production. Independent motor‑driven polishing is worthy of extra investment. It reduces defective rate, avoids rework and improves finished‑product added value.
Many buyers ignore polishing configuration when comparing edge banding machines. The polishing group is the last process before finished panels come out. Even with excellent premilling, gluing and trimming effect, poor polishing will ruin the final appearance of furniture panels.
Conclusion
Both polishing structures can complete edge‑band finishing work, but they differ greatly in power transmission, adjustability and material compatibility. Standard polishing is economical and practical for conventional mass‑production. Independent motor‑driven polishing brings higher stability and flexibility, especially for high‑variety, high‑quality custom furniture projects.
When sourcing edge banding equipment, do not only compare machine appearance and basic modules. Clarify the polishing driving structure, and pick the correct solution matching your order types, so as to balance equipment cost and finished‑product quality.
