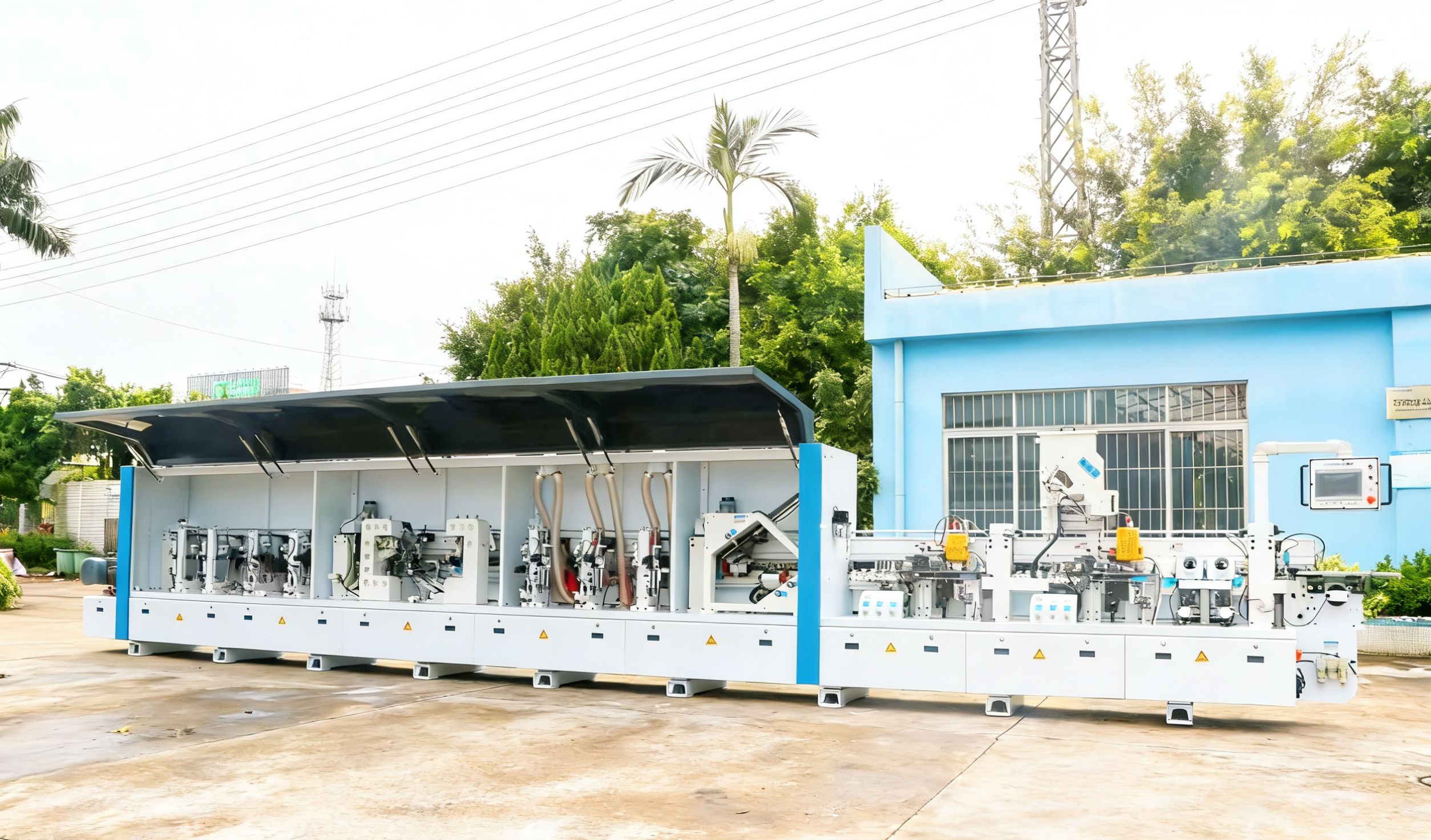

SV-968JL
High speed automatic edge bander machine is suitable for medium-density fiberboard, blockboard, solid wood boards, particleboard, polymer door panels, and plywood. They can process PVC strips, ABS strips, wood veneers, and solid wood strips.
It has high speed end cutting,4 corner rounding,can meet all production requirement for wood panels furniture.Its max working speed can reach 23m/min.
Basic configuration
Workpiece thickness: 10-60mm
Covering tape thickness: 0.3-3mm
Working air pressure: 0.7Mpa
Workinh speed:18-20-23m/min
Total power :23KW
Machine size:10500*1000*1600mm
Function
Separation-double motor pre-milling-Top gluing tank with fast melt tank-6 Pressing rollers-Top gluing tank with fast melt tank–6 Pressing rollers-Dual rail End cutting-Rough trimming-Fine trimming-Fine trimming-4 motors Corner rounding–pneumatic scraping-pneumatic scraping-cleaning-Buffing-Buffing(Automatic lifting)
share:
Description
1. High processing precision and stable quality: The dual-guide rail structure ensures a smooth cut surface, laying a solid foundation for subsequent processes; while the four-head tracking ensures that the chamfer size and curvature of each board are highly consistent, resulting in stable and reliable product quality.
2. High production efficiency and suitable for mass production: Both technologies are designed to support high-speed edge banding. They allow the equipment to maintain processing quality even at high speeds of 20-30 meters per minute, making it particularly suitable for large-volume production tasks with tight deadlines.
3. High degree of intelligence and convenient operation: Modern equipment typically supports one-click switching of edge banding tape thickness on a touchscreen. The four-head tracking cutter automatically adjusts to the preset position, eliminating the need for manual adjustments, saving both time and effort.
4. Beautiful finished products and comfortable feel: The most obvious advantage is the exquisite and beautiful finished products, especially for high-gloss boards, acrylic boards, and other high-end materials. It can minimize glue lines, achieving a “seamless” effect with smooth and delicate edges.
Product Advantages
Use Scenarios
• Mass-produced custom furniture factories: For panel furniture companies with large order volumes and frequent batches, this equipment can significantly improve production capacity and product consistency.
• High-gloss and acrylic panel processing: These materials have extremely high requirements for adhesive lines and surface finishes, and this model can well meet their processing needs.
• High-end office furniture, cabinets, and wardrobe doors: Areas with higher requirements for product appearance and feel, especially door panels requiring fine chamfering.
• Automated production lines: Due to its stability and efficiency, it is often used as the core equipment in automated production lines, working in conjunction with automatic feeding and unloading systems, rotary lines, etc., to achieve “unmanned factory” operation.
Machine advantage
1.Taiwan Shilin PLC,Taiwan Shilin Inveter ,Taiwan Shilin touch screen and Schneider contactor to ensure machine working stable.
2.Pressing rollers with flat knife,to make more perfect edge banding surface.
3.Heavy duty machine body to ensure machine is dural.
4.Good price.
5.PUR gluing and pneumatic adjuting cutter tooling are optional.
Full Automatic PVC Edge Banding Machine SV-468J Touch Screen
Taiwan China Shilin Brand
PLC and Inveter
Taiwan China Shilin Brand
Famous Brand Contactor
Franch Schneider brand
Reliability & Durability & Safety.
Dual Motors Pre-milling
2.2kw x2 pcs
Press Rollers With Scraper
6 pressing rollers
It makes the pressing more perfect,rubber roller will make pressing more even.
Double Trimming
Rough trimming & fine trimming
Corner Rounding
4 heads corner rounding
Four motors for arc chamfering, faster speed and better effect. Lighter movement to prevent damage to the board.
Scraping and buffing
Scraping and dual motor buffing
After trimming, scrape off the residue on the board and edge band again to ensure that the board and edge band are smooth and clean, making the edge band effect smoother. The polishing and waxing device effectively solves the problem of whitening of the edge band, making the edge band effect more perfect.
Edge Banding Effect
0.4-3MM is available
Good edge banding effects make your furniture better.
Dual gluing tank
Automatic change tank
Its dual-glue-pot design allows for seamless switching of glue colors, easily adapting to different colored edge banding tapes and meeting diverse design needs.
Top type gluing tank is suitable for processing EVA glue and PUR glue.

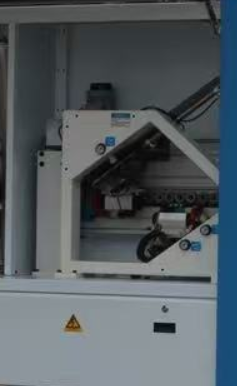

Dual rail end cutting
High speed working
It features independent linear guides for both the front and rear saw blades. This allows the two blades to operate independently, quickly, and precisely without interference. The direct benefits are: not only does it result in a smoother, flatter cut surface, completely eliminating trailing, but it also effectively shortens the distance between boards, creating conditions for high-speed edge banding.
