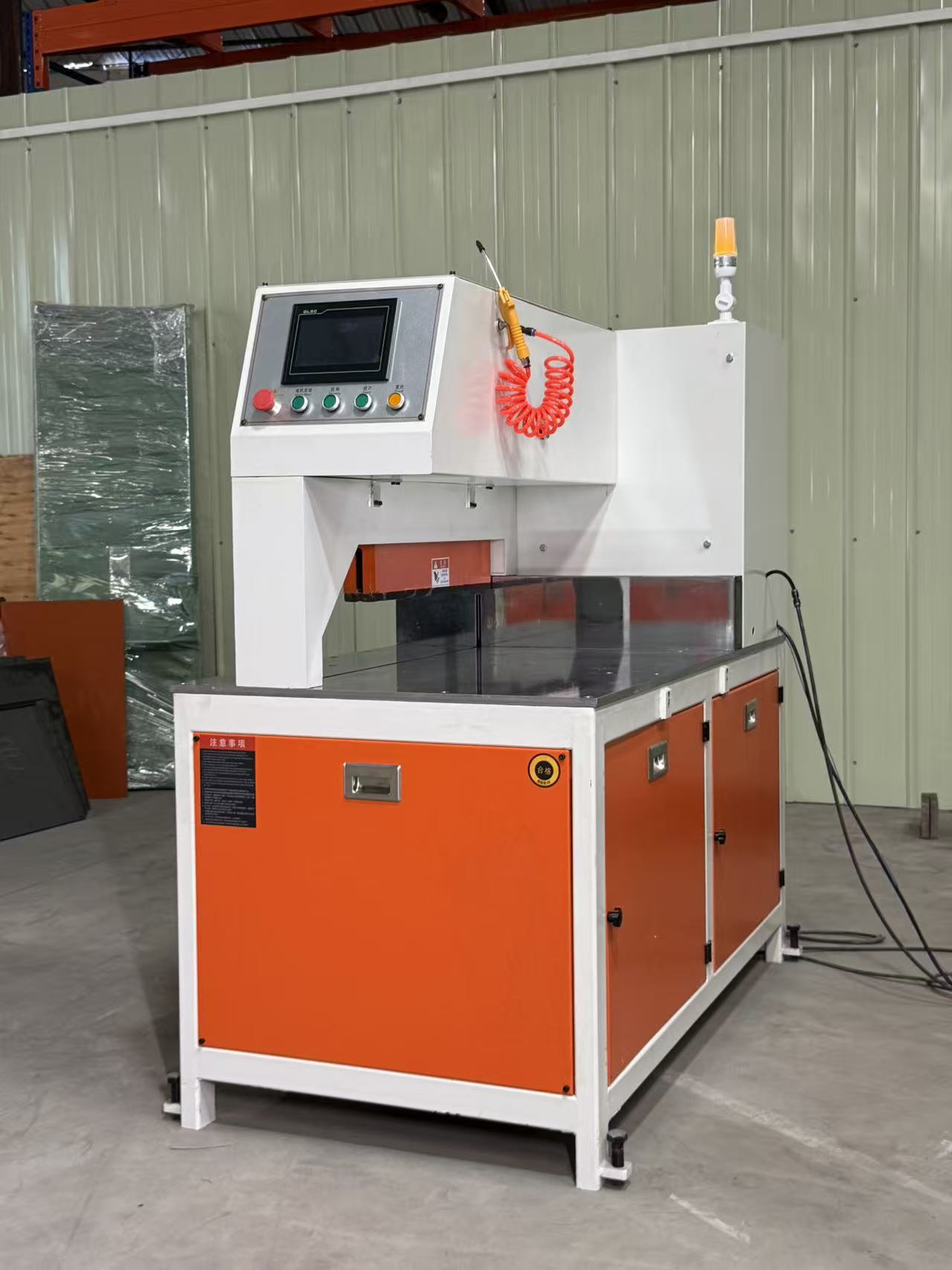

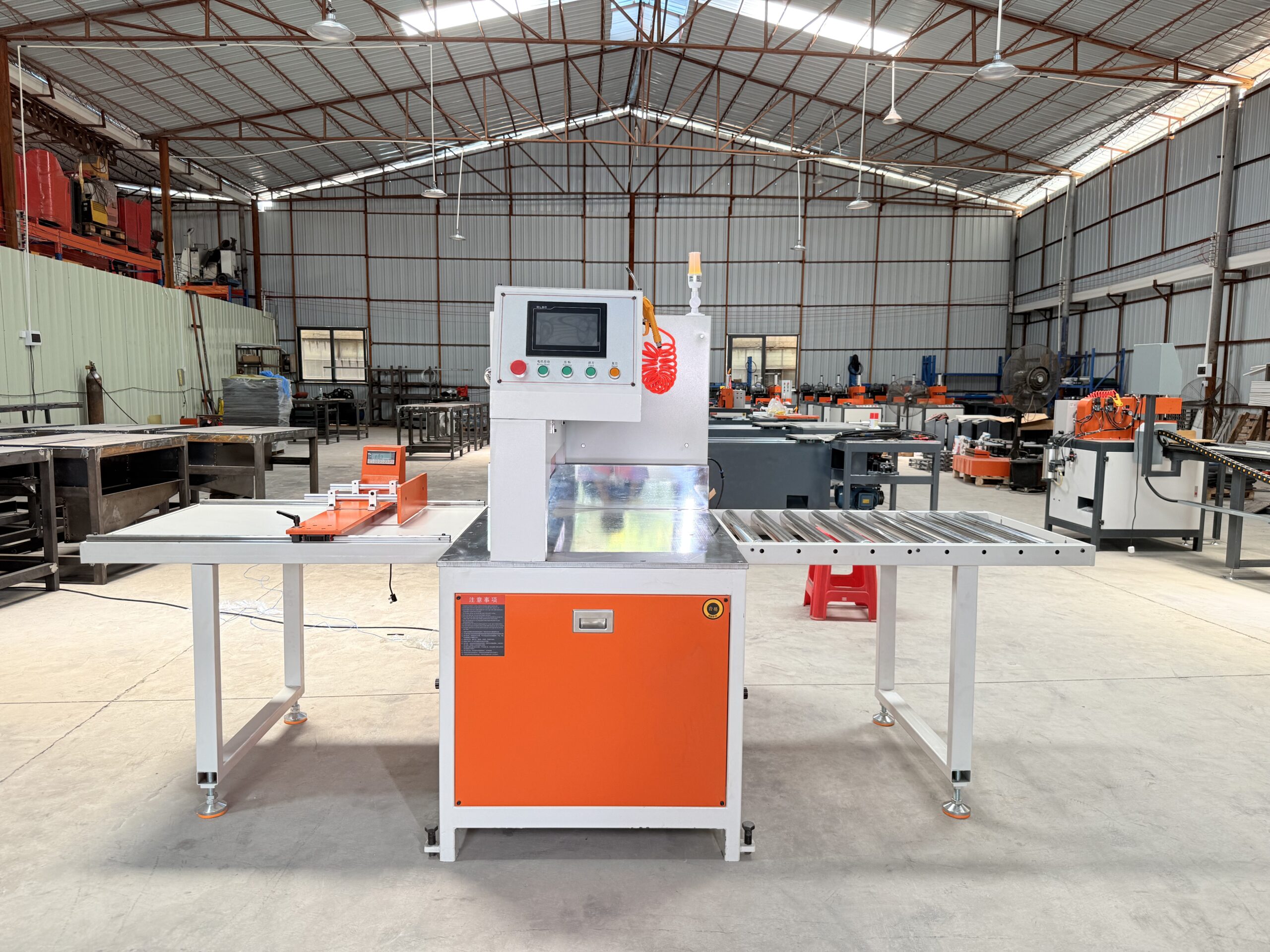

MJ-305
Acrylic Cutting Machine is designed for fixed-size cutting of acrylic sheet, PVC board, PS and PC plastic panels. It adopts CNC servo feeding system to realize accurate length blanking, only straight cutting available. It delivers smooth cutting edges without scorching or burrs, no secondary polishing required. Well suited for mass production & small-batch custom processing of advertising signs, display racks, craft ornaments and electronic plastic parts.
Basic configuration
| Parameter/Configuration Name | Specific Specifications |
| Product Model | MJ–305 |
| Operating Voltage | 380V |
| Operating Pressure | 0.6~0.8MPA |
| Servo Motor | 4KW |
| Servo Feed | Infinitely Adjustable (Max. Width: 800) |
| Rotational Speed | frequency conversion |
| Maximum Cutting Range | 65x800mm |
| Countertop Width | 800x1300mm |
| Maximum Saw Blade Size | 305 20x30x120T |
| Cutting Precision | 1 micron |
| Linear Guide | 25mmx25mm |
| Applicable Materials | Acrylic |
|
High Core Functionality |
Designed specifically for cutting acrylic sheets, it features smooth hydraulic feed, adjustable variable-frequency speed control, and precise cutting capabilities, producing a smooth cut surface free from chipping or burning. |
| Overall Dimensions | 1370mmx840mmx1460mm |
| Net Weight of the Complete Unit | 400kg |
| After-Sales Service Policy | One-Year Machine Warranty |
Function
Cutting Acrylic panels
share:
Description
1.Acrylic cutting machine adopts a high-precision servo feeding system and intuitive touch screen control panel. With stable servo transmission and a solid integrated machine frame, it maintains low vibration during cutting, ensuring high dimensional accuracy and consistent finished product size for acrylic, PVC, PS and PC plastic sheets.
2.Equipped with circulating liquid cooling system, the machine continuously lubricates saw blade during cutting. After cutting finished, blade automatically retracts, effectively avoiding edge scorch, yellowing and burrs on acrylic cross-section, delivering smooth cutting surface with no need for secondary polishing.
3.The machine features flexible manual & automatic dual working modes. Manual mode is available for new product sampling and sporadic small orders; auto mode works for long-time continuous mass production, reducing raw material loss and realizing cost-saving high-efficiency processing.
4.The machine features flexible manual & automatic dual working modes. Manual mode is available for new product sampling and sporadic small orders; auto mode works for long-time continuous mass production, reducing raw material loss and realizing cost-saving high-efficiency processing.
5.If you need to cut oversized thick acrylic sheets, you can choose our large-format CNC cutting machine for thick plate processing.
Use Scenarios
Applications
1. Advertising and Signage Industry: Cut-to-size processing for illuminated letter backings, billboards, acrylic signs, and wayfinding signage.
2. Retail display accessories: transparent display boxes, shelf dividers, display stand baffles, and acrylic photo frame blanks.
3. Electronic instrument components: transparent equipment viewing windows, instrument protective panels, and cut-to-size electrical insulation plastic parts.
4. Craft Gifts & Home Decor: Acrylic ornaments, decorative panels, bathroom accessories, and processing of cultural and creative crafts.
5. Advertising packaging accessories: PVC boards, two-color nameplates, and small decorative parts made of thin MDF.
Application Scenarios
1. Advertising fabrication shops: handling sporadic orders, small-scale cutting of advertising signage, and on-site processing of supplementary materials.
2. Small-scale acrylic processing workshop: standardized mass production of signage and display products, with continuous, long-term material cutting operations.
3. Craft Workshops: Prototyping of new products; custom cutting of small-batch, irregularly shaped acrylic items.
4. Electronic Accessories Workshop: Small-batch material cutting for plastic instrument components; precision machining of protective panels.
5. Small-scale packaging/decoration workshops: Daily cutting of PVC and dual-color decorative sheets; multi-material cutting operations.
Machine advantage
1. Ultra-high cutting precision: Machining accuracy reaches 0.01 mm (10 microns). Featuring a servo closed-loop feed system and high-precision linear guides, it ensures consistent dimensions across batches and seamless assembly, making it ideal for producing high-end, precision acrylic components.
2. Variable frequency speed control to prevent edge burning: The spindle speed can be adjusted as needed. For thin plates, low speed prevents heat melting and blackening, while high speed cuts through thick plates in one cut, eliminating acrylic charring, burrs, and chipping problems at the source, resulting in a clear cut surface without black edges.
3. Pneumatic hold-down prevents shifting: Automatic pneumatic clamping combined with cushioned, constant-speed feeding eliminates slippage or misalignment caused by manual handling; this prevents cracking or edge chipping when processing brittle acrylic, significantly increasing the yield rate.
4. Flexible dual-operation modes: Switch between manual and automatic modes with a single touch. Manual mode is ideal for prototyping and small-batch, non-standard orders, while automatic mode utilizes preset parameters for unattended mass production; the system is easy for beginners to master and allows a single operator to manage the entire workflow.

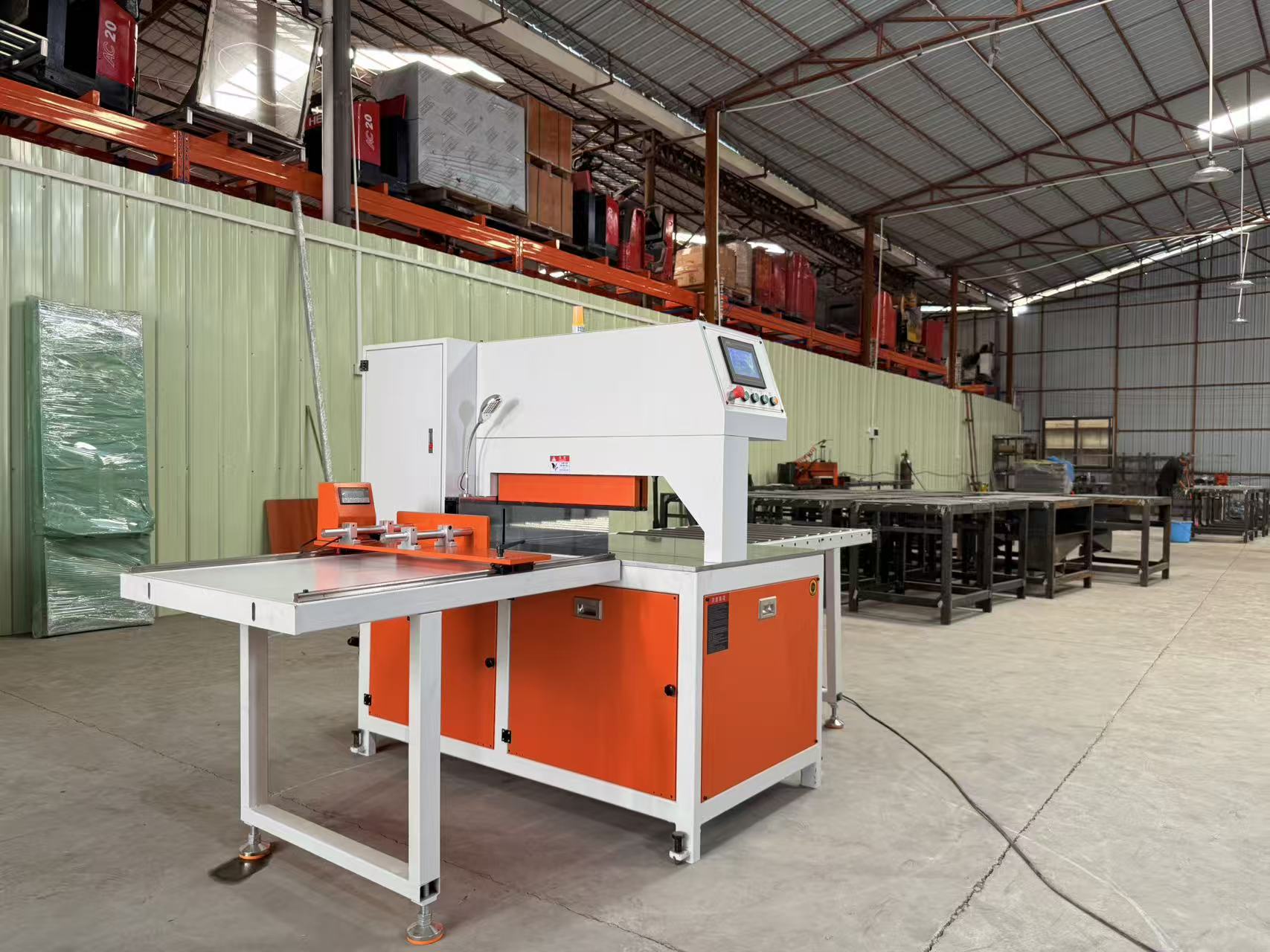

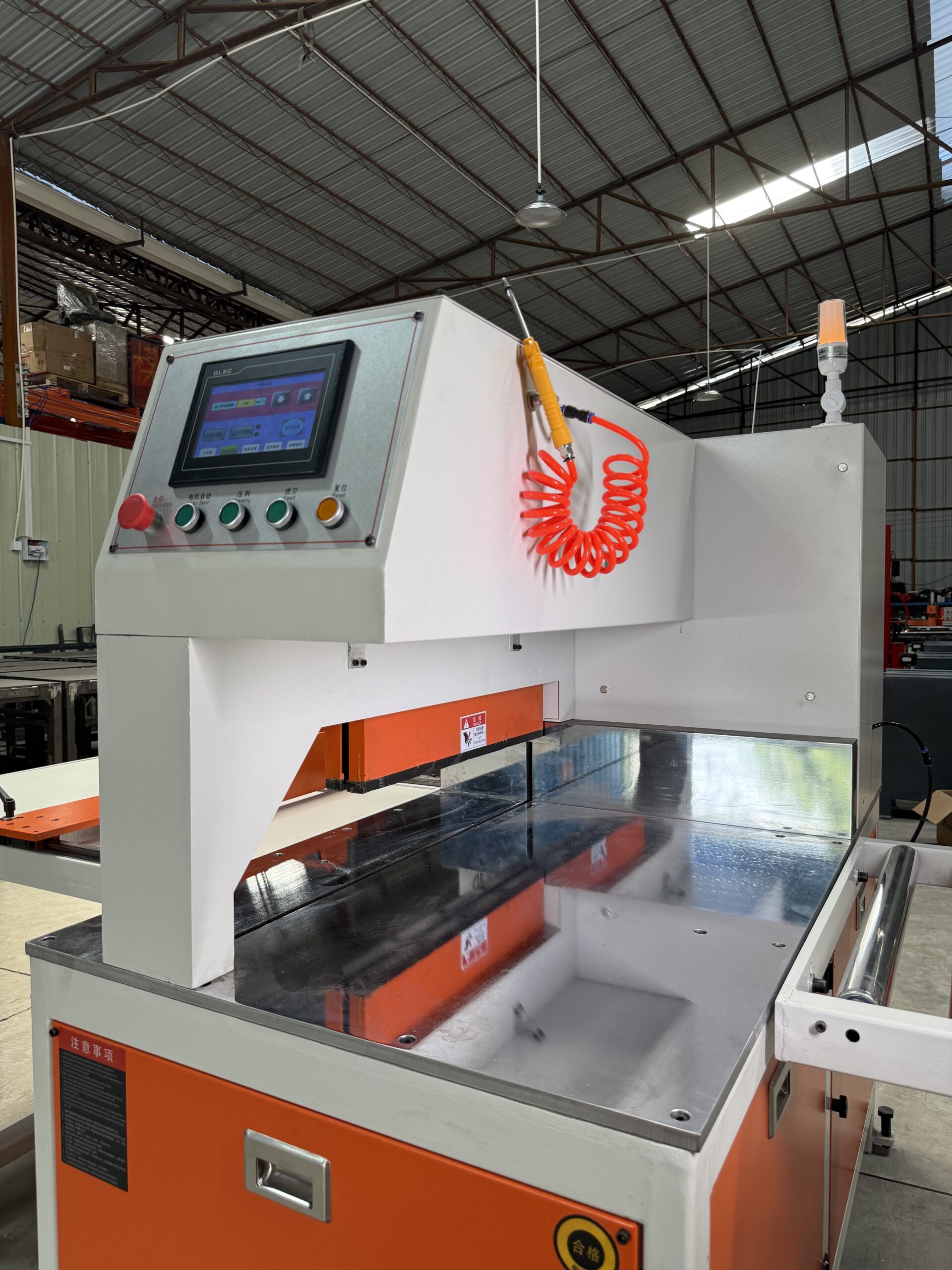

Thickened and weighted machine body
Vibration-free, No-deformation Design for Consistent Accuracy
It adopts a thickened and heavy-duty one-piece molded frame design, combined with a reinforced load-bearing base and anti-vibration structure. The machine body is made of thick and solid materials, the whole machine has sufficient weight, and the operation stability is extremely strong.

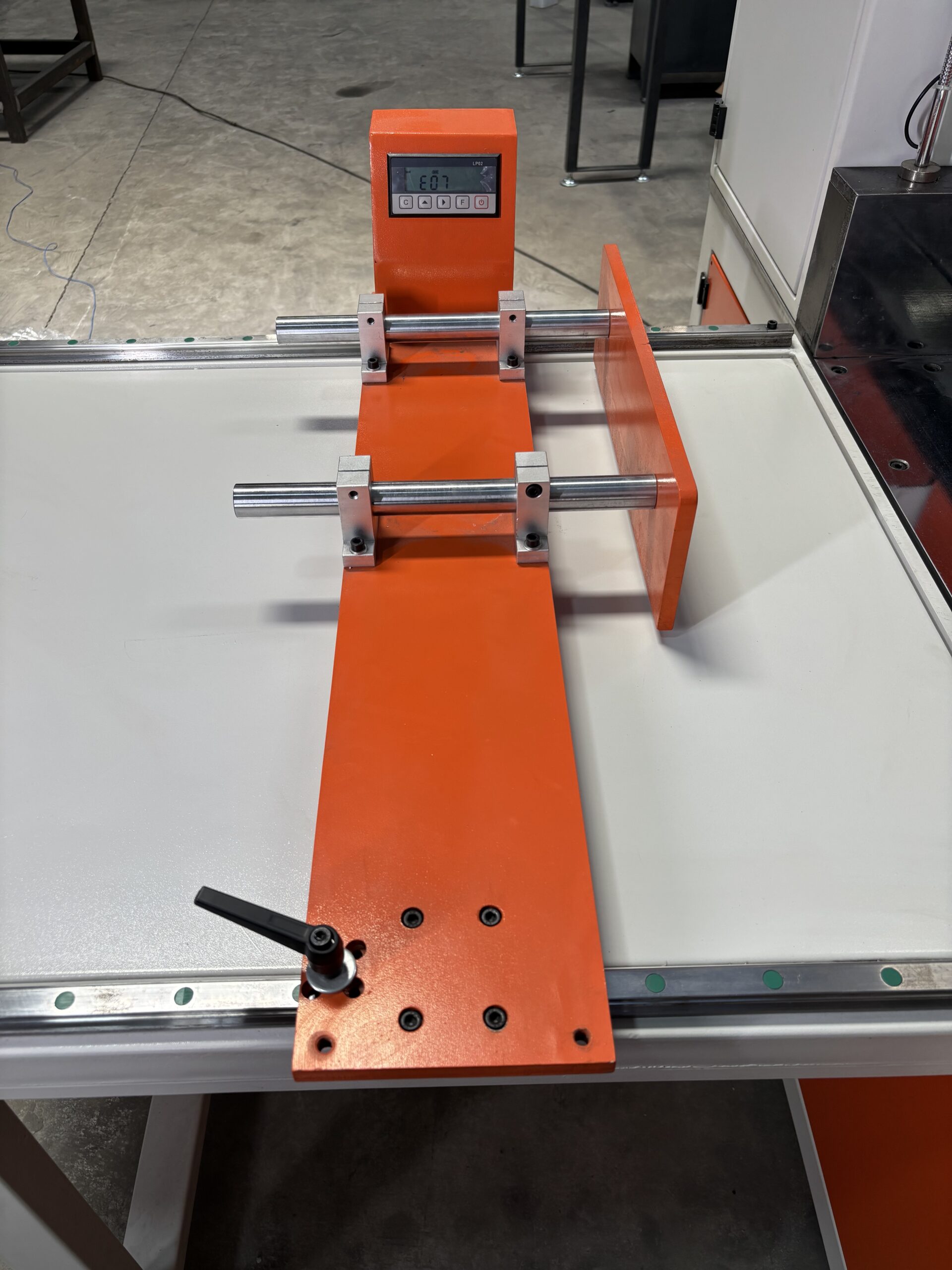

Digital Display Material Stop Fence
High-precision Digital Positioning System
1.This machine is equipped with a digital display material stop fence, which allows quick and accurate adjustment of cutting dimensions
2.Secure the fence firmly during cutting operations to prevent material shifting, thereby enhancing cutting precision and operational efficiency.

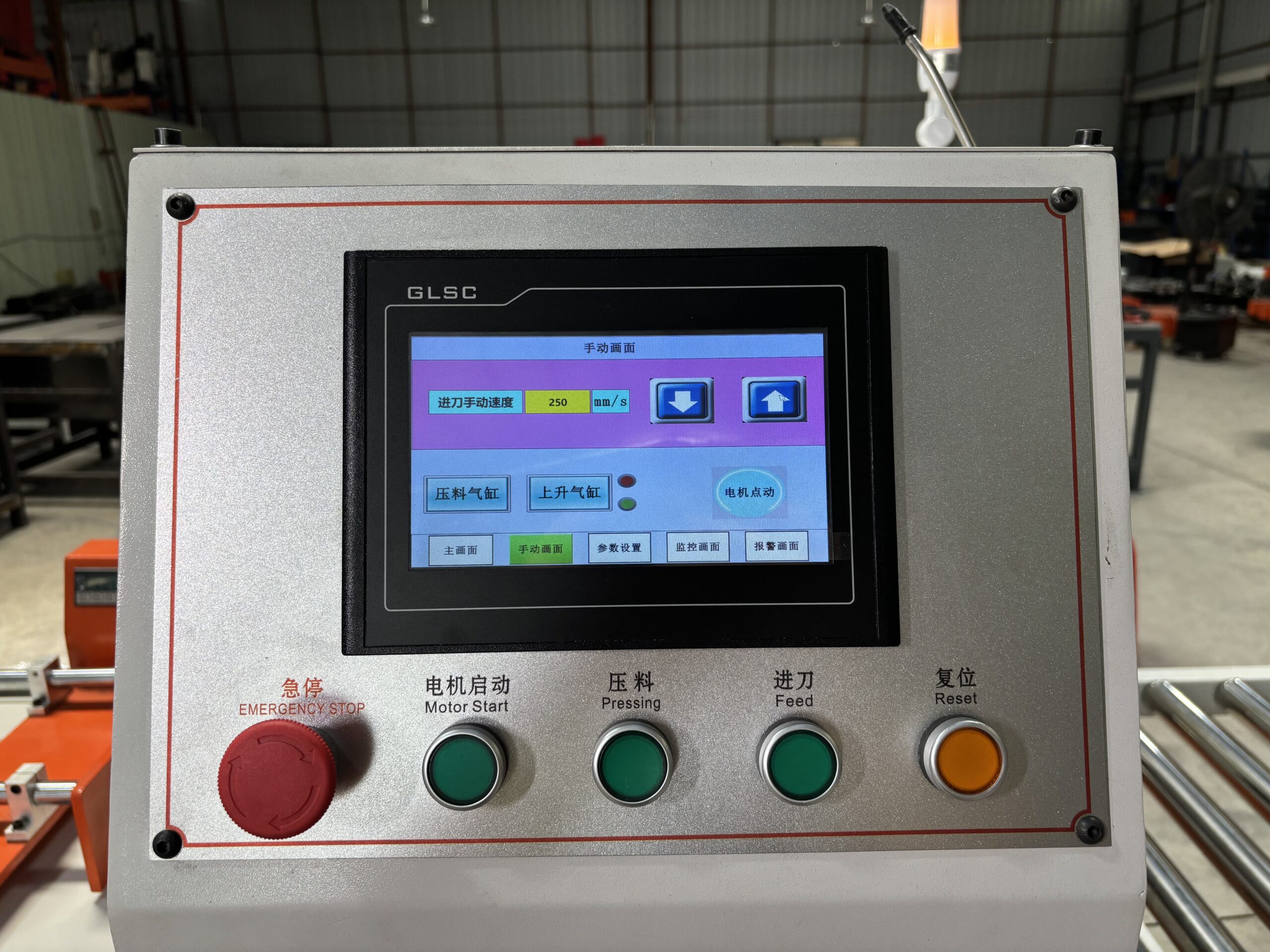

Touch Screen
User-friendly Operation with Full Process Control
1.equipped with a touch screen control system, supporting both automatic and manual operation modes.
2. easily set parameters like feed speed, cutting depth and pressing force directly on the screen. The intuitive interface allows you to switch between main screen, manual control, parameter setting, monitoring and alarm functions with just one tap.
3.It simplified operations, reduced employee training time, and supported stable, error-free daily production.

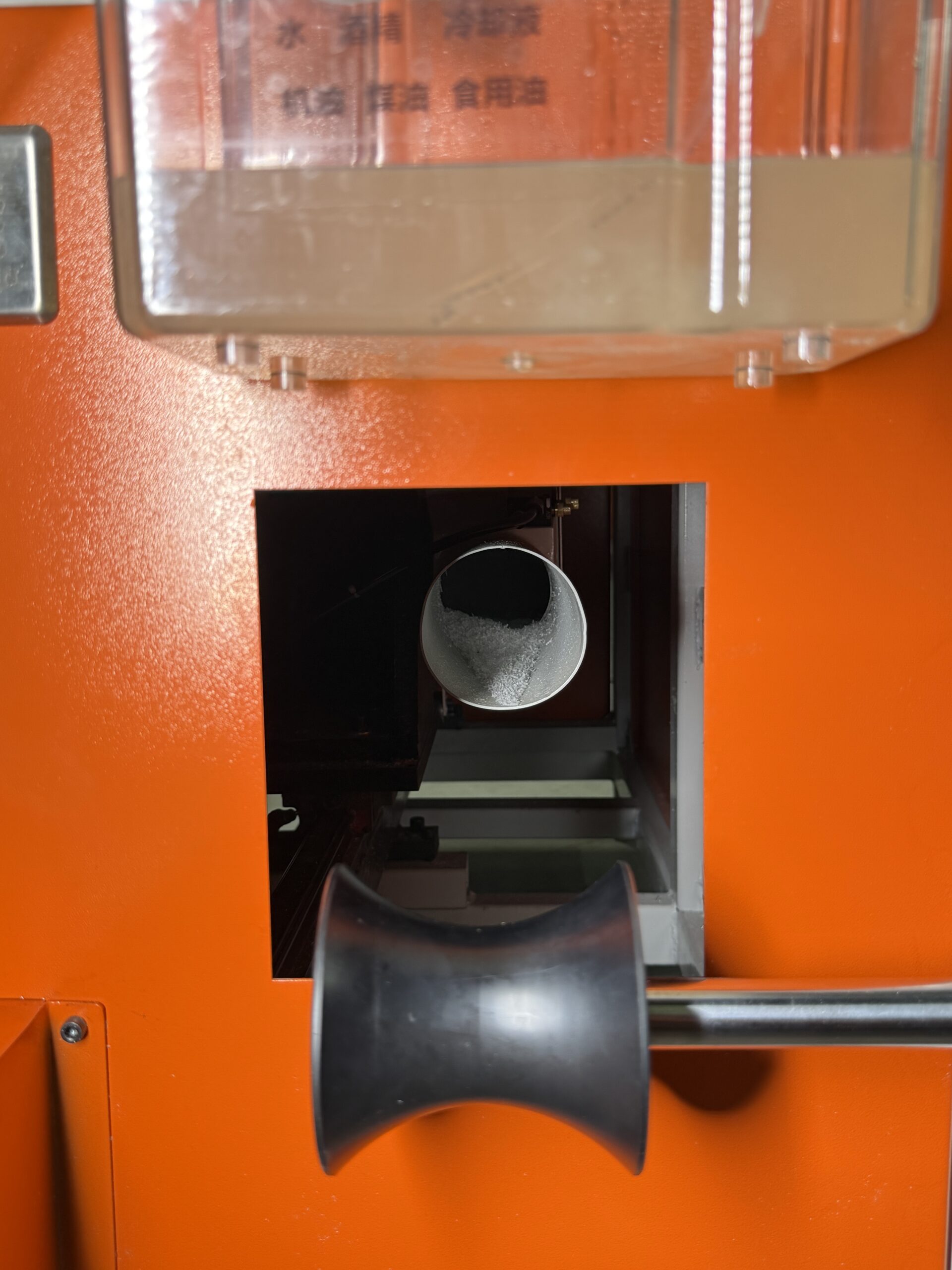

Chip Removal System
Low-noise, Dust-free Cutting with Automatic Lubrication
