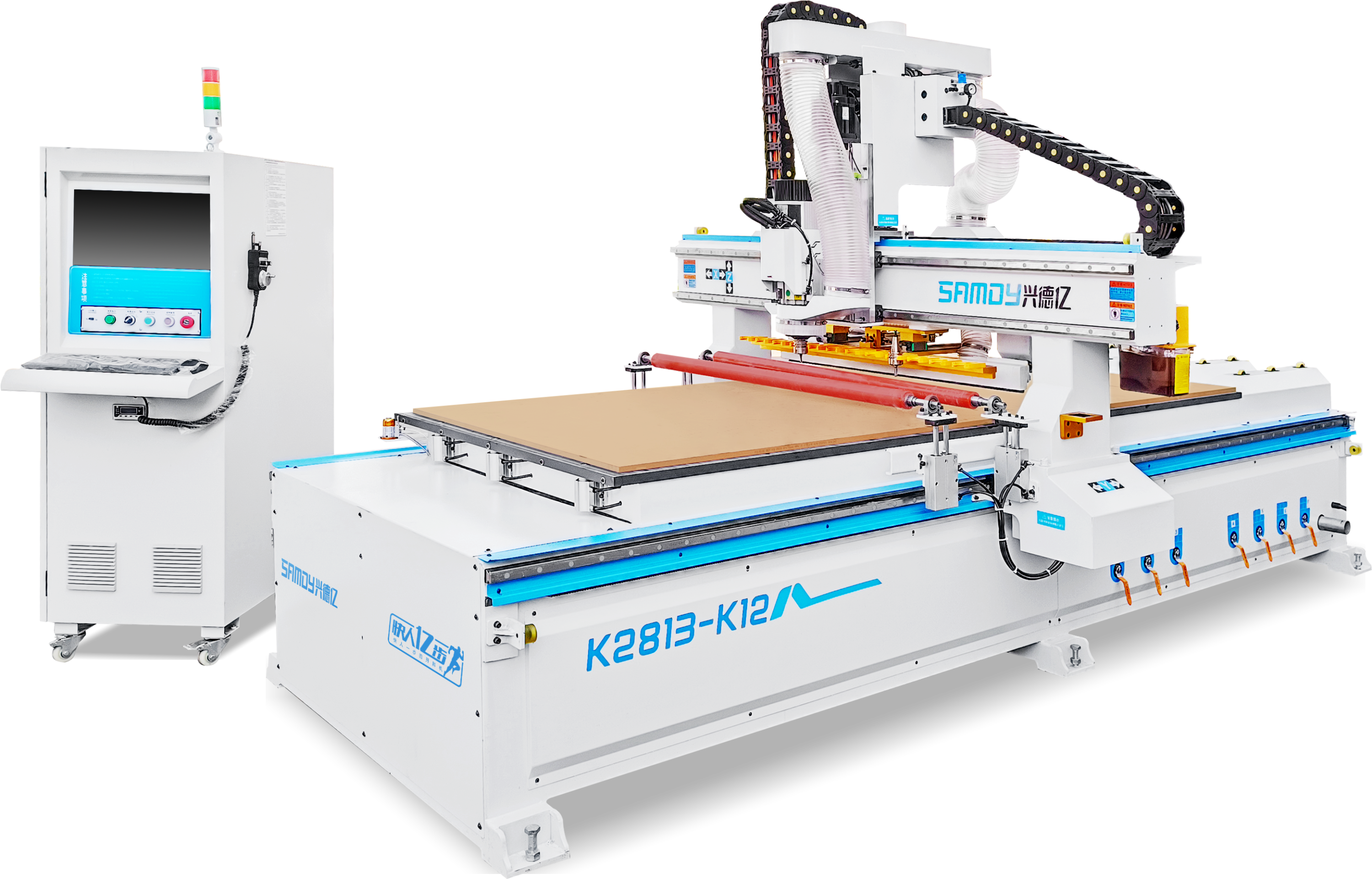

K2813-K12
CNC router machine K2813-K12 With Autoamtic Change Cutter is for processing wood panel,plastics panel,acrylic sheet,aluminum honeycomb panel etc. It operates based on NC code production data, allowing for precise and automated cutting, carving, and engraving. CNC routers are widely used in packaging industry, woodworking industry, furniture industry and advertising industry due to their accuracy and efficiency.12 cutter tools can meet most of your production requirements, it is very suitable for custom-made furniture production.
Basic configuration
Control system Baoyuan Taiwan
Servo Leadshine 1.5KW
Working size 2400*1200mm
Total power 25KW
Spindle 1 pcs
Spindle motor 9KW,MAX24000r/min
Water vacuum pump 7.5KW
Voltage 380V/50Hz
Air pressure 0.7Mpa
Machine weight 2000kg
Machine size 4000*2000*2200mm
Function
Single working table
Automatic change cutter
12 tool cutters
share:
Description
CNC Router Machine Detail:
1. Heavy-duty machine body to ensure stable machine operation, with annealing treatment to ensure durability, perfect for long-term usage in woodworking CNC machines.
2. The guide rail uses Qinsheng 30 square guide rail, which has high hardness, large load-bearing force, stable operation, high precision, and long life, ideal for 4×8 CNC nesting applications.
3. Japan Nidec-Shimpo reducer ensures stable performance and high precision, providing excellent results for both industrial CNC routers and CNC router machines.
4. Equipped with a BST 11KW frequency converter to optimize power efficiency and ensure smooth operation across various CNC woodworking machines.
5. Optional saw blade device to expand machine versatility, enhancing the CNC router machine’s capabilities for more complex cutting tasks.
Use Scenarios
Furniture Manufacturing
The CNC Router K2813-K12 is perfect for furniture manufacturing where high-volume, precise cuts are essential. With the ability to process wood panels, MDF, plywood, and composite materials, the machine excels in producing components for cabinets, tables, and other custom furniture items. The automatic tool changer streamlines the production process, reducing operator intervention and increasing efficiency.
Packaging Industry
For the packaging industry, where precision and speed are crucial, the K2813-K12 provides the flexibility to work with various materials, including cardboard, plastics, and wooden panels. It’s ideal for creating intricate designs and achieving accurate cuts for packaging applications, such as custom boxes and retail displays.
Advertising and Signage Production
The CNC Router machine K2813-K12 is widely used in the signage production industry for crafting custom signs, promotional displays, and architectural elements. Its 4×8 CNC router capabilities allow it to process large sheets of materials, while the automatic tool changer makes it easier to switch between different tools for cutting, engraving, and finishing tasks.
Aerospace and Automotive Applications
The K2813-K12 can also be used for aerospace and automotive component manufacturing, especially for precision machining of lightweight materials like aluminum honeycomb panels. Its high-speed spindle and high-precision control system make it an ideal choice for CNC router for aluminum applications in the automotive and aerospace industries.
Custom Fabrication and Prototyping
The CNC Samdy K2813-K12 offers flexibility for custom fabrication and prototyping tasks. Whether it’s creating one-off custom parts or producing small-batch orders, the K2813-K12 provides the precision needed for complex designs. Its CNC machine for woodworking capabilities allow it to work with various materials to create prototypes for industrial and consumer applications.
Machine advantage
Heavy-Duty Machine Body
Ensures stability during operation. The annealing treatment enhances the machine’s durability, allowing it to withstand extended use in demanding environments.
Qinsheng 30 Square Guide Rails
With high hardness and large load-bearing capacity, these guide rails provide stable operation, high precision, and long life.
Japan Nidec-Shimpo Reducer
Known for its stable performance and high precision, the Nidec-Shimpo reducer ensures the machine delivers consistent results.
BST 6KW Frequency Converter
Offers efficient control of the machine’s power output, optimizing energy use and improving performance.
Optional Saw Blade Device
For enhanced versatility, the saw blade device can be added to accommodate more complex cutting tasks, making it adaptable for various materials and applications.
CNC router PC Screen
Taiwan baoyuan system
Esay operation.Industrial computer is also optional.
CNC Router Electric parts
Good band
Driver:
Use Leadshine servo, matching the same brand of
motor use.
Frequency converter:
Use BST 6 KW frequency converter.
Contactor ：
Schneider
Electronic hand wheel pulse generator
Easy commissioning
Zero correction and signal segmentation.
Vacuum adsorption table controller
8 pcs
Vacuum adsorption table is controlled separately,to ensure when process small workingpiece stable.
Gear Rack
Good quality and dural
The baffle is installed above the rack to effectively prevent dust and
debris from getting stuck on the rack, and to prevent the reducer from
shaking resulting in wavy patterns and other phenomena.
Cutter tools row
12 cutters
12 cutters in straight line tool package automatically switch to use, suitable for a variety of processing needs, convenient and fast.
Positioning cylinder
Precise positioning
The whole machine uses seven positioning cylinders to facilitate the positioning of large or small plates.
Heavy Duty Machine body
20mm thick
The table top and the sides of the machine body are reinforced with 20mm thick cast iron in addition to the original structure.
CNC nesting machine K2813-K12 contains automatic loading lifting and unloading belt table.
